Servers Optimized for Maximum Capacity or Highest Throughput Performance

Serverware® offers a comprehensive portfolio of all-flash NVMe Server and Storage systems that support the latest Intel® Xeon® Scalable processors. The portfolio provides three fundamental design choices for customers,

  • Throughput/IOPS optimized (e.g. 1U 10 NVMe)
  • Balanced Throughput and Capacity (e.g. 2U 24 NVMe)
  • Capacity Optimized (e.g. 2U 48 NVMe)

The all-flash NVMe servers and storage systems deliver a massive improvement in storage performance over systems based on traditional hard disk drives (HDD) and solid state drives (SSD) using legacy storage interfaces including SAS3 and SATA3. The new servers are also more power efficient than the traditional systems and have hot-plug capability for improved serviceability and availability.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Memory

Up to 24 DIMM slots, up to 6TB DDR4 memory per node, Intel® Optane™ DC persistent memory
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Form Factor

1U and 2U Rackmount
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Power

Platinum and Titanium Level (96%) Efficiency
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Management

Open Industry Standard IPMI, Redfish APIs, Rack Scale Management

Storage Enclosures Available for Easy Capacity Expansion

All-flash NVMe storage enclosures bring additional flexibility and capacity expansion to enable advanced deployment scenarios. For example, deploy all NVMe enclosures with Serverware® 2U 4-node and NVMe over Fabric capable NICs to create extremely high performance composable infrastructures
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Processors

Dual or single Intel® Xeon® Scalable processor up to 205W TDP
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Drives

Up to 48x 2.5″ NVMe/SAS3/SATA3 drives
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Input/Output

Up to 3 PCI-E expansion slots with flexible on-board SIOM networking options
NVIDIA® Quadro®, Tesla®, ServerWare® is SuperMicro® distributor, Asus® Server Distributor, Intel®, supermicro®,

Services

Nationwide Services

Mission Critical All-Flash Solutions for Dual-Port NVMe SSDs

Optimized for mission-critical, enterprise-level storage applications, Serverware® innovative SBB (Storage Bridge Bay) features a fully redundant, fault-tolerant “Cluster-in-a-box” system. The Super SBB is designed for dual-port NVMe/SAS drives and provides hot-swappable canisters for all active components. With heartbeat and data connection between the redundant nodes via the midplane, if one node fails, the standby node takes over and gain access to all drives (both controllers can also work as active-active mode), and keeps the system up and running. Storage management software is the key to enable this feature,

All-Flash NVMe Highest Performing Storage Solutions for Advanced Computing

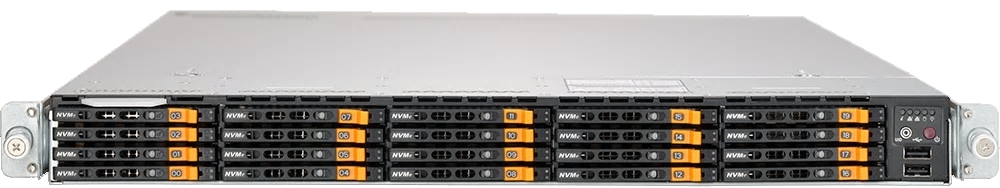

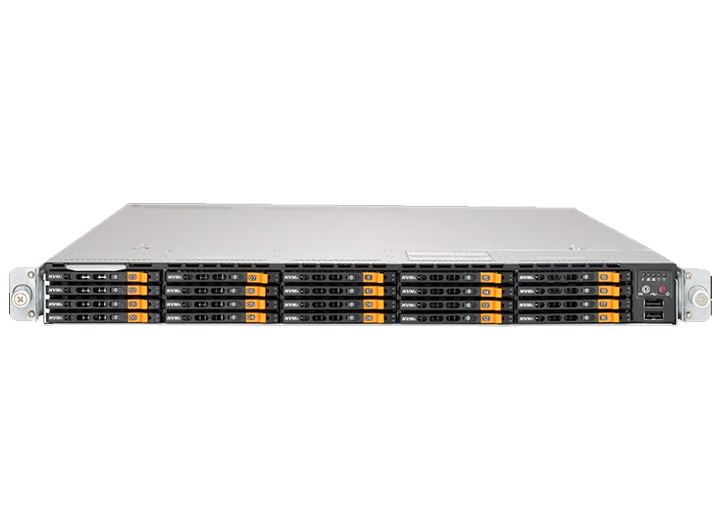

The ServerWare® SF10 NVME All Flash Server

The ServerWare® SF10 Servers Optimized for Maximum Capacity or Highest Throughput Performance, Storage Enclosures Available for Easy Capacity Expansion and Mission Critical All-Flash Solutions for Dual-Port NVMe SSDs in a short depth 1U form factor.

NVIDIA® Quadro®, Tesla®, ServerWare® is SuperMicro® distributor, Asus® Server Distributor, Intel®, supermicro®,
ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

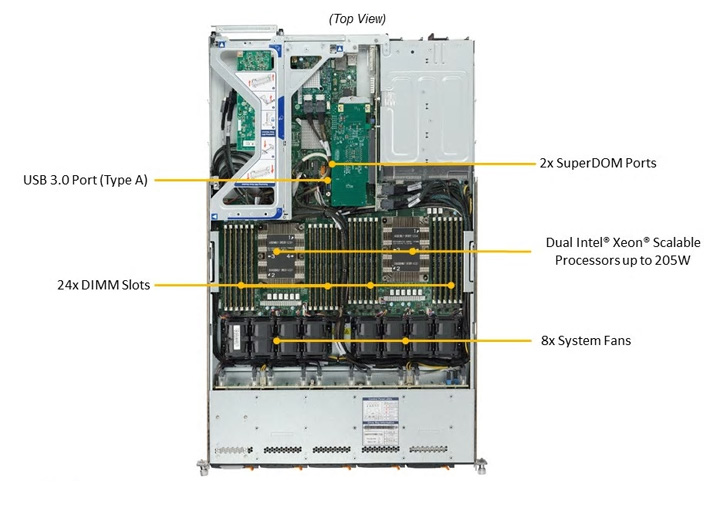

The ServerWare® SF10 NVME All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rack Server
706mm x 437mm x 43mm

MB Size (WxL)

43.18cm x 42.67cm

Processor

Dual Socket P (LGA 3647) support
2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake

Chipset

Intel® C621 chipset

SAS Controller

Optional
LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory



Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from SERVERWARE

†† Cascade Lake only. Contact your SERVERWARE sales rep for more info.

Drive Bay

Hot-swap
  • 20 Hot-swap 2.5″ 7mm drive bays
  • 20 NVMe (CPU1: 10 NVMe, CPU2: 8 NVMe + 2 NVMe/SATA/SAS hybrid)
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

Onboard Storage Device

Intel® C621 controller for 6 SATA3 (6 Gbps) ports;
RAID 0,1,5,10

HDD Backplane

expandable backplane

PCIe Expansion Slot

2 PCI-E 3.0 x8 slots (FH, FL)

For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available.
For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available.

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers

PCI Interface

PCI Express* 3.0

Network Controllers

2 25GbE SFP28 ports via AOC-URN4-M2TS (Mellanox ConnectX-4 Lx EN)

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500 BMC

Integrated Graphics

BMC integrated Aspeed AST2500

Front I/O

Buttons
  • Power On/Off button
  • System UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • UID LED

Power Supply Unit

1600W Redundant Power Supplies
Titanium Level (96%)

Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

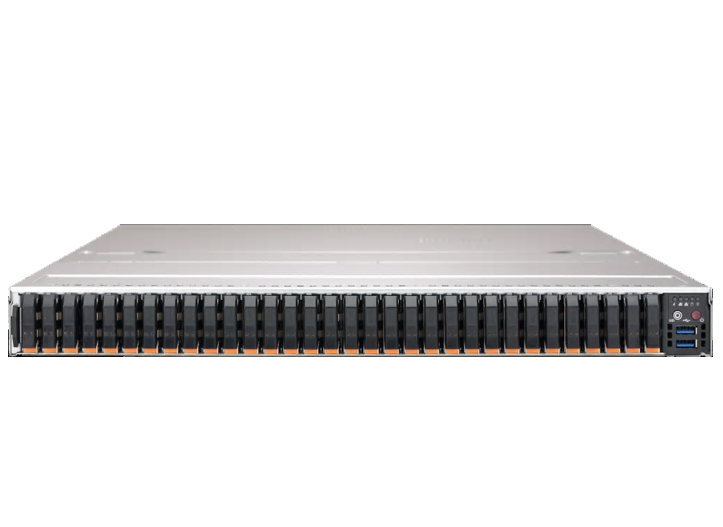

The ServerWare® SF11 NF1 All Flash Server

The ServerWare® SF11 Servers Optimized for Virtualization, Cloud Computing, High Density Enterprise Server, Software Defined Storage that requires true high performance and capacity in a 1U form factor. The serverware SF11 is built to support the next generation SSD.

About NF1.

The NF1 SSD features a brand new, high-performance controller that supports the NVMe 1.3 protocol and PCIe 3.0 interface, delivering sequential read speeds of 3,100 megabytes per second (MB/s) and write speeds of 2,000MB/s. These speeds are more than five times and three times that of a typical SATA SSD, respectively. Random speeds come in at 500,000 IOPS for read operations and 50,000 IOPS for writes. Utilizing the new NF1 storage solution, an enterprise server system can perform over one million IOPS in a 2U rack space, significantly enhancing the return on investment for next-generation large-scale data centers. The SSD also includes a 12GB LPDDR4 DRAM to enable faster and more energy-efficient data processing.

To ensure long-term data reliability, the NF1 NVMe SSD has been designed with an endurance level of 1.3 drive write per day (DWPD), which guarantees writing an entire 8TB of data 1.3 times a day over its warranty period.

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
NVIDIA® Quadro®, Tesla®, ServerWare® is SuperMicro® distributor, Asus® Server Distributor, Intel®, supermicro®,

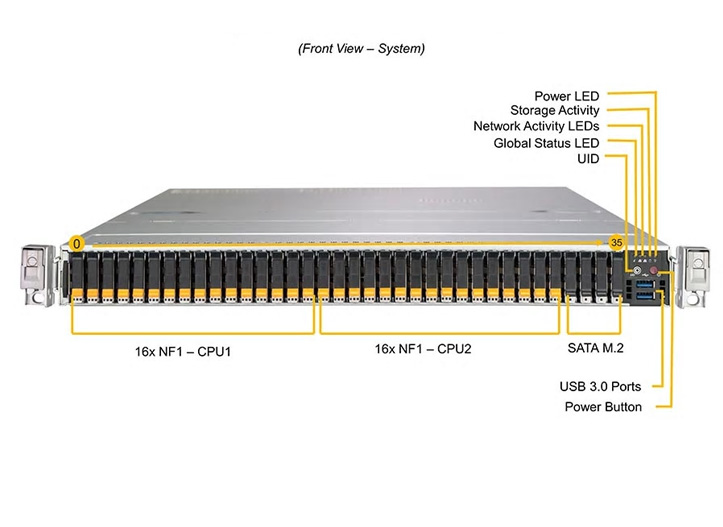

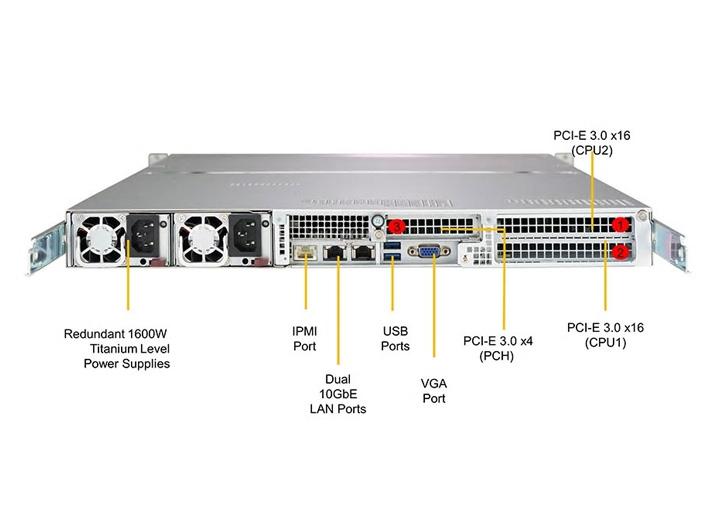

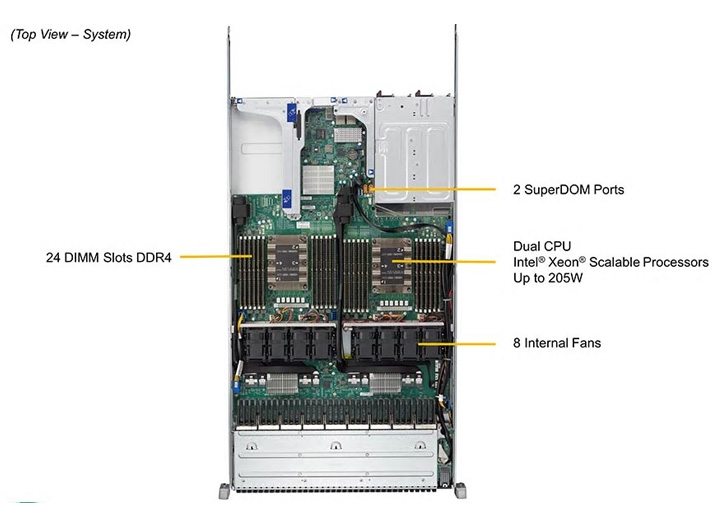

The ServerWare® SF11 NF1 All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rack Server
763mm x 438mm x 43mm

MB Size (WxL)

41.5cm x 43.18cm

Processor

Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W

Chipset

Intel® C627 chipset

SAS Controller

Optional
LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory



Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from SERVERWARE

†† Cascade Lake only. Contact your SERVERWARE sales rep for more info.

Drive Bay

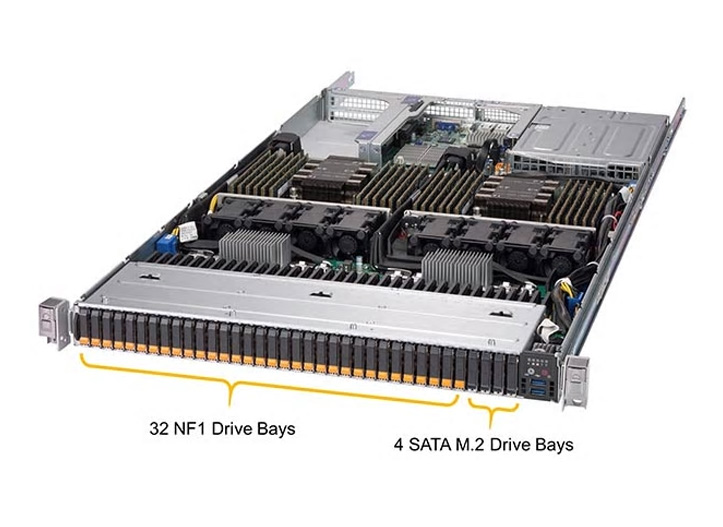

32 Hot-swap PCI-E NF1 drive bays
4 SATA3 M.2 drive bays support M.2 Form Factor 22×42/60/80/110

Onboard Storage Device

Intel® C627 chipset 4 SATA3 (6Gbps) ports

HDD Backplane

expandable backplane

PCIe Expansion Slot

2 PCI-E 3.0 x8 slots (FH, FL)

For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available.
For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available.
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers)

PCI Interface

PCI Express* 3.0

Network Controllers

2x 10GBase-T LAN ports via Intel X550

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500 BMC

Integrated Graphics

BMC integrated Aspeed AST2500

Front I/O

Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /

    UID LED

Power Supply Unit

1600W Redundant Power Supplies w/PMBus
Titanium Level (96%)

Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

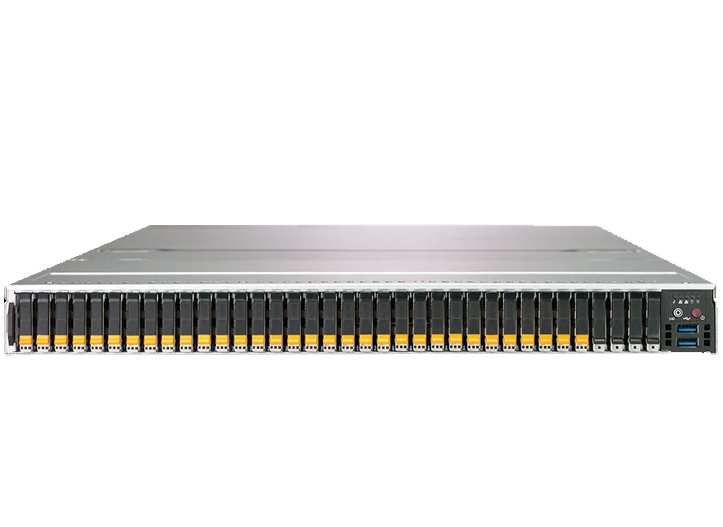

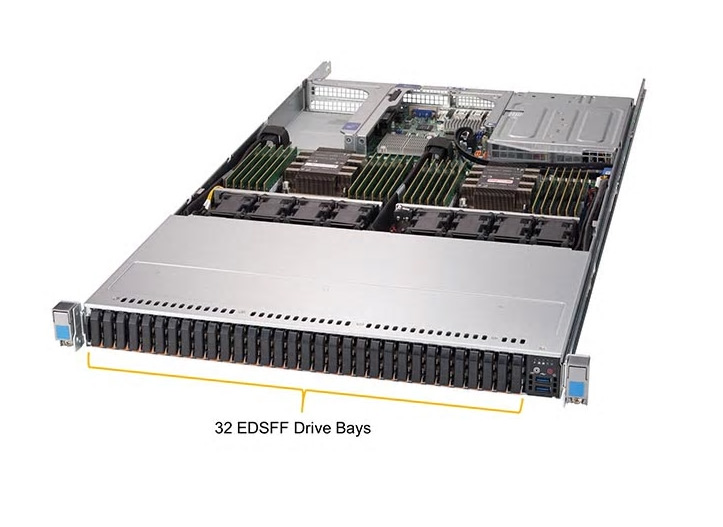

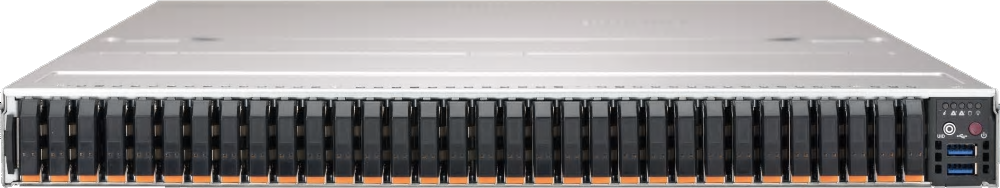

The ServerWare® SF12 E1.S All Flash Server

The ServerWare® SF12 Servers is optimized for IOPS Intensive Application, Database Application, Hyperconverged Infrastructure that requires true high performance and capacity in a 1U form factor. The serverware SF12 is built to support the next generation Enterprise and Data Center SSD Form Factor (E1.S)

Learn About E1.Shere

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

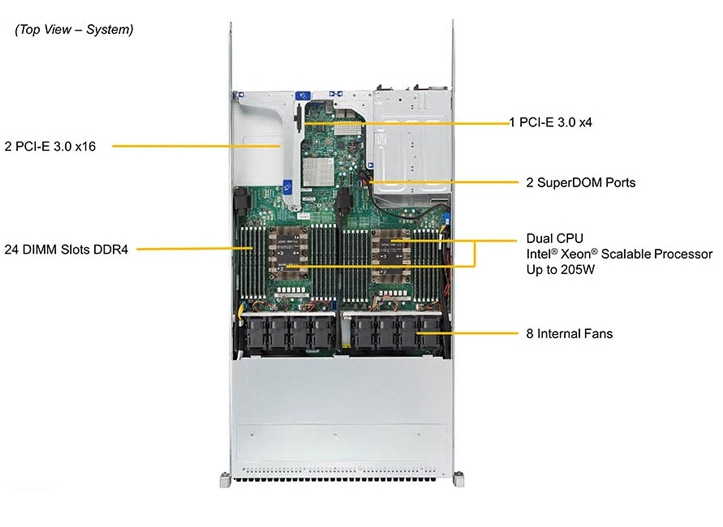

The ServerWare® SF12 E1.S All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rack Server
762mm x 437mm x 43mm

MB Size (WxL)

41.5cm x 43.18cm

Processor

Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W

Chipset

Intel® C627 chipset

SAS Controller

Optional
LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory



Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from SERVERWARE

†† Cascade Lake only. Contact your SERVERWARE sales rep for more info.

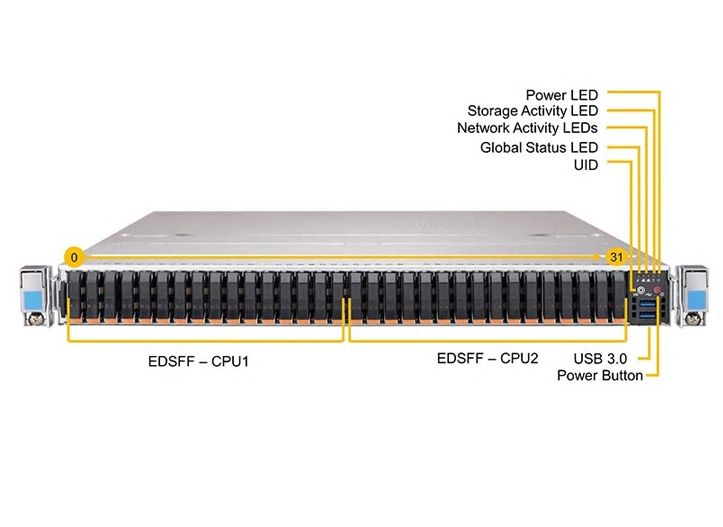

Drive Bay

32 Hot-swap PCI-E E1.S or
M.2 drive bays (M.2 is not hot-swappable).
M.2 supports Form Factor 22×42/60/80/110
(MCP-220-12106-0N tray required)

Onboard Storage Device

PCI-E fan out switching supporting 32x E1.S

HDD Backplane

PCI-E fan out switching supporting 32x E1.S

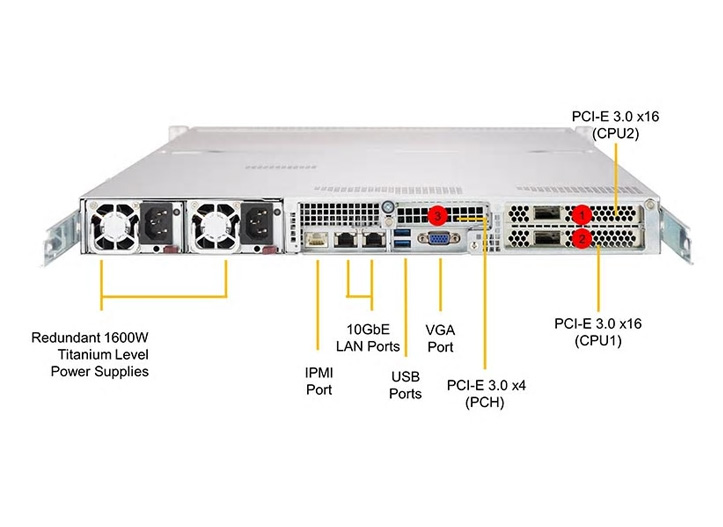

PCIe Expansion Slot

2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x4 (LP) slot

PCI Interface

PCI Express* 3.0

Network Controllers

2x 10GBase-T LAN ports via Intel X550

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500 BMC

Integrated Graphics

BMC integrated Aspeed AST2500

Front I/O

Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /UID LED

Power Supply Unit

1600W Redundant Power Supplies w/PMBus
Titanium Level (96%)

Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support
