Transforming Server Computing with AMD EPYC™

Complete Line of AMD Platform Servers

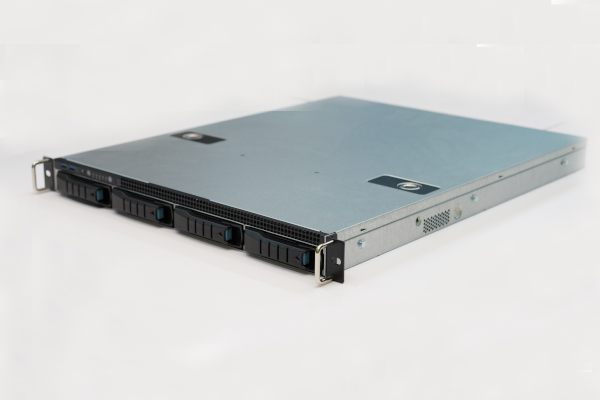

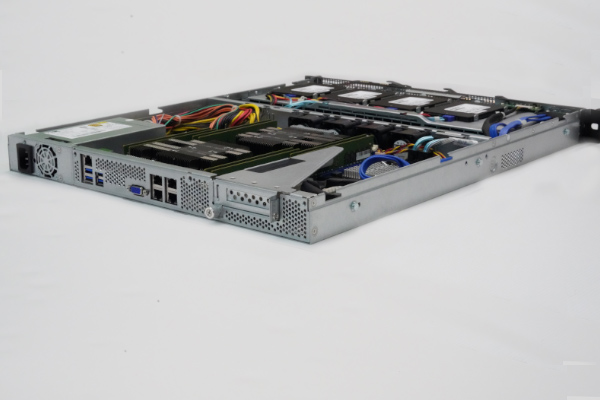

The ServerWare® SG16-A 1U Server System

Industry most versatile and highly affordable 1U server system

The industry most cost effective data center specific server driven by a dense 1U form factor that you can confidently deploy for virtualization, data base, or web server computing? The ServerWare® SG16-A Server delivers a 1U chassis with Single AMD EPYC™ 7001/7002* Series Processor Up to 32 Cores processors delivering an optimal unit that combines high-performance, low energy consumption, improved up-time, and increased confidence.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Powered by the latestSingle AMD EPYC™ Series Processor

The ServerWare® SG16-A 1U Server System built on the latest Single AMD EPYC™ 7001/7002* Series Processor, Up to 32 Cores to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generations.

Increase IOPS Performance with high capacity memories, cache and storage in 1U

Design to be flexible for total iops performance configurations, ServerWare® SG16 provides for easy configuration of both memories upgrade to 2TB DDR4 RDIMM as well as up to (4) four SSDs as caching and (4) Hostswap HDDs for storages.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Quad M.2 SATA SSDs enable top performance or data redundancy in RAID mode In performance-maximizing RAID 0 and 1 configurations with quad M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

The ServerWare® SG16-A Specifications

The ServerWare® SG16-A is right-sized for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG16-A not only largely cuts cost, but also dramatically saves energy, datacenter floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.

The ServerWare® SG16-A

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 555mm x 425mm x 43mm
MB Size (WxL)	305mm X 244mm
Processor	Single AMD EPYC™ 7003/7002 Series Processor Up to 64 Cores
Chipset	System on Chip
SAS Controller	Optional LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs

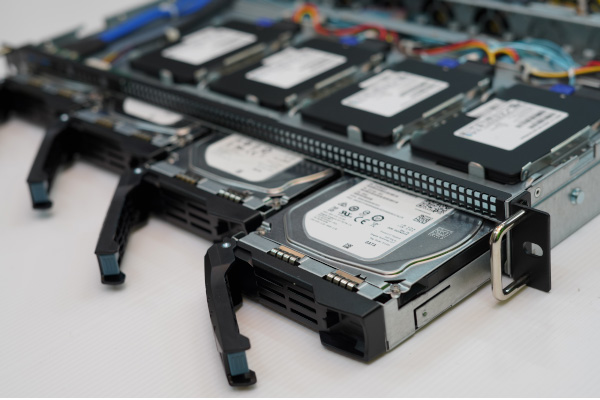

Drive Bay	(4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (4) internal 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
HDD Backplane	1 x 4-port 12Gb SAS backplane
PCIe Expansion Slot	1 PCI-E 4.0 x16 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC
Integrated Graphics	BMC integrated Aspeed AST2500
I/O	(1) Power button (1) Reset button 2 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) 1 x TPM Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	500W Fixed PSU
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

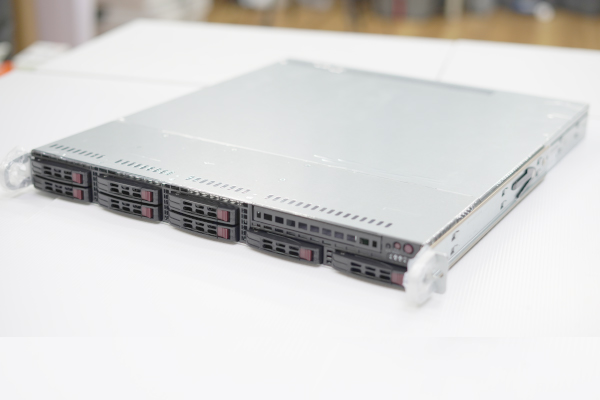

The ServerWare® SG17-A 1U Server System

Setting new standards in versatility and affordability

Engineered for data center-specific applications, the ServerWare® SG17-A Server stands out as the most cost-effective solution in the industry. Its compact 1U form factor ensures easy deployment for virtualization, database, or web server computing needs. Equipped with a Single AMD EPYC™ 7002/7003* Series Processor offering up to 64 cores, this server delivers exceptional performance while maintaining low energy consumption. Its robust design enhances uptime and instills confidence in its reliability.

AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec

Powered by the latestSingle AMD EPYC™ Series Processor

Experience the exhilarating performance of the ServerWare® SG17-A 1U Server System, featuring the latest Single AMD EPYC™ 7002/7003* Series Processor with up to 64 cores. With eight memory channels, it offers a remarkable 50% increase in memory bandwidth and capacity, elevating system-level performance to unprecedented levels.

Increase IOPS Performance with high capacity memories, cache and storage in 1U

Design to be flexible for total iops performance configurations, ServerWare® SG17A provides for easy configuration of both memories upgrade to 2TB DDR5 RDIMM as well and 8 Hostswap HDDs for storages.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Dual M.2 SATA SSDs provide top performance and data redundancy in RAID mode. Configured in RAID 0 and 1 with quad M.2 SSDs, they offer faster write and read speeds. For added assurance, opt for RAID 1 for instant data redundancy.

The ServerWare® SG17-A Specifications

Experience the exhilarating performance boost and data security offered by Dual M.2 SATA SSDs in RAID mode. With lightning-fast write and read speeds achieved through RAID 0 and 1 configurations with quad M.2 SSDs, your computing experience will soar to new heights. Plus, ensure peace of mind with instant data redundancy provided by RAID 1 configuration. Elevate your system’s performance and reliability today!

The ServerWare® SG17-A

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 507mm x 437mm x 43mm
MB Size (WxL)	305mm X 244mm
Processor	Single AMD EPYC™ 7003/7002 Series Processor Up to 64 Cores
Chipset	System on Chip
SAS Controller	Optional LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay	8x 2.5″ hot-swap SAS/SATA drive bay
Onboard Storage Device	2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
HDD Backplane	8-Port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
PCIe Expansion Slot	1 PCI-E 4.0 x16 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC
Integrated Graphics	BMC integrated Aspeed AST2500
I/O	(1) Power button (1) Reset button 4 x USB 3.0 port (Rear) 1 x TPM Header 1 x COM port (rear) 1 x VGA Port

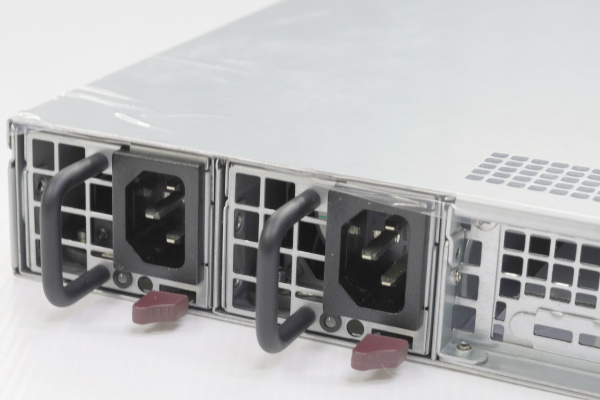

Power Supply Unit	800W 1U Platinum redundant power supply
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

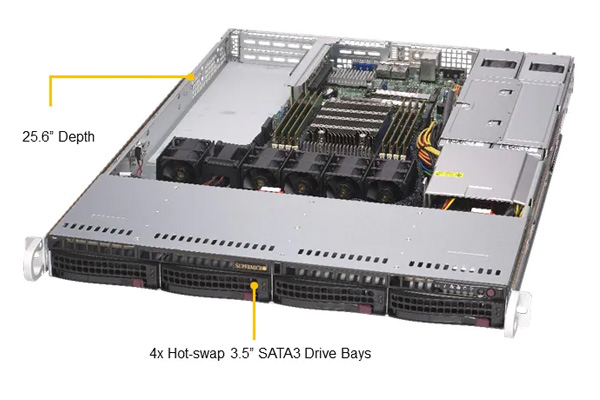

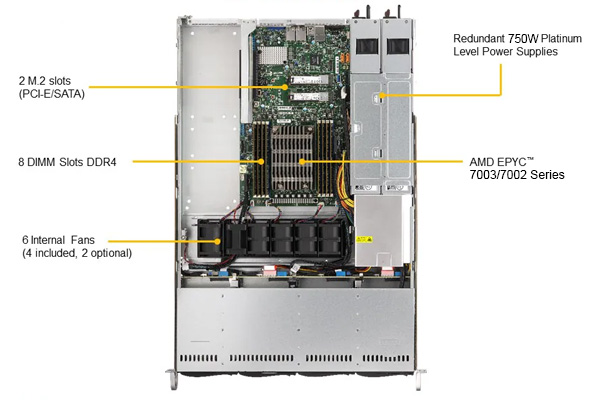

The ServerWare® SG19-A 1U Server System

A Truly Dynamic Solution, Expertly Supporting Flexible Server Computing Needs

TheServerWare® SG19-A Server is your gateway to effortless scalability, providing the adaptability to accommodate your evolving business needs. Featuring a single socket system and powered by the cutting-edge Single AMD EPYC™ 7003/7002 Series Processor with up to 64 Cores, it delivers unparalleled performance, making it the ideal choice for small businesses looking for a dependable and cost-effective server solution.

Experience unparalleled reliability, durability, and performance, rendering this server the ultimate solution for diverse requirements across datacenter, cloud, SMB, embedded, and storage & security appliance applications. Trust in its capabilities to elevate your professional operations to new heights.

Effective and Budget-Savvy Application Platform

ServerWare® SG19-A is simplified, tailored to meet the specific needs of small and medium businesses and datacenters. Cable-free, 8 x HotSwap HDD allows for easy change over . Single AMD EPYC™ 7001/7002* Series Processor

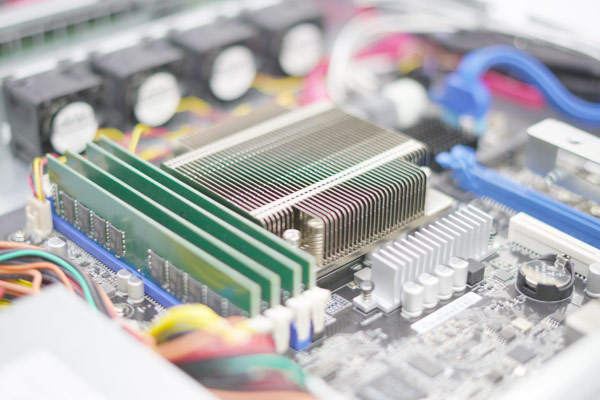

Up to 32 Cores , 512TB of memory, (4)Eight 3.5″ Hotswap SATA/SAS 6G/12G SSDs, two GbE RJ45 ports and redundant power supply

Tailored for Mainstream Application

Designed to Meet Entry-Level or High-Volume Demands, the ServerWare® SG19-A 1U Server Excels in Optimizing Mainstream Applications. Enterprise IT Managers Can Select the Specific Model That Aligns with Their Application Requirements, Complete with Integrated Features Tailored to Their Needs.

Innovative and designed for data centers

Data Center Optimized. Designed to align with complex requirements of floorspace and energy in order to achieve lower Total Cost of Ownership (TCO). Improved Thermal Architecture and High Efficiency Power Supplies for Data Center Operation and Short-Depth Design for Server Deployments Where Space and Power are at a Premium.

The ServerWare® SG18-A Specifications

The ServerWare® SG18-A is a single/dual socket right sizing 1U rack server design for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG18-A is a flexible data center server that provides you the flexibility to scale as you need from compute power to memory capacity and storage IOPs and Capacity Management.

The ServerWare® SG19-A

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 650mm x 437mm x 43 mm
MB Size (WxL)	Proprietary WIO 207mm x 332mm
Processor	Single AMD EPYC™ 7003/7002 Series Processor Up to 64 Cores
Chipset	System on Chip
SAS Controller	Optional LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay	(4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	2 SATA3 (6 Gbps) ports 16 SATA3 / 4 NVMe (PCI-E Gen3) 2 NVMe (PCI-E Gen4)
HDD Backplane	1 x 4-port 12Gb SAS backplane
PCIe Expansion Slot	1 PCI-E 4.0 x32 Left Riser Slot 1 PCI-E 4.0 x16 Right Riser Slot M.2 Interface: 2 SATA/PCI-E 3.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0

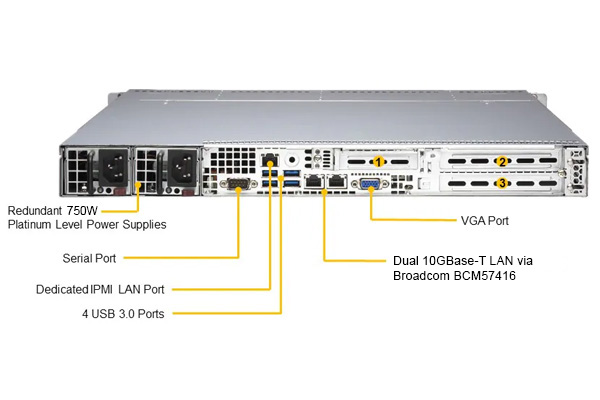

Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC
Integrated Graphics	BMC integrated Aspeed AST2500
I/O	(1) Power button (1) Reset button 4 x USB 3.0 port (Rear) 1 x USB Type A port 1 x TPM 2.0 Header 1 x COM Port (rear) 1 x VGA Port
Power Supply Unit	750W 1U Platinum redundant power supply
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

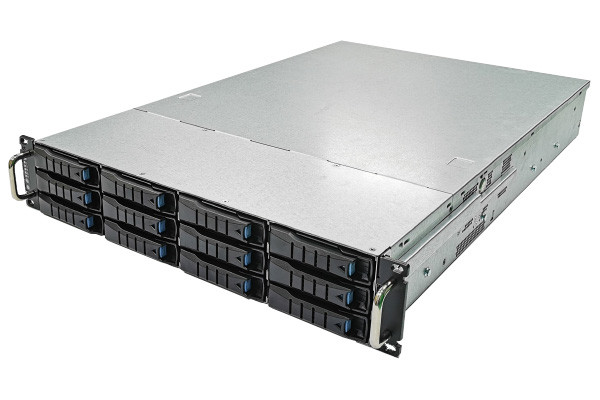

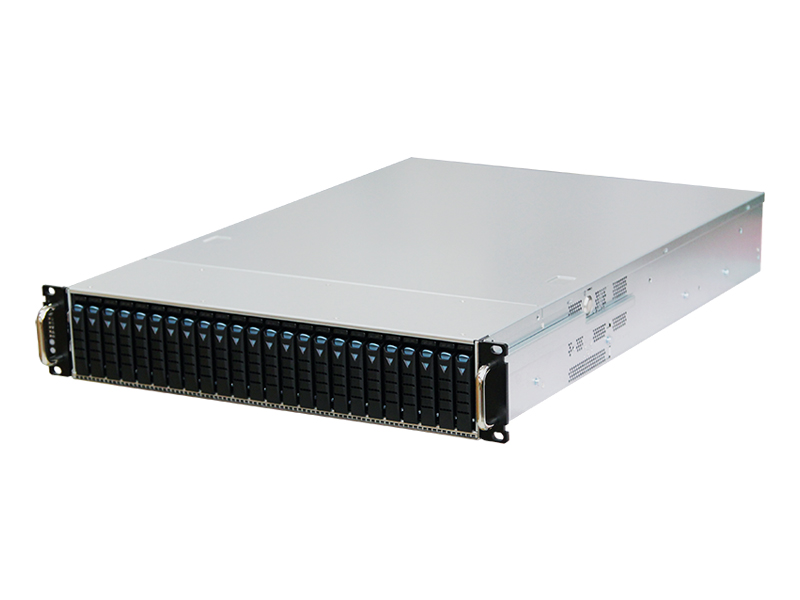

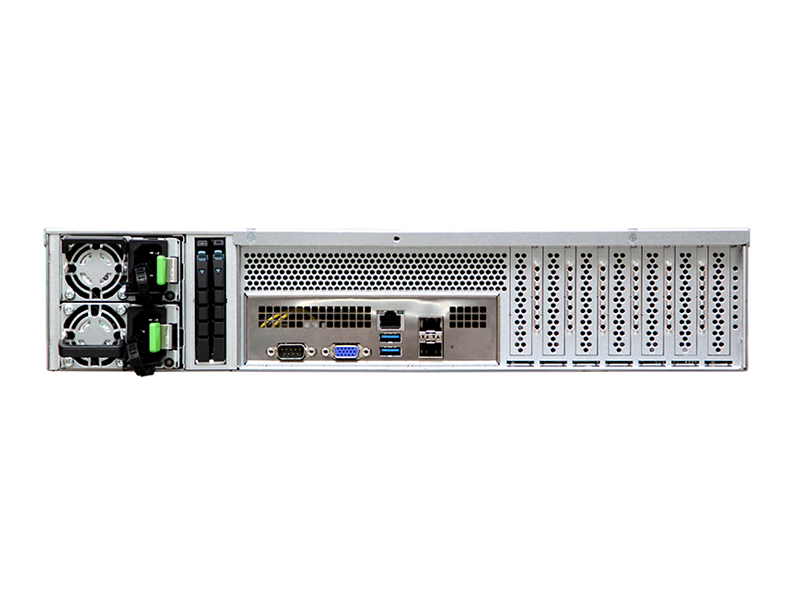

The ServerWare® ST2A-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

The ServerWare® ST2E-A Server provides you with the choice to scale as you grow. A single socket system, based onAMD EPYC™ 7001/7002* Series Processor
Up to 32 Cores delivers peak performance for data centers that need a robust, flexible and cost effective computing needs..

Realize reliability, durability and performance that make this server ideal for versatile needs in a datacenter, cloud, SMB, embedded, and storage & security appliance applications.

Powered by the latest 2^nd Gen Intel Xeon Scalable processors

The ServerWare® ST2E Server System built on theAMD EPYC™ 7001/7002* Series Processor Up to 32 Cores to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generations.

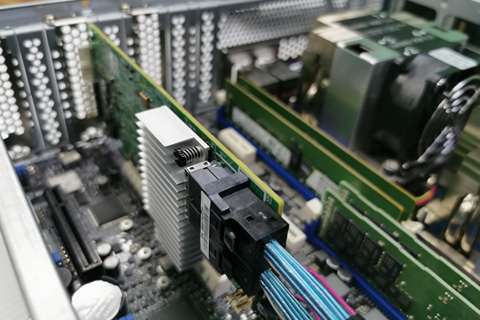

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Enable latency reduction and increased bandwidth, while reducing power consumption.In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster.

Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

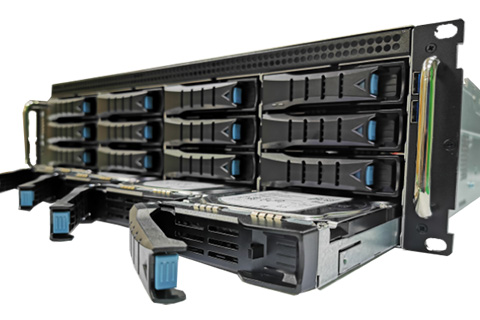

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2E-A features a 12 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes. HW RAID SAS 12G and Intel® Xeon® processors with support for up to 512GB of DDR4 memory, dual 1Gbe and four free PCI Express expansion slots, the ST2E-A has the ability to support the maximum amount of expansion cards while still offering a very small 2U form factor.

The ServerWare® SG2A-A Specifications

The ServerWare® ST2E-A is based onAMD EPYC™ 7001/7002* Series Processor
Up to 32 Cores designed for high performance and reliability. With support for eight DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

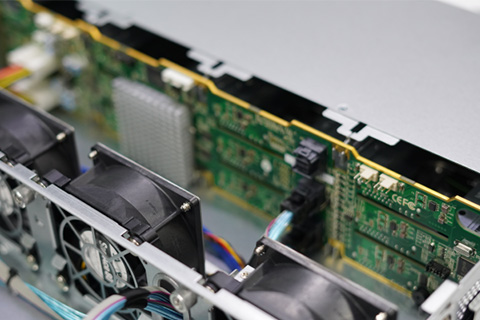

The ServerWare® ST2E-A delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2A -A

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	2U Rack Server 645mm x 430mm x 88mm
MB Size (WxL)	305mm x 244mm
Processor	Single AMD EPYC™ 7003/7002 Series Processor Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs

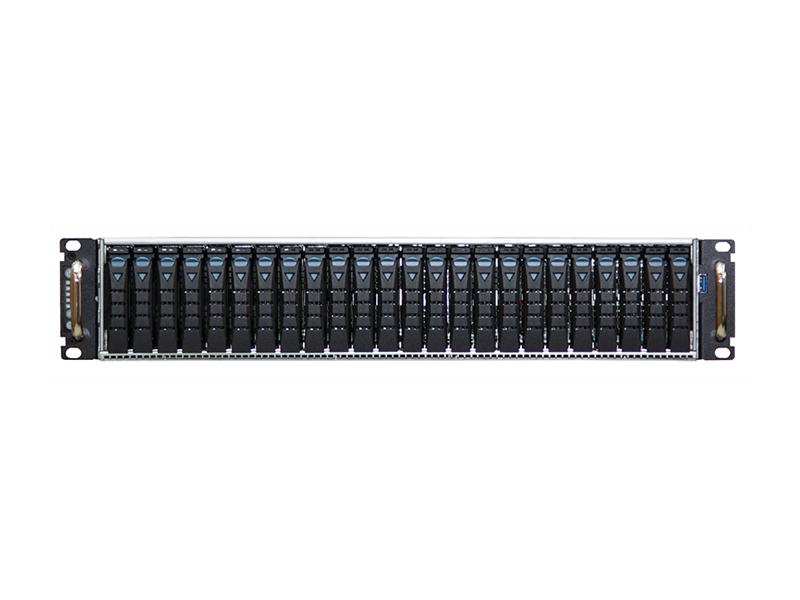

Drive Bay	(24) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)

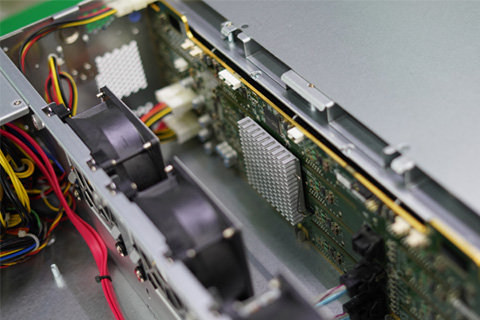

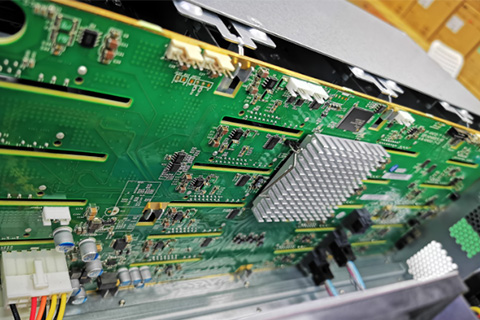

HDD Backplane	1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors
PCIe Expansion Slot	5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC
Integrated Graphics	BMC integrated Aspeed AST2500
I/O	(1) Power button (1) Reset button 1 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) 1 x TPM Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

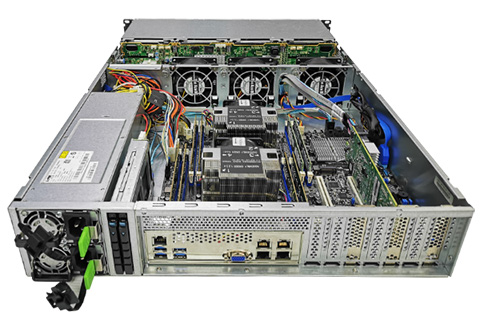

The ServerWare® ST2A -A Dual Socket

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	2U Rack Server 645mm x 430mm x 88mm
MB Size (WxL)	305mm x 331mm

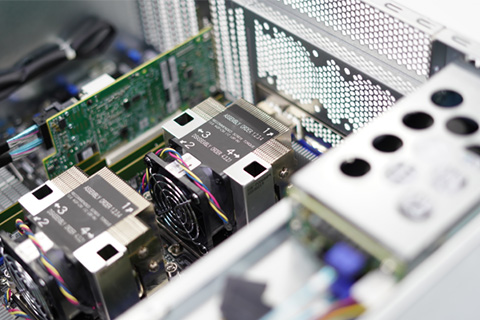

Processor	Dual AMD EPYC™ 7003/7002 Series Processors Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Drive Bay	(24) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	10 SATA3 (6 Gbps) ports 2 SATA DOM power connectors 4 PCI-E 4.0 NVMe x4 internal ports
HDD Backplane	1 x 12-port 12Gb SAS backplane expander
PCIe Expansion Slot	3 PCI-E 4.0 x16 slots 3 PCI-E 4.0 x8 slots M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	(1) Power button (1) Reset button 1 x USB 3.0 port (Front) 2 x USB 2.0 port (Rear) 2 x USB 3.0 port (Rear) 1 x TPM 2.0 Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

The ServerWare® ST2E-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

The ServerWare® ST2E-A Server provides you with the choice to scale as you grow. A single socket system, based on AMD EPYC™ 7002/7003 Series Processors Up to 64 Cores delivers peak performance for data centers that need a robust, flexible and cost effective computing needs..

Realize reliability, durability and performance that make this server ideal for versatile needs in a datacenter, cloud, SMB, embedded, and storage & security appliance applications.

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, biqmind

Powered by the latest AMD EPYC™ Series Processors

The ServerWare® ST2E Server System built on the AMD EPYC™ 7002/7003 Series Processors Up to 64 Cores to deliver higher per-core performance and six memory channels that provide more memory bandwidth and capacity for even faster average system-level performance compared to previous-generations.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Enable latency reduction and increased bandwidth, while reducing power consumption. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds faster than a single M.2 SSD drive setup and read operations are an astonishingly faster rate.

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2E-A features a 12 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes. HW RAID SAS 12G and AMD EPYC™ Series Processors with support for up to 512GB of DDR4 memory, dual 1Gbe and four free PCI Express expansion slots, the ST2E-A has the ability to support the maximum amount of expansion cards while still offering a very small 2U form factor.

The ServerWare® SG2E-A Specifications

The ServerWare® ST2E-A is based on AMD EPYC™ 7002/7003 Series Processors Up to 64 Cores designed for high performance and reliability. With support for eight DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E 4 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST2E-A delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2E -A

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	2U Rack Server 645mm x 483mm x 88mm
MB Size (WxL)	305mm x 244mm
Processor	Single AMD EPYC™ 7003/7002 Series Processor Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay	(12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
HDD Backplane	1 x 12-port 12Gb SAS backplane expander
PCIe Expansion Slot	5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC
Integrated Graphics	BMC integrated Aspeed AST2500
I/O	(1) Power button (1) Reset button 1 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) 1 x TPM Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® ST2E -A Dual Socket

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	2U Rack Server 645mm x 483mm x 88mm
MB Size (WxL)	305mm x 331mm
Processor	Dual AMD EPYC™ 7003/7002 Series Processors Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Drive Bay	(12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	10 SATA3 (6 Gbps) ports 2 SATA DOM power connectors 4 PCI-E 4.0 NVMe x4 internal ports
HDD Backplane	1 x 12-port 12Gb SAS backplane expander
PCIe Expansion Slot	3 PCI-E 4.0 x16 slots 3 PCI-E 4.0 x8 slots M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	(1) Power button (1) Reset button 1 x USB 3.0 port (Front) 2 x USB 2.0 port (Rear) 2 x USB 3.0 port (Rear) 1 x TPM 2.0 Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

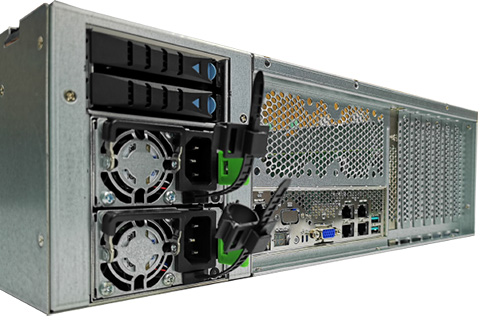

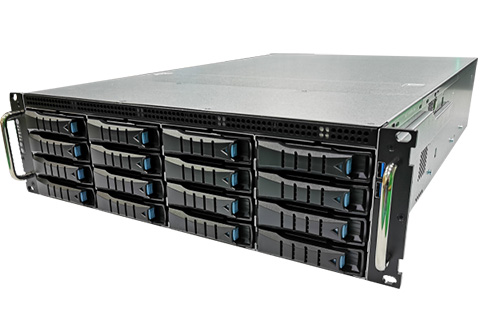

The ServerWare® ST3E-A 3U Server System

The Very Defintion of a Mainstream Storage Server Meeting the Needs of Cloud Storage

The ServerWare® ST3E-A is a 3U storage server that features 16 hot-swap hard drive bays for data storage and 2 additional rear bays for the OS drives. The ST3E-A features an integrated LSI 3108 SAS 12G HW ROC Raid Controller and AMD EPYC™ 7002/7003 Series Processors Up to 64 Cores. With support for up to 2TB of DDR4 memory, dual 10GbE, five PCI Express 4.0 expansion slots, and 16 HDD in only 3U of space,

serverware Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Single large scale storage servers for scaling up and scaling out

The ServerWare® ST3E Server System provides for 16 HDD bays allowing you to build a massive capacities of up to 256TB raw data space.
Comes with an option of a LSI Hardware RAID controller to manage redundancy of data or a Zero RAID controller to manage data through software defined.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST3E features a 16 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes. HW RAID SAS 12G and AMD EPYC™ Series Processors with support for up to 1TB of DDR4 memory, quad 1Gbe and four free PCI Express expansion slots, the ST3E has the ability to support the maximum amount of expansion cards while still offering a very small 3U form factor.

The ServerWare® ST3E-A Specifications

The ServerWare® ST3E-A is based onAMD EPYC™ 7001/7002* Series Processor Up to 32 Cores designed for high performance and reliability. eight DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST3E-A delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST3E -A

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	3U Rack Server 645mm x 483mm x 132mm
MB Size (WxL)	305mm x 244mm
Processor	Single AMD EPYC™ 7003/7002 Series Processor Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay	(16) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
HDD Backplane	1 x 16-port 12Gb SAS backplane expander
PCIe Expansion Slot	5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC
Integrated Graphics	BMC integrated Aspeed AST2500
I/O	(1) Power button (1) Reset button 2 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) 1 x TPM Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® ST3E -A Dual Socket

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	3U Rack Server 645mm x 483mm x 132mm
MB Size (WxL)	305mm x 331mm
Processor	Dual AMD EPYC™ 7003/7002 Series Processors Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Drive Bay	(16) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	10 SATA3 (6 Gbps) ports 2 SATA DOM power connectors 4 PCI-E 4.0 NVMe x4 internal ports
HDD Backplane	1 x 16-port 12Gb SAS backplane expander
PCIe Expansion Slot	3 PCI-E 4.0 x16 3 PCI-E 4.0 x8 M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	(1) Power button (1) Reset button 2 x USB 3.0 port (Front) 2 x USB 2.0 port (Rear) 2 x USB 3.0 port (Rear) 1 x TPM 2.0 Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

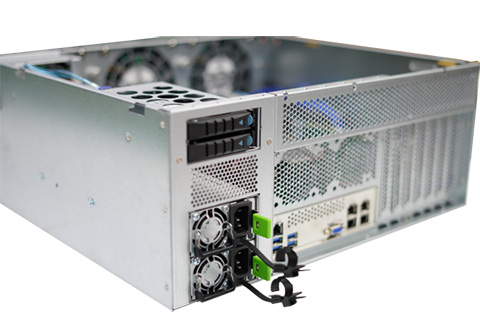

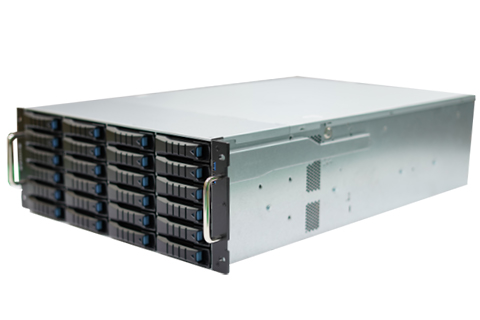

The ServerWare® ST4E-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

The ServerWare® ST4E-A Server provides you with the choice to scale as you grow. A single socket system, based on AMD EPYC™ 7002/7003 Series Processors Up to 64 Cores delivers peak performance for data centers that need a robust, flexible and cost effective computing needs..

Realize reliability, durability and performance that make this server ideal for versatile needs in a datacenter, cloud, SMB, embedded, and storage & security appliance applications.

Powered by the latest AMD EPYC™ Series Processors

The ServerWare® ST2E Server System built on the AMD EPYC™ 7002/7003 Series Processors Up to 64 Cores to deliver higher per-core performance and six memory channels that provide even more memory bandwidth and capacity for faster average system-level performance compared to previous-generations.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Enable latency reduction and increased bandwidth, while reducing power consumption. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster.

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST4E features a 24 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes. HW RAID SAS 12G and AMD EPYC™ Series Processors with support for up to 2TB of DDR4 memory, quad 1Gbe and four free PCI Express expansion slots, the ST4E has the ability to support the maximum amount of expansion cards while still offering a very small 3U form factor.

The ServerWare® ST4E-A Specifications

The ServerWare® ST4E-A is based on AMD EPYC™ 7002/7003 Series Processors Up to 64 Cores designed for high performance and reliability. With support for eight DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST4E-A delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST4E -A

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	4U Rack Server 645mm x 483mm x 176mm
MB Size (WxL)	305mm x 244mm
Processor	Single AMD EPYC™ 7003/7002 Series Processor Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay	(24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
HDD Backplane	1 x 24-port 12Gb SAS backplane expander
PCIe Expansion Slot	5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC
Integrated Graphics	BMC integrated Aspeed AST2500
I/O	(1) Power button (1) Reset button 2 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) 1 x TPM Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	1200W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® ST4E -A Dual Socket

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	4U Rack Server 645mm x 483mm x 176mm
MB Size (WxL)	305mm x 331mm
Processor	Dual AMD EPYC™ 7003/7002 Series Processors Up to 64 Cores
Chipset	System On Chip
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Drive Bay	(24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	10 SATA3 (6 Gbps) ports 2 SATA DOM power connectors 4 PCI-E 4.0 NVMe x4 internal ports
HDD Backplane	1 x 24-port 12Gb SAS backplane expander
PCIe Expansion Slot	3 PCI-E 4.0 x16 3 PCI-E 4.0 x8 M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
PCI Interface	PCI Express* 4.0
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	(1) Power button (1) Reset button 2 x USB 3.0 port (Front) 2 x USB 2.0 port (Rear) 2 x USB 3.0 port (Rear) 1 x TPM 2.0 Header 1 x COM port (rear) 1 x VGA Port
Power Supply Unit	1200W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% to 90% (non-condensing) Non-operating relative humidity: 5% to 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

Back to product menu —>

Complete Line of AMD Platform Servers

The ServerWare® SG16-A 1U Server System

Industry most versatile and highly affordable 1U server system

Powered by the latestSingle AMD EPYC™ Series Processor

Increase IOPS Performance with high capacity memories, cache and storage in 1U

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

The ServerWare® SG16-A Specifications

Support Plans Easy Choices

The ServerWare® SG17-A 1U Server System

Setting new standards in versatility and affordability

Powered by the latestSingle AMD EPYC™ Series Processor

Increase IOPS Performance with high capacity memories, cache and storage in 1U

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

The ServerWare® SG17-A Specifications

Support Plans Easy Choices

The ServerWare® SG19-A 1U Server System

A Truly Dynamic Solution, Expertly Supporting Flexible Server Computing Needs

Effective and Budget-Savvy Application Platform

Tailored for Mainstream Application

Innovative and designed for data centers

The ServerWare® SG18-A Specifications

Support Plans Easy Choices

The ServerWare® ST2A-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

Powered by the latest 2nd Gen Intel Xeon Scalable processors

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® SG2A-A Specifications

Support Plans Easy Choices

The ServerWare® ST2E-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

Powered by the latest AMD EPYC™ Series Processors

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® SG2E-A Specifications

Support Plans Easy Choices

The ServerWare® ST3E-A 3U Server System

The Very Defintion of a Mainstream Storage Server Meeting the Needs of Cloud Storage

Single large scale storage servers for scaling up and scaling out

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST3E-A Specifications

Support Plans Easy Choices

The ServerWare® ST4E-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

Powered by the latest AMD EPYC™ Series Processors

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST4E-A Specifications

Support Plans Easy Choices

Still have questions?

Whatsapp +6016 -309 1121

for immediate answers

Login

Powered by the latest 2^nd Gen Intel Xeon Scalable processors
