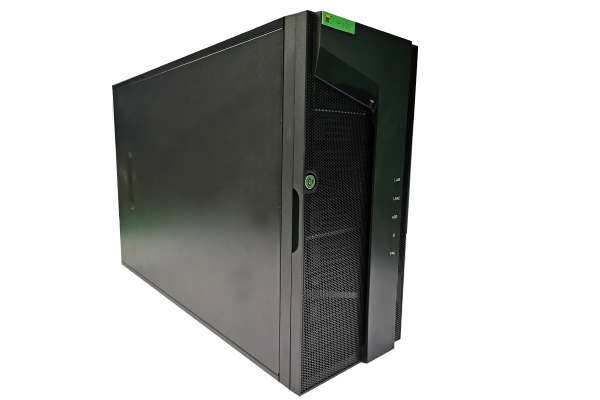

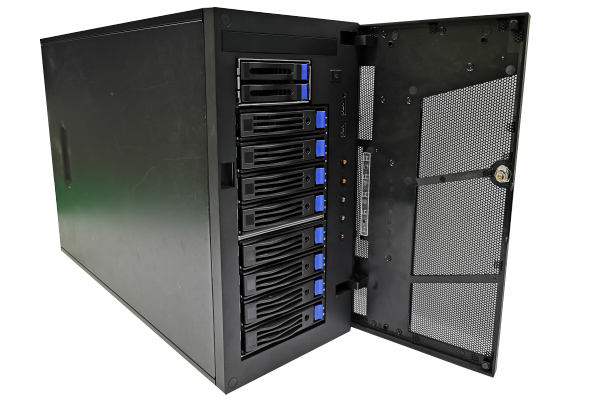

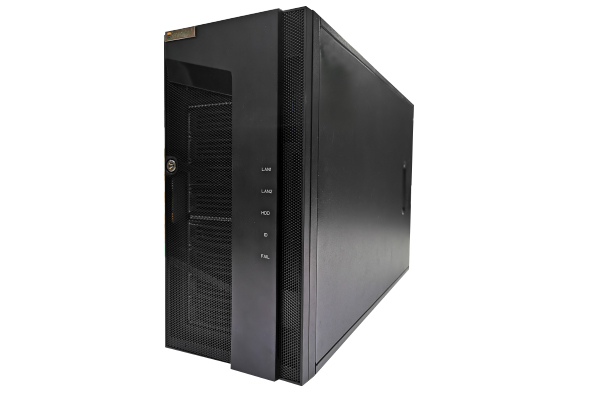

The ServerWare® SB633 Pedestal Server System

 A Versatile Platform to Meet a Range of Professional server computing Needs.

The ServerWare® SB 633 workstation  are the ideal foundation for a powerful server workstation workhorse. They deliver awesome power, dependable performance, massive storage capacities and unmatched multiple I/O scalability for the most demanding tasks and future upgrades.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
serverware Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

serverware

Broad Application Platform that is both Powerful and Affordable

ServerWare® SB633 is simplified, tailored to meet the specific needs of small and medium businesses and enterprise. Cable-free, 8 x HotSwap HDD allows for easy change over . Powered by the Intel® Xeon® E platform , 1.0TB of memory, (8)Eight 3.5″ Hotswap SATA/SAS 6G/12G SSDs and quad GbE RJ45 ports.

SERVERWARE

Mainstream Application Optimized

The Mainstream Application Optimized ServerWare® SB633 Tower server  is designed for entry level or volume selections. Enterprise IT Managers can choose the exact model for their applications, with a precise set of integrated features needed for their applications.

serverware

Innovative and designed for data centers

Business Computing Optimized. Designed to align with complex requirements of floorspace and energy in order to achieve lower Total Cost of Ownership (TCO). Improved Thermal Architecture and High Efficiency Power Supplies for businesses and Short-Depth Design for Server Deployments Where Space and Power are at a Premium.

The ServerWare® SB 663- Specifications

The ServerWare® SB 663 workstation  are the ideal foundation for a powerful workstation workhorse. They deliver awesome power, dependable performance, and unmatched multiple I/O scalability for the most demanding tasks and future upgrades.

The ServerWare® SB 663 - Intel® Xeon® E

System Specifications

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) Pedestal Tower
340mm x 513mm x 170mm
MB Size (WxL) 244mm x 244mm
Processor (1) Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Chipset Intel® C242 chipset
SAS Controller LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory Total Slots 4 (2-channel per CPU)
Capacity Maximum up to 128GB
Memory Type DDR4 2666/2400 ECC and non-ECC UDIMM
Drive Bay (8) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Internal 2.5″ bays
Onboard Storage Device Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
HDD Backplane 2 x 4 port 12Gb SAS backplane
PCIe Expansion Slot 1 x PCI-E x16 (Gen3 x16 link)
1 x PCI-E x8 (Gen3 x8 link)
-2 x M.2 connector (NGFF 22110/2280/2260/2242, PCI-E Gen3 x2 link or SATA signal,
gray SATA port will disable when M.2 is SATA signal)
PCI Interface PCI Express* 3.0
Network Controllers 4x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2500 32MB
Front I/O (1) Power button
(1) Reset button
2 x USB 3.0 port
Power Supply Unit 500W Fixed PSU Gold
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH
Warranty Standard 3 Years Warranty



The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

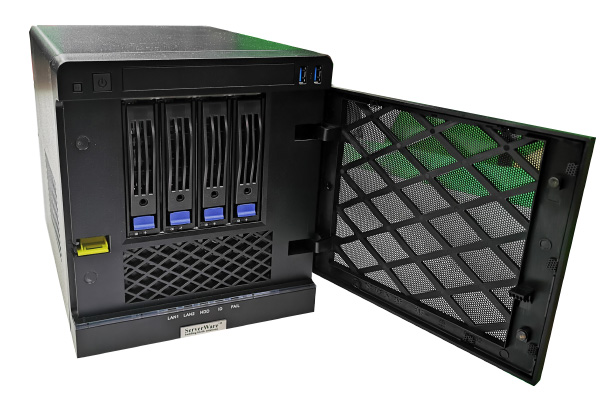

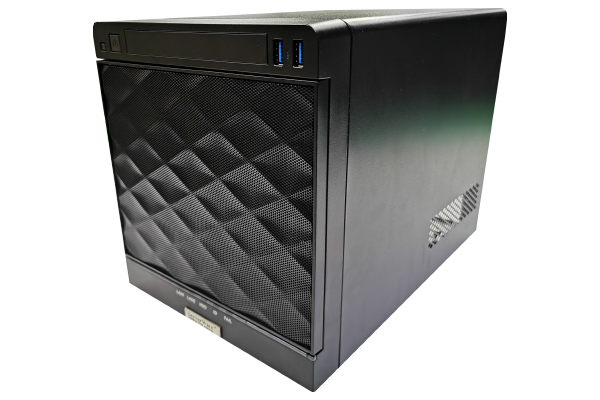

The ServerWare® SB686 Server System

The Very Definition of a Business Deskside Storage Server Meeting the Needs of Cloud Storage

The ServerWare® SB686 SMB MicroServer System. Designed to over perform in all kind of business critical applications, whether they are computing and memory intensive, highly parallel, relying on storage or depending on expansions, The ServerWare® SB686 SMB MicroServer is a versatile and highly reliable solution for your business server computing needs.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
serverware Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

serverware

Superior Compute Performance with Low Power Consumption

The ServerWare® SB686-XD Server System Features an intel® Xeon® processors D-1500 delivering an optimal unit that combines high-performance, extreme low energy consumption at 35W, improved uptime, and increased confidence for any servers system.

serverware

Single large size storage servers for scaling up

The ServerWare® SB686-XD Server System provides for 4 HDD bays allowing you to build a massive capacities of up to 64TB raw data space.
Comes with an a Hardware RAID controller to manage redundancy of data or add a Zero RAID controller to manage data through software defined.

serverware, Intel, Xeon

Compute Performance with Low Power Consumption Extreme Networking Flexibility

To safeguard your business and customers, Integrated as a standard with 4 x 10Gbe Network Port for superior networking capabilities that offers industry-leading protection, scalability and efficiency. The ServerWare® SB686 Server delivers flexible networking  performance  and exceptional reliable server for appliances, server deployments as well as business IT uses.

The ServerWare® SB 686-XD Specifications

The features of The ServerWare® SB 686-XD is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® D processor, supporting up to 35 Watt TDPs, 128GB of memory, four(4) 3.5″ hotswap SATA/SAS 6G/12G HDDs, and four 10 GbE RJ45 ports. The ServerWare® SB 686-XD provides more flexibility and scalability.

The ServerWare® SB686-XD

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

DeskSide Tower
225mm x 305mm x 210mm

MB Size (WxL)

170mm x 170mm

Processor

Intel® Xeon® processor D-1518,
Single socket FCBGA 1667;
4-Core, 8 Threads, 35W
(Higher Core/Threads Model Available)

Chipset

System on Chip

SAS Controller

Optional

Memory

Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots

Drive Bay

(4) hotswap 3.5″ HDD 6G/12G Bays with RV Protection

+(1) internal 2.5″ HDD/SSD

Onboard Storage Device

SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
6 SATA3 (6Gbps) port

HDD Backplane

4 SATA3/SAS backlane

Expansion Slot

1 PCI-E 3.0 x16
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key

PCI Interface

PCI Express* 3.0

Network Controllers

2 RJ45 10GBase-T ports
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

Aspeed AST2400 BMC

I/O

(1) Power button
(1) Reset button
(2) USB 2.0 ports (2 Front)
(2) USB 3.0 ports (2 rear)
(1) VGA Port
(1) TPM Header
(1)1 COM Port (1 header)

Power Supply Unit

300W Fixed PSU

Operating Environment

Operating temperature: 5°C to 35°C (41°F to 95°F)

Non-operating temperature: -40°C to 65°C (-40°F to 149°F)

Operating relative humidity: 50% to 85%RH

Non-operating relative humidity: 20% to 90%RH

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

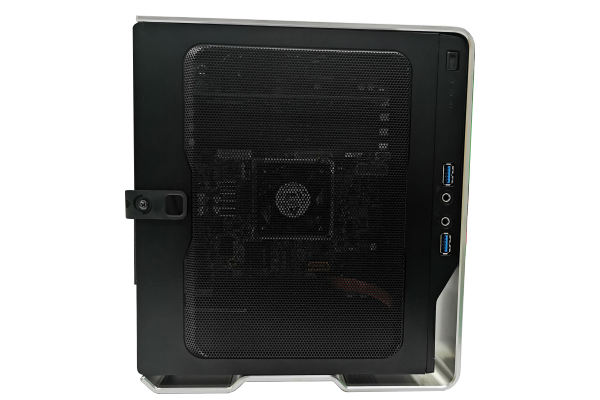

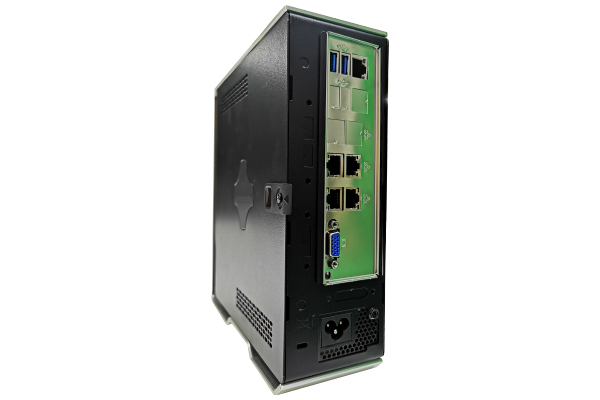

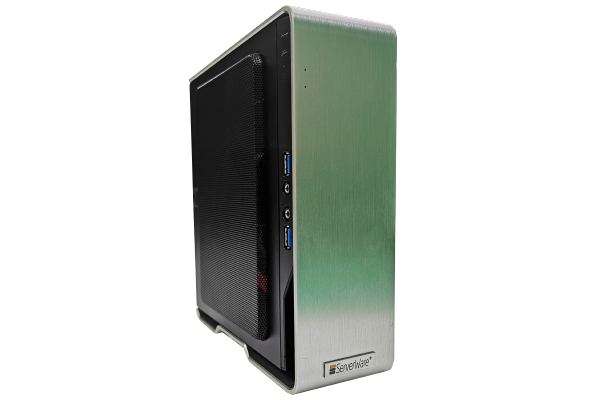

The ServerWare® SB 688 Server System

Compact Business Server pack with the power for server computing

The smallest yet mainstream and powerful business server. Build for SMB’s and SME’s the ServerWare® SB 688 is built with Intel Xeon D processor family. Designed with office spaces in mind and every server computing compliance that is required for peace of mind in managing your business.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

serverware

Superior Compute Performance with Low Power Consumption

The ServerWare® SB688XD Server System Features an intel® Xeon® processors D-1500 delivering an optimal unit that combines high-performance, extreme low energy consumption at 35W, improved uptime, and increased confidence for a 1U rack servers system. It provides an innovative and exceptional reliable server for appliances, data center cloud deployments as well as business IT uses.

serverware

Smallest Form Factor Server Highest Compute Performance with Low Power Consumption

Smallest Form Factor Server packed with the power of computing and network availability with quad 10Gbe network ports. Providing the right sizing and networking scalability in any office environment.

serverware

Eliminate data bottlenecks in sizable storage environments.

Design with high memory capacity the ServerWare® S688-XD supports up to 128GB DDR4 RDDIMM Memories , combining storage performance and storage flexibility, the SB688 server is a great choice for enterprises of all sizes.

The ServerWare® SB 686-XD Specifications

The features of The ServerWare® SB 688-XD is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® D processor, supporting up to 35 Watt TDPs, 128GB of memory,two(2) 2.5″ internal SATA/SAS 6G/12G HDDs, and four 10 GbE RJ45 ports. The ServerWare® SB 686-XD provides more flexibility and scalability.

The ServerWare® SB688-XD

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

DeskSide Tower
243mm x 220mm x 78mm

MB Size (WxL)

170mm x 170mm

Processor

Intel® Xeon® processor D-1518,
Single socket FCBGA 1667;
4-Core, 8 Threads, 35W
(Higher Core/Threads Model Available)

Chipset

System on Chip

SAS Controller

Not Applicable

Memory

Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots

Drive Bay

 (2) internal 2.5″ HDD/SSD

Onboard Storage Device

SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
6 SATA3 (6Gbps) port

HDD Backplane

None

Expansion Slot

1 PCI-E 3.0 x16
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key

PCI Interface

PCI Express* 3.0

Network Controllers

2 RJ45 10GBase-T ports
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

Aspeed AST2400 BMC

I/O

(1) Power button
(1) Reset button
(2) USB 3.0 ports (2 rear)
(1) VGA Port
(1) TPM Header
(1)1 COM Port (1 header)

Power Supply Unit

300W Fixed PSU

Operating Environment

Operating temperature: 5°C to 35°C (41°F to 95°F)

Non-operating temperature: -40°C to 65°C (-40°F to 149°F)

Operating relative humidity: 50% to 85%RH

Non-operating relative humidity: 20% to 90%RH

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

The ServerWare® SB633-XD Server System

Balancing performance between Compute and IOPS in your business.

The ServerWare® Servers SB 633-XD Pedestal Tower Server System provides you with extreme reliability, high Performance and massive storage . Designed for professionals and enterprises, your tasks at hand get done with high productivity and efficiency.Turn your single ServerWare® SPD 633 Tower Server into multiple Servers with Virtual Machines that you can trust and rely upon.

serverware Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

serverware

Superior Compute Performance with Low Power Consumption

The ServerWare® SB633-XD Server System Features an intel® Xeon® processors D-1500 delivering an optimal unit that combines high-performance, extreme low energy consumption at 35W, improved uptime, and increased confidence for a 1U rack servers system. It provides an innovative and exceptional reliable server for appliances, data center cloud deployments as well as business IT uses.

serverware, Intel, Xeon

Superior Compute Performance with Low Power Consumption Extreme Networking Flexibility

To safeguard your business and customers, Integrated as a standard with 4 x 10Gbe Network Port for superior networking capabilities that offers industry-leading protection, scalability and efficiency.

The ServerWare® SB633-XD Server delivers flexible networking  performance  and exceptional reliable server for appliances, data center cloud deployments as well as business IT uses.

serverware

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® SB633-XD features a 8 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes.  HW RAID SAS 12G and Intel® Xeon®  processors with support for up to 128GB of DDR4 memory, quad 1Gbe and  PCI Express expansion slots, the 688-XD has the ability to support the maximum amount of expansion cards while still offering a very small form factor.

The ServerWare® SB633-XD Specifications

The features of The ServerWare® SPD 633-XD is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® D processor, supporting up to 35 Watt TDPs, 128GB of memory, eight (8) 3.5″ internal SATA/SAS 6G/12G HDDs, and four10  GbE RJ45 ports. The ServerWare® SPD 633-XD provides more flexibility and scalability.

The ServerWare® SB633-XD

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

Pedestal Tower
340mm x 513mm x 170mm

MB Size (WxL)

170mm x 170mm

Processor

Intel® Xeon® processor D-1518,
Single socket FCBGA 1667;
4-Core, 8 Threads, 35W
(Higher Core/Threads Model Available)

Chipset

System on Chip

SAS Controller

Optional

Memory

Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots

Drive Bay

(8) hotswap 3.5″ HDD 6G/12G Bays with RV Protectionor (2) hotswap 2.5″ HDD/SSD
(2) Internal 2.5″ Bays

Onboard Storage Device

SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
4 SATA3 (6Gbps) port
Broadcom 2116 SW Controller 16 SATA3/SAS2

HDD Backplane

2 x 4 Ports 12G SAS Backplane

Expansion Slot

2 PCI-E 3.0 x8
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key

PCI Interface

PCI Express* 3.0

Network Controllers

2 RJ45 10GBase-T ports SFP+
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

Aspeed AST2400 BMC

I/O

(1) Power button
(1) Reset button
(2) USB 2.0 ports (2 Front)
(2) USB 3.0 ports (2 rear)
(1) VGA Port
(1) TPM Header
(1)1 COM Port (1 header)

Power Supply Unit

500W Fixed PSU

Operating Environment

Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support
