A Complete Line of ServerWare® Workstations
Designed for Professionals

    Business computing needs are becoming increasingly sophisticated. Applications that help automate design or iterate financial scenarios are becoming more demanding. Because of these needs, entry-level servers and workstations are becoming foundational to many businesses.
    At the same time, IT professionals are facing increasing demands for hardware, space, and energy efficiency. Specific solutions for integrated data center graphics workloads are emerging as additional ways to control costs while delivering application-optimized solutions. Business leaders recognize that the Internet has transformed their internal operations and that when they invest in technology, it can bring a competitive advantage, help grow their business, and manage costs while being more productive.
      Businesses of all sizes must keep up with market dynamics,
      evolving customer expectations, and the multitude of applications
    and data


ServerWare® SPD583 Servers for the Small Enterprise

      The WorkStation Productivity Servers

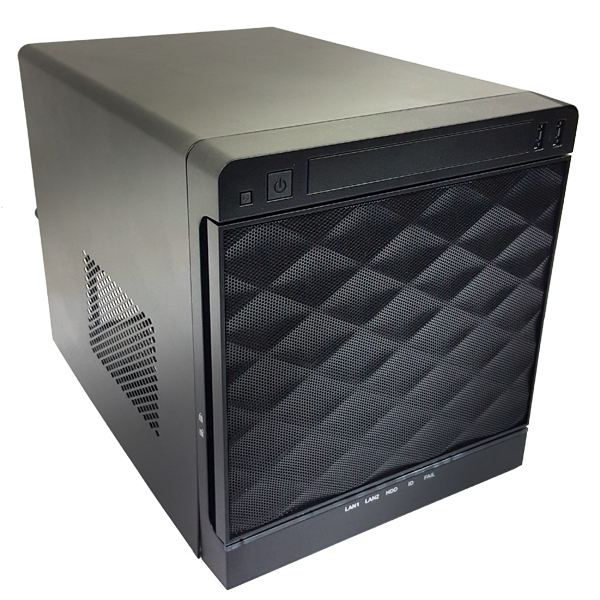

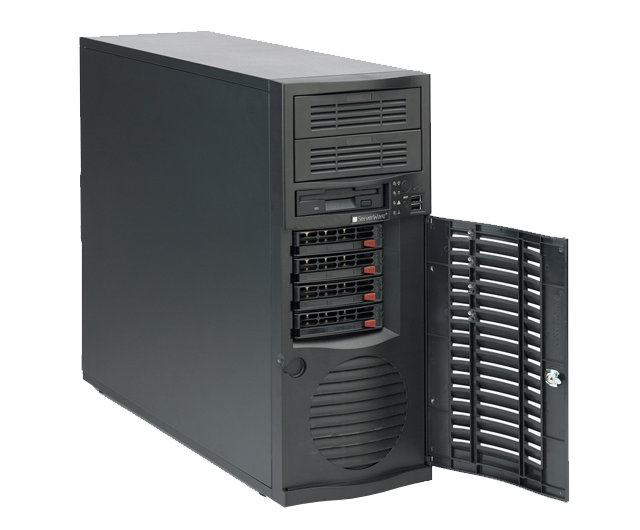

      The ServerWare® SPD 583 Pedestal Tower Server System provides you with extreme Reliability and High Performance. Designed for Small Business and enterprises, your tasks at hand get done with high productivity and efficiency.Turn your single ServerWare® SPD 583 Tower Server into multiple Servers with Virtual Machines that you can trust and rely upon.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The ServerWare® SPD583 Advantages

          Supports the latest Intel® Xeon ®  E3-1200V5 Processors
      ECC DDR3 Support upto 64GB
      Silent and elegantly suit your office environment
      True Server Class Computing with large storage capacity up to 18TB raw
      Additional add on’s capability for SATADOM and SSD integration
    Optional 12G SAS Support for higher IO performance

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® Servers SPD583 A Versatile Platform to Meet a Range of Business Needs.

    Built With Intel® Xeon® Processor E3-1200v5 Product Family

    SG13_icons


The ServerWare® SPD583 Specifications



The features of The ServerWare® servers SPD 583 is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® processor E3-1200/E3-1200 V5 product family, supporting up to 69 Watt and 95 Watt TDPs, 64GB of memory, four(3) 3.5″ internal SATA/SAS 6G/12G HDDs, and two GbE RJ45 ports. The ServerWare® SPD 583 provides more flexibility and scalability with two PCIe G2/G3 x8 expansion slot for additional 4 x 1Gbe Intel Network Ports or 10GbE SFP+ capability and 12G SAS Raid On Chip (ROC)/ IOC HBA controllers.

The ServerWare® SPD583 Business Computing with Speed, Power and Flexibility
DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) Tower Pedestal
423 x 190 x 435 mm
MB Size (WxL) 244mm x 244mm
Processor (1) Intel® Xeon® processor E3-1200V3 product family
Chipset Intel® C222 Express PCH
Memory (2) 240-pin DDR3 DIMM sockets, 8GB, 4GB, 2GB, 1GB
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

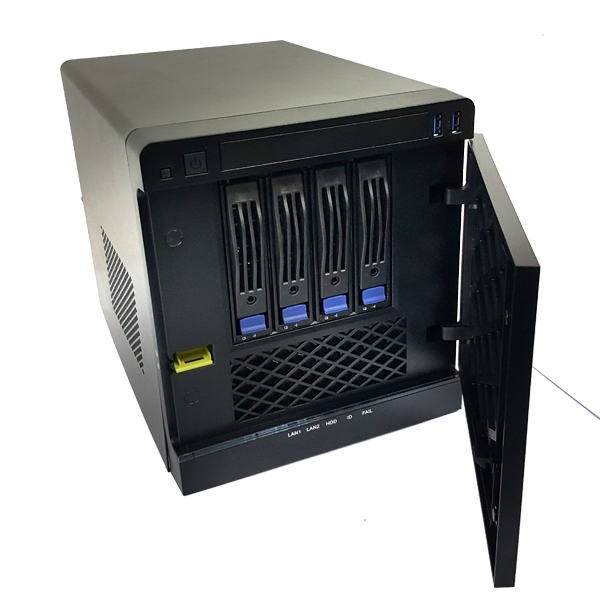

Drive Bay (3) SAS 6G/12G and SATA support 3.5″ HDD Bays
(1) SATA 2.5″ internal bays for SSD
SATADOM support
Onboard Storage Device (2)SATA3 (6Gbps) w/ RAID 0, 1
(4) SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
* (8)With SAS6G w/ Raid 0,1,10 on SAS model
HDD Connectivity 1 to 1,
SATA and SAS*
PCIe Expansion Slot (1) Low profile x16 slot PCIe Gen3(in x8)
(1) x8 PCIe Gen3 (in x8)
(1) x8 PCIe Gen2 (in x4) Only with SATA only option.*
Network Controllers Intel® i210AT dual port GbE Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2300 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Front I/O (2) USB port 2.0
(2) 2 USB Port 3.0
(1) Power button
(1) Reset button
Rear IO (1) D-sub VGA Port
(2) USB 2.0 Port
(2) USB 3.0 Port
(2) RJ45 Gigabit Ethernet LAN ports
(1) RJ45 Dedicated IPMI LAN port
– LAN Ports with LED (ACT/LINK LED and SPEED LED)
(1) Serial (COM1) Port
Power Supply Unit 450W Single
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

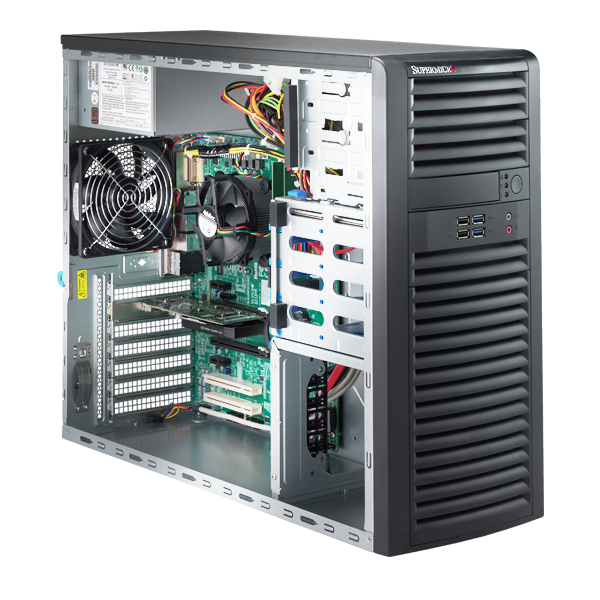

ServerWare® SPD584 Servers for the Small Enterprise

            Built for the Professionals. The ServerWare® SPD584 is design  for  CAD/CAM/CAE, Digital Imaging, Entry-Level Worksation, Medical Applications,  Oil & Gas, Simulation & Automation usage.
            It is complete with High Performance, Versatile Features & I/O Access that support the demanding needs of a professional.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The ServerWare® SPD584 Advantages

Key Features
• High Performance, Versatile
Features & I/O Access
1. Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5,
Intel® 6th Gen. Core™ i7/i5/i3 series
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
4. 2 PCI-E 3.0 x16 (x16/NA or x8/x8), 2 PCI-E 3.0 x1 (in x4), 2 PCI 32-bit slots5. I/O Ports: 1 DVI-D, 1 HDMI, 1 display port, triple display capable, ALC1150 HD Audio, 2 COM, 2 GbE LAN, 2 USB 3.0 + 2 USB 2.0 (front)
6. 4x 3.5″ internal HDD bays, 90° rotatable HDD cage design 4x 2.5″ internal SATA HDD (opt.)
7. 500W High Efficiency Power Supply


  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® Servers SPD584 A Versatile Platform to Meet a Range of Professional Needs.

    Built With Intel® Xeon® Processor E3-1200v5 Product Family

    SG13_icons

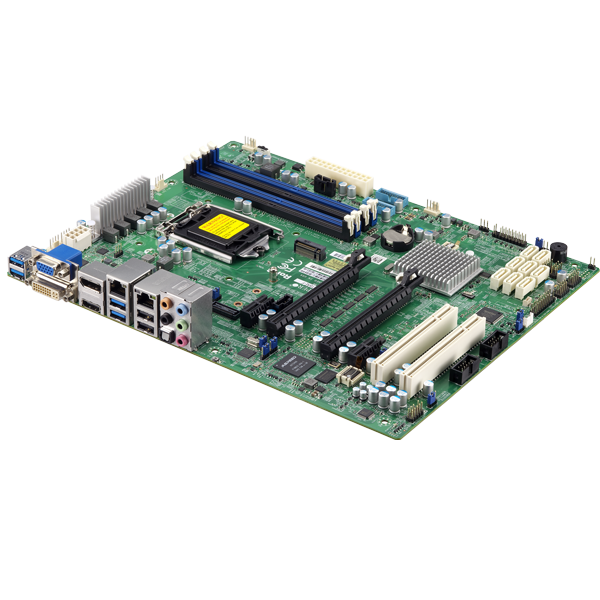

The ServerWare® SPD584 Specifications



The features of The ServerWare® Servers SPD 584 is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® processor E3-1200/E3-1200 V5 product family, supporting up to 69 Watt and 95 Watt TDPs, 64GB of memory, four(3) 3.5″ internal SATA/SAS 6G/12G HDDs, and two GbE RJ45 ports. The ServerWare® SPD 584 provides more flexibility and scalability with two PCIe G2/G3 x8 expansion slot for additional 4 x 1Gbe Intel Network Ports or 10GbE SFP+ capability and 12G SAS Raid On Chip (ROC)/ IOC HBA controllers.

The ServerWare® Servers SPD583 Business Computing with Speed, Power and Flexibility
DESCRIPTION SPECIFICATIONS
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v5,
  • CPU TDP up to 95W
System Memory
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
  • 16GB, 8GB, 4GB- 1.2V
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
Chipset
    • Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
  • RAID 0, 1, 5, 10 support
  • 8 SATA3 (6Gbps) ports from Intel® C236; RAID 0, 1, 5, 10
Network Controllers
  • Intel I210-AT + Intel PHY i219LM Ethernet Controllers
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 2 RJ45 Gigabit Ethernet LAN ports
Graphics
  • 1 HDMI, 1 DVI-D, 1 Display port (Triple Display)
  •  an Intel HD Graphics Integrated CPU is required for motherboard onboard video function



Audio
  • ALC 888S HD Audio
  • 7.1 HD Jacks
USB
  • 6 USB 3.0 ports (2 rear + 4 via headers)
  • 8 USB 2.0 ports (2 rear + 6 via headers)
  • 2 USB 3.1 (rear)
Serial Port / Header
  • 2 COM ports (headers)
Expansion Slots
  • 2 PCI-E 3.0 x16 slots –   Function as: x16/NA or x8/x8
  • 2 PCI-E 3.0 x1 (in x4) slots
  • 2 PCI 32-bit slots
System BIOS
  • 128Mb SPI Flash EEPROM with AMI® BIOS
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Dimensions and Weight
  • 424 x193x525mm
  • 40 lbs (18.1 kg)
Front Panel
  • Power On/Off button
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Information LED
  • 2 front USB 3.0 Ports
  • 2 front USB 2.0 Ports
  • 2 front HD/AC97 Audio Ports
Drive Bays
  • 4x 3.5″ Internal fixed drive bays
  • 2x 5.25″ peripheral device bays
Fans
  • 1x 12cm rear exhaust fan with Optimal Fan Speed Control
  • Optimized cooling technology for Whisper-Quiet Operation (21dB)
Power Supply Unit
500W AC power supply w/ PFC
AC Voltage
  • 100 – 240V, 50-60Hz, 7-3.5 Amp
+5V
  • 20 Amp
+5V standby
  • 3 Amp
+12V1
  • 17 Amp
+12V2
  • 17 Amp
+12V3
  • 17 Amp
+12V4
  • 18 Amp
-12V
  • 0.5 Amp
+3.3V
  • 15 Amp
Certification Bronze Level
Bronze Certified
[ Test Report
Health Monitoring
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
  • Low noise fan speed control
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI
Environmental Spec.
  • RoHS Compliant
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

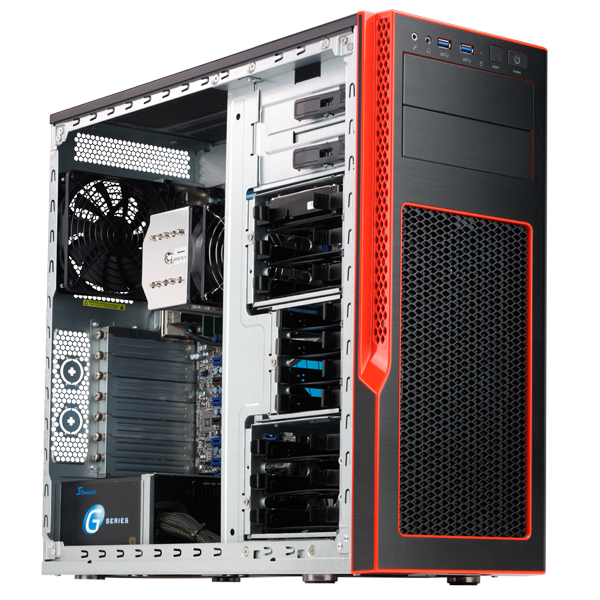

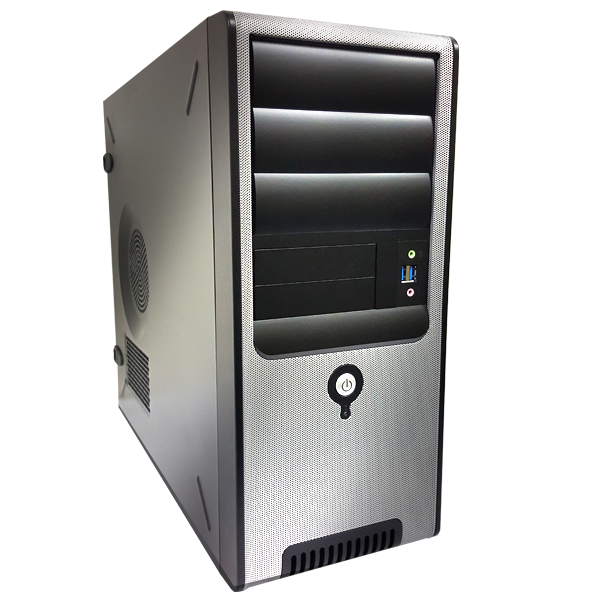

ServerWare® SPD585 Servers for the Small Enterprise

        The Creative’s Workstation
      The ServerWare® Servers SPD 585 Pedestal Tower Server System provides you with extreme Reliability and High Performance. Designed for Creative professionals and enterprises, your tasks at hand get done with high productivity and efficiency.Turn your single ServerWare® SPD 585 Tower Server into multiple Servers with Virtual Machines that you can trust and rely upon.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

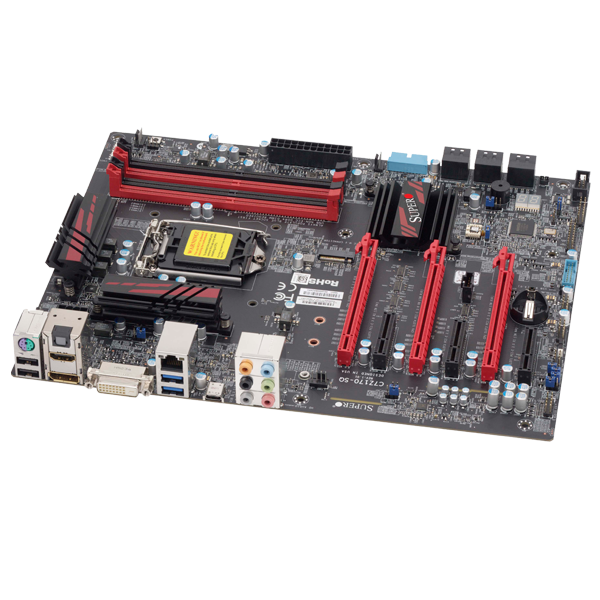

The ServerWare® Servers C585  Workstation for Simulation and Creation Design

1. Single socket H4 (LGA 1151) supports
Intel® 6th Gen. Core™ i7/i5/i3 series
2. Intel® Z170 Express Chipset
3. Up to 64GB Non-ECC UDIMM,
DDR4-3200MHz (OC), in 4 DIMM slots
4. 2 PCI-E 3.0 x16 (1 x16 or dual x8),
1 PCI-E 3.0 x16 (x4), 1 PCI-E 3.0 x4,
2 PCI-E 3.0 x1 (in x4) slots
5. 1 PCIe M.2; PCIe x4 2260/2280/22110
6. I/O Ports: 1 GbE LAN, 2 USB 3.0 (front)
7. Removable 3.5″ and 2.5″ HDD/SSD
cages with tool-less trays for
up to 10 drives; 2x 5.25″
Peripheral Drive Bays
8. 1 DVI-D, 1 DP (Display Port), 1 HDMI
9. HD Audio 7.1 channel connector by
Realtek ALC1150
10. 750W Multi-output Power Supply


  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® Servers SPD585
    A Versatile Platform to Meet a Range of Creative Professionals

    Built With Intel® Xeon® Processor E3-1200v5 Product Family

    SG13_icons


The ServerWare® SPD585 Specifications



The features of The ServerWare® Servers SPD 585 is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® processor E3-1200/E3-1200 V5 product family, supporting up to 69 Watt and 95 Watt TDPs, 64GB of memory, four(3) 3.5″ internal SATA/SAS 6G/12G HDDs, and two GbE RJ45 ports. The ServerWare® SPD 585 provides more flexibility and scalability with two PCIe  x8 expansion slot for additional 4 x 1Gbe Intel Network Ports or 10GbE SFP+ capability and 12G SAS Raid On Chip (ROC)/ IOC HBA controllers.

The ServerWare® Servers SPD583 Business Computing with Speed, Power and Flexibility
DESCRIPTION SPECIFICATIONS
Processor/Cache
  • Intel® 6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 115W TDP
  • Single Socket H4 (LGA 1151)
System Memory
  • 4x 288-pin DDR4 DIMM slots
  • Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
  • Frequency up to 3200MHz (OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
  • Support overclocking up to 3200MHz*
  • 16GB, 8GB, 4GB, 2GB, 1GB- 1.2V
On-Board Devices
  • Intel® Z170 Express Chipset
  • SATA3 via PCH w/ RAID 0, 1, 5, 10
  • Intel® i219V Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • ALC 1150 HD Audio
Input/Output
SATA
  • 6x SATA3 (6Gbps) ports
LAN
  • 1x RJ45 Gigabit Ethernet LAN port
USB
  • 6x USB 3.0 ports (2 rear, 4 via headers)
  • 6x USB 2.0 ports (2 rear, 4 via headers)
  • 1x USB 3.1 (10Gbps) Type C port (rear)
  • 1x Thunderbolt AIC header
Audio
  • 7.1 HD Jacks
Display
  • 1x DVI – D, 1x DP (Display Port), 1x HDMI
Serial Port / Header
  • 1x COM port (header)
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (1 x16 or dual x8) slots
  • 1 PCI-E 3.0 x16 (x4) slot
  • 1 PCI-E 3.0 x4 slot
  • 2 PCI-E 3.0 x1 (in x4) slots
  • 1 PCIe M.2 (PCIe x4 2260/2280/22110)
System Bios
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • DMI (SMBIOS) 2.7
  • ACPI 5.0
  • USB Keyboard support
Dimensions and Weight
Height
  • 18.1″ (460mm)
Width
  • 7.9″ (201mm)
Depth
  • 19.4″ (493mm)
Package
  • 24.9″ (H) x 14.2″ (W) x 24.0″ (D)
Weight
  • Net Weight: 22.27 lbs (10.1 kg)
  • Gross Weight: 28.22 lbs (12.8 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off Button
  • Reset Button
LEDs
  • Power LED
  • Hard drive activity LED
Ports
  • 2x USB 3.0 ports
  • 1x Earphone, 1x Microphone port
Drive Bays
Internal HDD
  • 3.5″ and 2.5″ HDD/SSD cages with tool-less trays for up to 10 drives
Peripheral
  • 2x 5.25″ Peripheral Drive Bays
System Cooling
  • 3x 12cm PWM fans
Power Supply
750W Multi-output Power Supply for Desktop, semi-modular cable output
AC Input
  • 100-240Vac, 50-60Hz
+5V
  • Max: 20A & Min: 0A
+12V
  • Max: 62A & Min: 0.1A (100Vac-240Vac)
+3.3V
  • Max: 20A & Min: 0A
+5V SB
  • Max: 2.5A & Min: 0A
-12V
  • Max: 0.3A
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +12V, +3.3V, +5V,+5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of five 4-pin fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

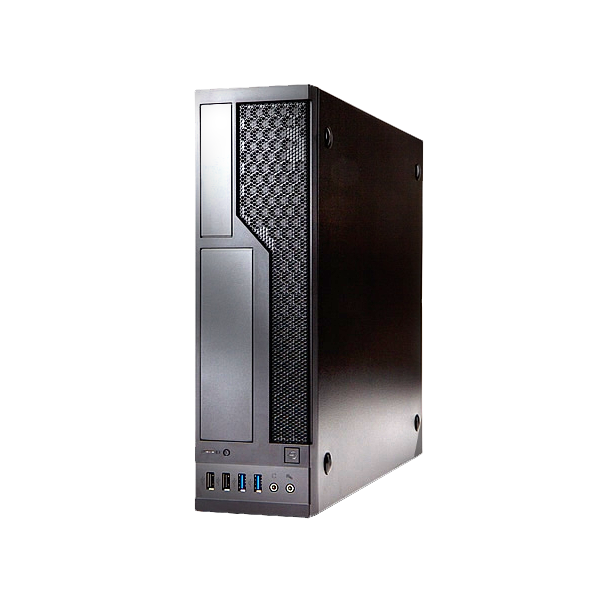

ServerWare® Servers SPD685 Server for the Small Enterprise

        The ServerWare® Servers SB685 SMB MicroServer System. Designed to over perform in all kind of business critical applications, whether they are computing and memory intensive, highly parallel, relying on storage or depending on expansions, The ServerWare® SB685 SMB MicroServer is a versatile and highly reliable solution for your business server computing needs.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The ServerWare® SPD685 Advantages

          Supports the latest Intel® Xeon®  E3-1200V5 Processors
      ECC DDR3 Support upto 64GB
      Silent and elegantly suit your office environment
      True Server Class Computing with large storage capacity up to 18TB raw
      Additional add on’s capability for SATADOM and SSD integration
    Optional 12G SAS Support for higher IO performance

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® Servers SPD685 A Versatile Platform to Meet a Range of Business Needs.

    Built With Intel® Xeon® Processor E3-1200v5 Product Family

    SG13_icons


The ServerWare® SPD685 Specifications



The features of The ServerWare® SPD 685 is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® processor E3-1200/E3-1200 V5 product family, supporting up to 69 Watt and 95 Watt TDPs, 64GB of memory, four(3) 3.5″ internal SATA/SAS 6G/12G HDDs, and two GbE RJ45 ports. The ServerWare® SPD 583 provides more flexibility and scalability with two PCIe G2/G3 x8 expansion slot for additional 4 x 1Gbe Intel Network Ports or 10GbE SFP+ capability and 12G SAS Raid On Chip (ROC)/ IOC HBA controllers.

Small Business Server Computing. Lowest TCO

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) DeskSide Server
334 x 96 x 370 mm
MB Size (WxL) 244mm x 244mm
Processor (1) Intel® Xeon® processor E3-1200V3/V4 product family
Chipset Intel® C222 Express chipset
Optional SAS Controller SAS3 (12Gbps) via LSI 3008
HW ROC RAID 0, 1, 10, support
Memory (4) 240-pin DDR4 DIMM sockets, 8GB, 4GB, 2GB, 1GB
Supports up to 32 GB DDR3 ECC uDIMM memory
Drive Bay (2) internal 3.5″ HDD 6G/12G Bays
Onboard Storage Device AHCI SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
HDD Backplane None:
PCIe Expansion Slot (1) PCI-E 3.0 x16
PCI Interface x8 PCI Express* 3.0
Network Controllers 2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Front I/O (2) USB port(*optional for RPS model)
(1) Power button
(1) Reset button
Power Supply Unit 300W SinglePSU
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

The ServerWare® SB686 Small Business Server

          The ServerWare® SB686 SMB MicroServer System. Designed to over perform in all kind of business critical applications, whether they are computing and memory intensive, highly parallel, relying on storage or depending on expansions, The ServerWare® SB686 SMB MicroServer is a versatile and highly reliable solution for your business server computing needs.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The ServerWare® SPD686 Advantages

            4 SAS/SATA HDD Hotswap Module
            Supports the latest Haswell E3-1200V3 Processors
            ECC DDR3 Support upto 16GB
            Silent and elegantly suit your office environment
            True Server Class Computing with large storage capacity up to 24TB raw
            Additional capacity with SATADOM and SSD integration

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SPD686 . INTELLIGENCE FOR THE BUSINESS MIND

    Built With Intel® Xeon® Processor E3-1200v5 Product Family

    SG13_icons


The ServerWare® SPD686 Specifications



The features of The ServerWare® SPD 686 is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® processor E3-1200/E3-1200 V5 product family, supporting up to 69 Watt and 95 Watt TDPs, 64GB of memory, four(3) 3.5″ internal SATA/SAS 6G/12G HDDs, and two GbE RJ45 ports. The ServerWare® SPD 686 provides more flexibility and scalability with two PCIe G2/G3 x8 expansion slot for additional 4 x 1Gbe Intel Network Ports or 10GbE SFP+ capability and 12G SAS Raid On Chip (ROC)/ IOC HBA controllers.

SB686. Intelligence For The Business Mind

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) Deskside
275 x 210 x 230 mm
MB Size (WxL) 170mm x 170mm
Processor (2) Intel® Xeon® processor E3-1200V3 or V4 product family
Chipset Intel® C224
Memory (2) 240-pin DDR3 DIMM sockets, 8GB, 4GB, 2GB, 1GB
Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM)
1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Drive Bay (4) SAS and SATA support 3.5″ HDD Bays
RV Protection in Hotswap Modules
(1) SATA 2.5″ internal bays for SSD
Onboard Storage Device SATA3 (6Gbps) w/ RAID 0, 1
SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
HDD Backplane (4)1 to 1
PCIe Expansion Slot (1) x16 ModeKit
PCI Interface x8 PCI Express* 2.0
Network Controllers Intel® i210AT dual port GbE Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2300 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2300
with 16MB DDR3 VRAM
Front I/O (2) USB port
(1) Power button
(1) Reset button
(4) SATA/SAS Hotswap Modules
(1) Lock/Unlock Front Bezel panel
Rear IO (1) D-sub VGA Port
(2) USB 2.0 Port
(3) USB 3.0 Port
(2) RJ45 Gigabit Ethernet LAN ports
(1) RJ45 Dedicated IPMI LAN port
– LAN Ports with LED (ACT/LINK LED and SPEED LED)
(1) Serial (COM1) Port
Power Supply Unit 300W Single
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

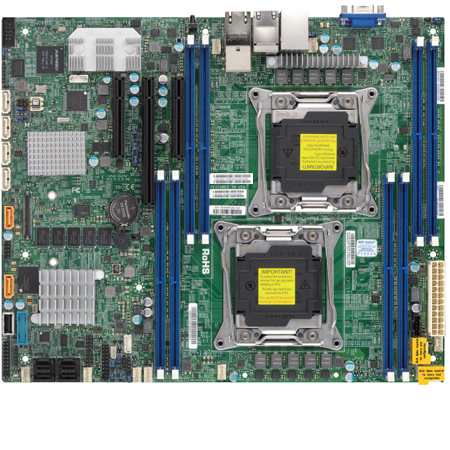

ServerWare® SPD733 Server for the Business

      The WorkStation Productivity Servers
        The ServerWare® SPD 733 workstation  are the ideal foundation for a powerful workstation workhorse. They deliver awesome power, dependable performance, and unmatched multiple I/O scalability for the most demanding tasks and future upgrades.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The ServerWare® SPD733 Advantages

            1. Dual socket R3 (LGA 2011) supports
            Intel® Xeon® processor E5-2600
            v4†/ v3 family; QPI up to 9.6GT/s
            2. Intel® C612 chipset
            3. Up to 1TB† ECC 3DS LRDIMM , up to
            DDR4- 2400†MHz ; 8x DIMM slots
            4. 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8
            5. Intel® i210 Dual GbE LAN ports;
            Intel® X540 Dual 10GBase-T ports
            6. Integrated IPMI 2.0 and KVM with
            Dedicated LAN
            7. 4x SAS3 (12Gbps) via LSI 3108; HW
            RAID 0, 1, 5, 6, 10, 50, 60
            SuperCap Option support
            8. 4x SATA3/SAS3; RAID Hotswap
            9. 2x USB 3.0 , 1x USB 2.0

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SPD733 A Versatile Platform to Meet a Range of Business Needs.

    Built With Intel® Xeon® Processor E3-2600v4 Product Family

    SG13_icons


The ServerWare® SPD733 Specifications



The features of The ServerWare® SPD 733 is simplified, tailored to meet the specific needs of small enterprises.Simple design tooless HDD and SSD integration . Powered by one Intel® Xeon® processor E3-2600V4 product family, 1TB of memory, four(3) 3.5″ internal SATA/SAS 6G/12G HDDs, and two GbE RJ45 ports + 2 x 10Gbe with Intel X540 chipset.

The ServerWare® SPD583 Business Computing with Speed, Power and Flexibility
DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) Tower Pedestal
423 x 190 x 435 mm
MB Size (WxL) 244mm x 244mm
Processor (1) Intel® Xeon® processor E3-1200V3 product family
Chipset Intel® C222 Express PCH
Memory (2) 240-pin DDR3 DIMM sockets, 8GB, 4GB, 2GB, 1GB
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Drive Bay (3) SAS 6G/12G and SATA support 3.5″ HDD Bays
(1) SATA 2.5″ internal bays for SSD
SATADOM support
Onboard Storage Device (2)SATA3 (6Gbps) w/ RAID 0, 1
(4) SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
* (8)With SAS6G w/ Raid 0,1,10 on SAS model
HDD Connectivity 1 to 1,
SATA and SAS*
PCIe Expansion Slot (1) Low profile x16 slot PCIe Gen3(in x8)
(1) x8 PCIe Gen3 (in x8)
(1) x8 PCIe Gen2 (in x4) Only with SATA only option.*
Network Controllers Intel® i210AT dual port GbE Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2300 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Front I/O (2) USB port 2.0
(2) 2 USB Port 3.0
(1) Power button
(1) Reset button
Rear IO (1) D-sub VGA Port
(2) USB 2.0 Port
(2) USB 3.0 Port
(2) RJ45 Gigabit Ethernet LAN ports
(1) RJ45 Dedicated IPMI LAN port
– LAN Ports with LED (ACT/LINK LED and SPEED LED)
(1) Serial (COM1) Port
Power Supply Unit 450W Single
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

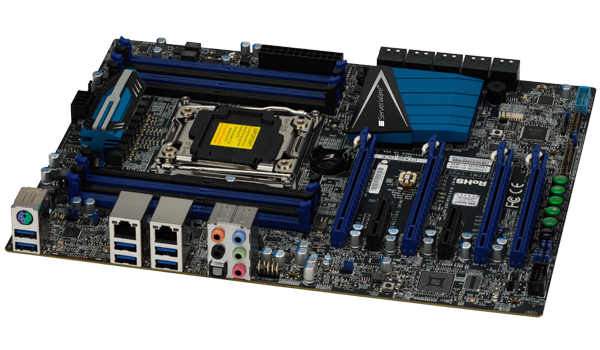

ServerWare® SPD735 Servers Worksation for Creation Design

      The WorkStation Creativity Servers
      The ServerWare® SPD 735 Pedestal Tower Server System provides you with extreme Reliability and High Performance. Designed for Creative Professionals and Studios, your tasks at hand get done with high productivity and efficiency.Turn your single ServerWare® SPD 735 Tower Server into a single powerful creative workhorse
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The ServerWare® SPD735 Advantages
Digital Imaging, Entry-Level Worksation, Simulation and Creation Design

            1. Single socket R3 (LGA 2011) supports
            Intel® Core™ i7 Processor Extreme
            Edition and X-Series, Intel® Xeon®
            processor E5-2600 v4†/ v3, E5-1600 v3
            2. Intel® X99 Chipset
            3. Up to 128GB non-ECC UDIMM DDR4,
            frequency up to 3300MHz (OC);
            8x DIMM slots
            4. 4 PCI-E 3.0 x16, 2 PCI-E 2.0 x1 (in x4)
            5. ALC 1150 HD Audio
            6. Removable 3.5″ and 2.5″ HDD/SSD
            cages with tool-less trays for
            up to 10 drives; 2x 5.25″
            Peripheral Drive Bays
            7. Dual GbE LAN with Intel® I210-AT
            8. 2x 12cm front cooling fans,
            1x 12cm rear exhaust fan
            9. 750W Multi-output Power Supply

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SPD735 Digital Imaging, Worksation, Simulation and Creation Design

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG13_icons


The ServerWare® SPD735 Specifications



ServerWare® SPD735 Servers Worksation for Creation Design. The WorkStation Creativity Servers. The ServerWare® SPD 735 Pedestal Tower Server System provides you with extreme Reliability and High Performance. Designed for Creative Professionals and Studios, your tasks at hand get done with high productivity and efficiency.Turn your single ServerWare® SPD 735 Tower Server into a single powerful creative workhorse

The ServerWare® SPD735 servers Business Computing with Speed, Power and Flexibility
DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) Tower Pedestal
460 x 201 x 493 mm
MB Size (WxL) 12″ x 9.6″, (30.5cm x 24.4cm)
Processor (1) Intel® Core™ i7 Processor Extreme Edition and X-Series, Intel® Xeon® processor E5-2600 v4/v3, E5-1600 v3 family (up to 160W TDP **)
Single Socket R3 (LGA 2011)
Chipset Intel® X99 Chipset
Memory 8x 288-pin DDR4 DIMM slots
Supports up to 128GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 8 DIMM slots
Frequency up to 3300MHz(OC) non-ECC DDR4 SDRAM 72-bit, 284-pin (UDIMM) gold-plated DIMMs
Support overclocking up to 3300MHz*
8GB, 4GB, 2GB, 1GB
1.2V
On-Board Devices
& Network
SATA3 (6Gbps) via Intel X99 controller
10x SATA3 ports: 6x iSATA (RAID 0, 1, 5, 10) and 4x sSATA
Intel® i210-AT Dual Port Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
RealTek ALC1150 High Definition Audio
Input / Output SATA3 : 10x SATA3 (6Gbps) ports
LAN : 2x RJ45 Gigabit Ethernet LAN ports
USB : 8x USB 3.0 ports (6 rear + 2 via header)
4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only)
Audio : 7.1 HD Jacks
Keyboard/Mouse : 1x PS/2 Keyboard/Mouse port
Serial Port / Header : 1x header
PCI-Express 4x PCI-E 3.0 x16 slots (run at 16/16/NA/8 or 16/8/8/8)
2x PCI-E 2.0 x1 (in x4) slotsPCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when Intel Core i7-5820K is installed
System BIOS 128Mb SPI Flash EEPROM with AMI BIOS
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Front Pane Power On/Off Button
Reset Button
Power LED
Hard drive activity LED
2x USB 3.0 ports
1x Earphone, 1x Microphone port
Drive Bays 3.5″ and 2.5″ HDD/SSD cages with tool-less trays for up to 10 drives
2x 5.25″ Peripheral Drive Bays
System Cooling 1x 12cm rear exhaust fan
2x 12cm front cooling fan
PC Health Monitoring Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
6-Phase-switching voltage regulator
Low noise fan speed control
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
PECI
Operating Environment / Compliance RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Power Supply Unit 750W Multi-output Power Supply for Desktop, semi-modular cable output
AC Input: 100-240Vac, 50-60Hz
+5V Max: 20A & Min: 0A
+12V Max: 62A & Min: 0.1A (100Vac-240Vac)
+3.3V Max: 20A & Min: 0A
+5VSB Max: 2.5A & Min: 0A
-12V Max: 0.3A
The Ultimate Productivity Solution

The Ultimate Productivity Solution

Highly customizable workstations with Intel Inside® provide performance and reliability for professional engineering and content creation applications.
