A Complete Line of ServerWare® Storage Servers.

      Today’s storage systems need to keep pace not only with the explosion of data volume, but also need to accommodate a wider range of data types and services than ever before. Companies are buried in information that’s siloed across business units and by different functions – in customer service systems, pricing systems, in supply chains. Complicating matters, critical information often resides outside companies in unstructured forms – like social media conversations. Our collective challenge today is effectively mining business value out of the huge amount of newly useful data, with even more coming fast in all areas of IT storage: block, file, object, and big data. If you want to stay competitive, you’ll likely have to tackle some data storage scaling projects soon. Newer approaches to large-scale storage can help.

Storage can be the difference from reaching the top or not

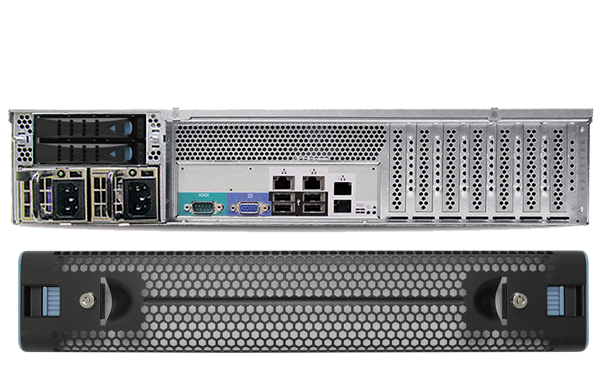

ST2E

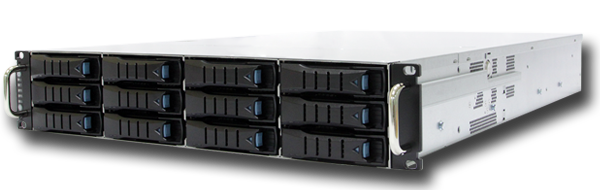

The ServerWare® ST2E Storage Server

          The ServerWare® ST2E features the new LSI 3108 Hardware RAID onChip  12G SAS/SATA to deliver evolved application acceleration benefits.Support for fully redundant 2 x SSD hotswap modules, The ServerWare ST2E can deliversignificant improvement in IOPS and reduction in latency with Intel® Cache Acceleration Software integration. Perfect for customers who need high I/O transaction and high bandwidth processing as well as solutions that reduce energy consumption and maintenance costs.
ServerWare® is SuperMicro® Distributor, Server, Storage, Network,


ServerWare® is SuperMicro® Distributor, Server, Storage, Network,

Designed to Opening the server storage bottleneck

        The ServerWare® ST2E is a 2U storage server that features 12 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes. The ST2EStorage Server provides for HW RAID SAS 12G and Intel E5 2600 v4 Series Xeon processors featuring exciting new Broadwell architecture. With support for up to 1TB of DDR4 memory, dual 1Gbe and dual 10GbE LAN ports and four free PCI Express expansion slots, the ST2E has the ability to support the maximum amount of low profile expansion cards while still offering a very small 2U form factor.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    ServerWare® is SuperMicro® Distributor, Server, Storage, Network, The ServerWare® ST2E Storage Server.
    Meeting the Needs of Cloud Storage

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG19_icons


The ServerWare® ST2E Specifications



The ServerWare® ST2E is based on Intel® Xeon® Processor E5-2600 v4 Product Family designed for high performance and reliability. With support for dual LGA2011 Xeons and four DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.
The ServerWare® ST2E  delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

ServerWare® ST2E – Powering Small Businesses and Everyone In-between

Description Specifications
Form Factor 2U
645mm x 483mm x 88mm
MB Size (WxL)
305mm x 254mm
Processor (2) Intel® Xeon® processor E5-2600V3, V4 product family
Chipset Intel® C612 Express chipset
SAS Controller SAS3 (12Gbps) via LSI 3108
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory (8) 240-pin DDR4 DIMM sockets, 64GB, 32GB, 16GB, 8GB, 4GB
Supports up to1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz
Drive Bay (12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) 2.5″ Internal Bays
Onboard Storage Device AHCI SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS : LSI 3108 SAS3 (12Gbps) controller;
2GB cache; HW RAID 0, 1, 5, 6, 10, 50, 60
HDD Backplane 1 x 12-port 12Gb SAS backplane with 28-PHY
expander and 3 SFF-8643 connectors
PCIe Expansion Slot 1x PCI-E 3.0 x16
2x PCI-E 3.0 x8
PCI Interface x8 PCI Express* 3.0
Network Controllers 2x RJ45 10GBase-T Intel X540 LAN ports
2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Front I/O (1) Power button
(1) Reset button
Power Supply Units 800W 1+1 redundant PSU PMBus 1.2 80+ Gold
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

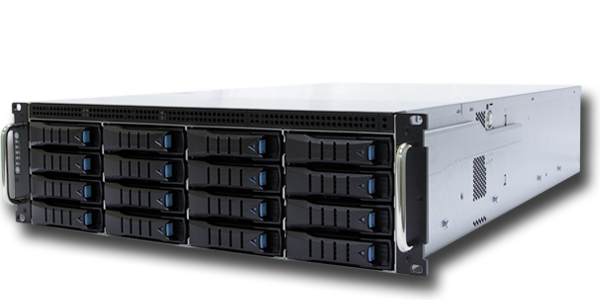

ST3E

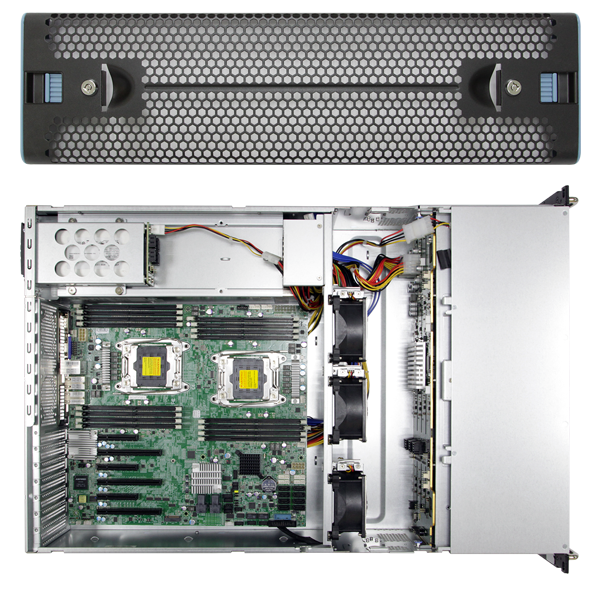

The ServerWare® ST3E Storage Server

            The ServerWare® ST3E is a 3U storage server that features 16 hot-swap hard drive bays for data storage and 2 additional rear bays for the OS drives. The 3E features an integrated LSI 3108 SAS 12G HW ROC Raid Controller and Intel® E5 2600 v4 Series Xeon processors based on exciting new Broadwell architecture. With support for up to 1TB of DDR4 memory, dual 10GbE and dual 1GbE LAN ports, three PCI Express 3.0 expansion slots, and 16 HDD in only 3U of space,
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The Very Defintion of a Mainstream Storage Server

      Selectable or custom OS
      High HDD Density Rackmount Storage Server
      Support for 10TB HDD for maximum storage capacity
      IPMI w/KVM over LAN for Remote Server Management
      SAS 12G Storage Support
      Intel E5-2600 v4 Series Support
      1TB DDR4 Memory Support
          Intel® X540 Dual port 10GBase-T
          Intel® i210 1000BaseT Network port
      RAID 0, 1, 5, 6, 10, 50, 60 Configurable
        Hardware RAID w/ Optional SuperCap
        800W Redundant power supply
      JBOD expansion without the need for an additional RAID controller
    Supports DAS Expansion with HBA

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® ST3E Storage Server.
    Meeting the Needs of Cloud Storage

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG19_icons


The ServerWare® ST3E Specifications



The ServerWare® ST3E is based on Intel® Xeon® Processor E5-2600 v4 Product Family designed for high performance and reliability. With support for dual LGA2011 Xeons and four DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.
The ServerWare® ST3E  delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

ST3E, Versatile Storage Expansion Beyond Conventions.

Description Specifications
Form Factor (LxWxH) 3U Rack Server
645mm x 483mm x 132mm
MB Size (WxL) 305mm x 254mm
Processor (2) Intel® Xeon® processor E5-2600V3, V4 product family
Chipset Intel® C612 Express chipset
SAS Controller SAS3 (12Gbps) via LSI 3108
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory (8) 240-pin DDR4 DIMM sockets, 64GB, 32GB, 16GB, 8GB, 4GB
Supports Up to 1TB† ECC 3DS LRDIMM
Drive Bay (16) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device AHCI SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS : LSI 3108 SAS3 (12Gbps) controller;
2GB cache; HW RAID 0, 1, 5, 6, 10, 50, 60
HDD Backplane 1 x 16-port 12Gb SAS backplane with 28-PHY
expander and 3 SFF-8643 connectors
PCIe Expansion Slot 1x PCI-E 3.0 x16
2x PCI-E 3.0 x8
PCI Interface x8 PCI Express* 3.0
Network Controllers 2x RJ45 10GBase-T Intel X540 LAN ports
2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Front I/O (1) Power button
(1) Reset button
Power Supply Units (1) 800W 1+1 redundant PSU PMBus 1.2 80+ Gold
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

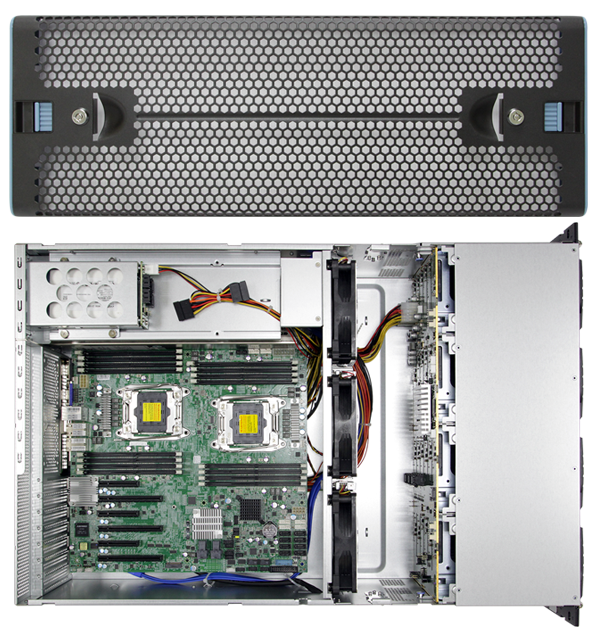

ST4E

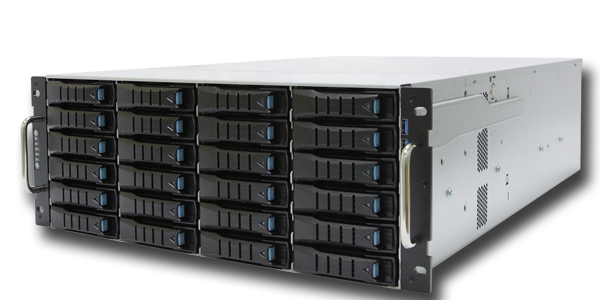

The ServerWare® ST4E Storage Server

                    The ServerWare® ST4E is a Cold Storage, Archival, High Performance Computing, High Available Storage System, Webservers, Big Data, Video Streaming orSecurity Video System, You name it. The ST4E HD are design to be extremely Flexible is application usage. Be it in mainstay computing or Industrial Computing application.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The Very Defintion of a 240TB* Storage Server

        (2) Intel i210 1000BaseT Network port
      (1) iKVM RJ45 Port
      (24) SAS Hotswap 3.5″Hardware 1G Raid 0,1,5,6,10.50, 60 with LSI 3108 Controller
      SAS 12G HDD Capability for maximum IO Performance
        Supports the latest Intel® E5-2600V4 Processors
    1200W 1+1 redundant PSU 80+ Gold

* based on 10TB Raw Capacity per HDD


  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® ST4E Storage Server.
    Meeting the Needs of Cloud Storage

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG19_icons


The ServerWare® ST4E Specifications



The ServerWare® ST4E is based on Intel® Xeon® Processor E5-2600 v4 Product Family designed for high performance and reliability. With support for dual LGA2011 Xeons and four DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.
The ServerWare® ST4E  delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

ST4E,Storage For All and Everthing

Description Specifications
Form Factor (LxWxH) 4U Rack Server
680mm x 483mm x 176mm
MB Size (WxL) 305mm x 254mm
Processor (2) Intel® Xeon® processor E5-2600V4 product family
Chipset Intel® C612 Express chipset
SAS Controller LSI 3108 SAS3 (12G) controller 1GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory (8) 240-pin DDR4 DIMM sockets, 64GB, 32GB, 16GB, 8GB, 4GB
Supports Up to 1TB† ECC 3DS LRDIMM,up to DDR4- 2400†MHz
Drive Bay (24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device AHCI SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
HDD Backplane 1 x 24-port 12Gb SAS backplane with 36-PHY
expander and 3 SFF-8643 connectors
PCIe Expansion Slot 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8),
1 PCI-E 3.0 x16, 1 PCI-E 2.0 x4 (in x8)
PCI Interface x8 PCI Express* 3.0
Network Controllers 2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Front I/O (1) Power button
(1) Reset button
2 x USB 3.0 port
Power Supply Unit 1200W 1+1 redundant PSU 80+ Gold
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

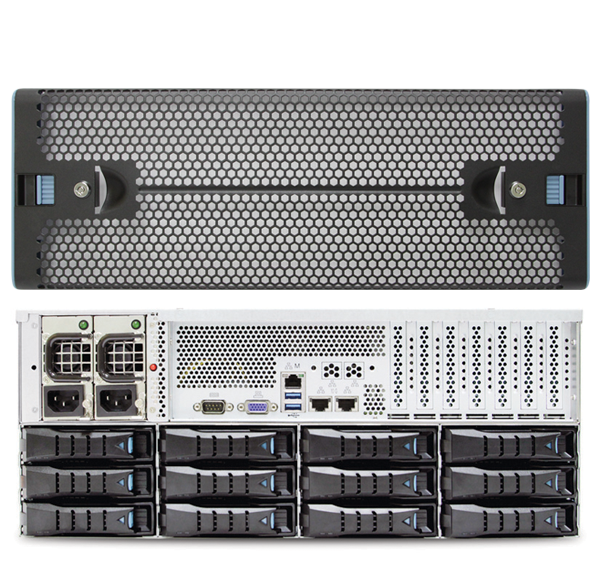

ST4EB

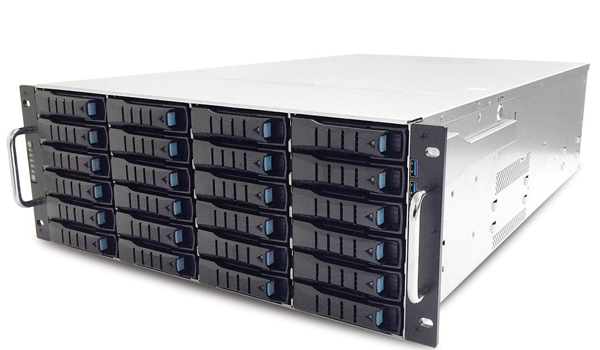

The ServerWare® ST4EB Storage Server

                The ServerWare® ST4E is a 4U dual-sided storage server that features 36 (24 front and 12 rear) hot-swap hard drive bays for data storage.ST4E features SAS 12G and Intel E5 2600 v4 Series Xeon processors based on exciting new Broadwell architecture. With support for up to 1TB of DDR4 memory, dual 10GbE LAN ports, six free PCI Express 3.0 expansion slots, and 36 HDD in only 4U of space, the ST4E is truely our most storage dense rackmount server to date.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The Bigger You Need The Bigger You Get

        Selectable or custom OS
        High HDD Density Rackmount Storage Server
        Support for 10TB HDD for maximum storage capacity
        IPMI w/KVM over LAN for Remote Server Management
        SAS 12G Storage Support
        Intel E5-2600 v4 Series Support
        1TB DDR4 Memory Support
        Intel® X540 Dual port 10GBase-T
        RAID 0, 1, 5, 6, 10, 50, 60 Configurable
        Redundant power supply
        Hardware RAID w/ SuperCap
        JBOD expansion without the need for an additional RAID controller
        Supports DAS Expansion with HBA

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® ST4E Storage Server.
    Meeting the Needs of Cloud Storage

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG19_icons


The ServerWare® ST4EB Specifications



The ServerWare® ST4EB is based on Intel® Xeon® Processor E5-2600 v4 Product Family designed for high performance and reliability. With support for dual LGA2011 Xeons and four DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.
The ServerWare® ST4EB delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

ST4EB, Extreme Demand Calls for Extreme Storage Conventions.

Description Specifications
Form Factor (LxWxH) 4U Rack Server
483mm x 645mm x 176mm
MB Size (WxL) 305mm x 254mm
Processor (2) Intel® Xeon® processor E5-2600V3 product family
Chipset Intel® C612 Express chipset
SAS Controller Dual Channel SAS3 (12Gbps) via LSI 3108
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory (4) 240-pin DDR4 DIMM sockets, 64GB, 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Supports up to 512 GB DDR4 ECC Registered DIMM memory (RDIMM)
Drive Bay (24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device AHCI SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS : LSI 3108 SAS3 (12Gbps) controller;
2GB cache; HW RAID 0, 1, 5, 6, 10, 50, 60
HDD Backplane 1 x 24-port 12Gb SAS backplane with 36-PHY
expander and 3 SFF-8643 connectors
1 x 12-port 12Gb SAS backplane with 28-PHY expander
and 3 SFF-8643 connectors
PCIe Expansion Slot 1x PCI-E 3.0 x16
2x PCI-E 3.0 x8
PCI Interface x8 PCI Express* 3.0
Network Controllers 2x RJ45 10GBase-T Intel X540 LAN ports
2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Front I/O (1) Power button
(1) Reset button
Power Supply Unit 1200W 1+1 redundant PSU 80+ Gold
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

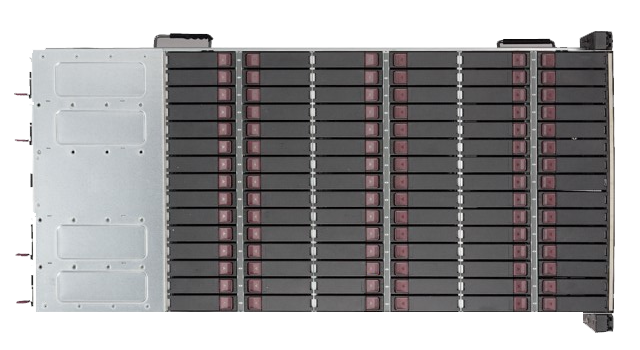

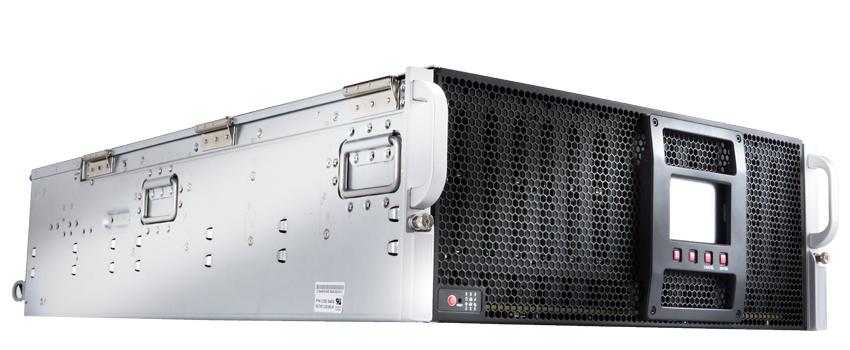

ST-4E-60N


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
The ServerWare® ST4E-60N Storage Server
    With the dramatic and ongoing growth of data, storage needs have entered a new era and promise only to escalate into the future. Conventional and legacy piecemeal storage platforms simply no longer represent a viable strategy, adding complexity in best-case scenarios, and inviting disaster under the worst of circumstances. The ServerWare® ST4E -60N offers a real and compelling storage platform  that allows organizations deploy scale-out storage solutions on their own terms.



    The combination of The ServerWare® ST4E -60N and Easily accesible storage software stacks provides a unique solution that lets organizations replicate, archive, search, and analyze their data from anywhere, without concern for the location of the data, while restoring data without fail.


Performance and Scalability. Advantages That Cuts Cost Curves in Storage.

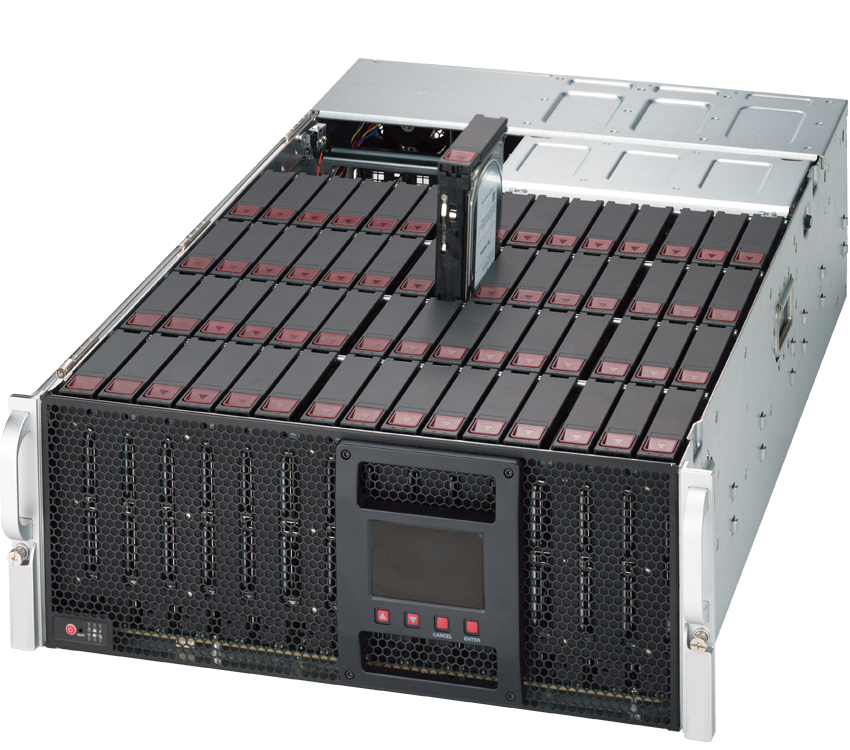

              The ServerWare® ST4E-60N is a 30.2″ depth 4U Rackmount server that features 60x 3.5″ Hot-swap SAS3/SATA3 drive bays for or high-capacity storage. Supports dual Intel® Xeon® E5-2600 v4 / v3 series processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory. The 6048R-E1CR60N SuperStorage Server is equipped with 1000W redundant titanium level power supply and five 80mm hot-swap redundant PWM cooling fans.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® ST4E-60N Storage Server.
    Application Optimized High Performance Expandable Storage Solutions

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG19_icons


The ServerWare® ST4E-60N Specifications



The ServerWare® ST4E-60N is based on Intel® Xeon® Processor E5-2600 v4 Product Family designed for high performance and reliability. With support for dual LGA2011 Xeons and four DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.
The ServerWare® ST4EB delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

ST4E-60N, Application Optimized High Performance Expandable Storage Solutions

Description Specifications
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
    Note:† BIOS version 2.0 or above is required
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes (

  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
Chipset
  • Intel® C612 chipset
SAS
  • SAS3 (12Gbps) via LSI 3108 (optional SuperCap)
  • HW RAID 0, 1, 5, 6, 10, 50, 60
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • SIOM support for flexible networking options
Graphics
  • ASPEED AST2400 BMC
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Form Factor
  • 4U Rackmount
Dimensions
  • 437 x 178 x 767
Front Panel
  • Power On/Off button
  • System Reset button
  • Power status LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat LED
    Power fail LED
  • 3.5″ TFT LCD pane
  • Full-Color display with 320×480 pixels
  • Real-time system status from IPMI
  • Easy read graphical User Interface
Expansion Slots
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slots
  • 6 NVMe bays (optional)
Drive Bays
  • 60x 3.5″ Hot-swap SAS3/SATA3 drive bays
  • 2x 2.5″ rear Hot-swap SATA drive bays
Backplane
  • SAS3/SATA3 single expander per backplane
Fans
  • 2x 80mm hot-swap rear exhaust cooling fans
  • Redundant cooling
Power Supply 2000W Redundant Power Supplies with PMBus

Total Output Power
  • 1000W/1800W/1980W/2000W
Input
  • 100-120Vac / 12-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
[ Test Report ]
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

Parts List – items included

Part Number Qty Description
 Motherboard / Chassis  MBD-X10DSC+  1  Super X10DSC+ Motherboard
 CSE-946STS-R2K05P  1  4U Chassis
 Add-on Card / Module  AOM-S3108M-H8L-P  1  sas3 roc mez for X10dsc
 Backplane  BPN-SAS3-946SEL1  2  30bay Top-load SAS3 12Gbps Single Expander BPN for 946S (use 2 for 60-bay)
 Backplane  BPN-SAS3-826TQ-B2B  1  2-Port 12Gbps Backplane for 2×2.5
 Cable 1  CBL-0481L 2  81CM 30AWG SATA S-S cable
 Cable 2  CBL-PWCD-057  2  Power Cord Type IEC (C14 to C13) 3 ft (14AWG), 15A, 250V,HF,RoHS/REACH,PBF
 Cable 3  CBL-PWEX-0861  1  Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S
 Cable 4  CBL-SAST-0855  2  SLIMLINE SAS, INT, 60CM, 15D-30F-15D, 32AWG
 Cable 5  CBL-PWEX-0862  1  Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
 Cable 6  CBL-PWEX-0863  1  Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
 Cable 7  CBL-CDAT-0728  2  4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
 Cable 8  CBL-PWEX-0864  1  Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S
 Cable 9  CBL-SAST-0833  2  SLIMLINE SAS, INT, 55MM, 32AWG
 Label  LBL-0108  1  CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
 Heatsink / Retention  SNK-P0048PS  2  2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
 Power Supply  PWS-2K05A-1R  2  1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH

Optional Part List

Part Number Qty Description
 3108 Cache Protection  BTR-CV3108-U1  –  LSI 3108 CacheVault kit (ROHS, Reach)
 6x NVMe Bays  AOC-SLG3-2E4R  1 NVMe AOC
 MCP-220-94607-0N  1  SC946S NVMe kits w/ cage, tray, cable, BPN (no NVMe
 CBL-SAST-0818  4 OCuLink v.91,INT,PCIe NVMe SSD, 55CM,34AWG
 CBL-SAST-0850  2  OCuLink to MiniSAS HD V.91, INT, PCIe NVMe SSD, 37CM, 15D15F7D, 34AWG
 Global Services & Support  OS4HR3/2/1  –  3/2/1-year onsite 24x7x4 service
 OSNBD3/2/1  –  3/2/1-year onsite NBD service
 Software  SFT-OOB-LIC  OOB Management Package (per node license)
 Software SFT-DCMS-Single  DataCenter Management Package (per node license)
 SIOM Network Card(s)  AOC-MGP-I2  –  SIOM 2-port GbE, Intel i350-AM2
 AOC-MGP-I4  –  SIOM 4-port GbE, Intel i350-AM4
 AOC-MTGN-I2S  –  SIOM 2-port 10G SFP+, Intel 82599ES
 AOC-MTG-I4S  –  SIOM 4-port 10G SFP+, Intel XL710

ST-4E-90L


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
The ServerWare® ST4E-90L Storage Server
    With the dramatic and ongoing growth of data, storage needs have entered a new era and promise only to escalate into the future. Conventional and legacy piecemeal storage platforms simply no longer represent a viable strategy, adding complexity in best-case scenarios, and inviting disaster under the worst of circumstances. The ServerWare® ST4E -90L offers a real and compelling storage platform  that allows organizations deploy scale-out storage solutions on their own terms.



    The combination of The ServerWare® ST4E -90Land Easily accesible storage software stacks provides a unique solution that lets organizations replicate, archive, search, and analyze their data from anywhere, without concern for the location of the data, while restoring data without fail.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

Performance and Scalability. Advantages That Cuts Cost Curves in Storage.

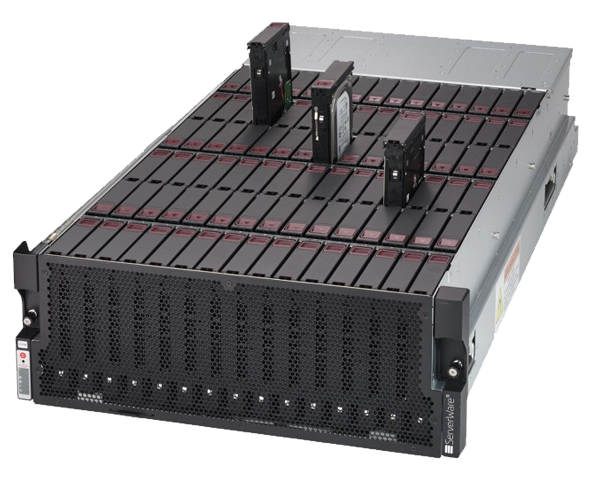

                The ServerWare® ST4E-90L is a  4U Rackmount server that features 90x 3.5″ Hot-swap SAS3/SATA3 drive bays for or high-capacity storage. Supports dual Intel® Xeon® E5-2600 v4 / v3 series processor, up to 1.0TB DDR4 ECC 3DS LRDIMM Memory. The ST4E-90L Storage Server is equipped with 4 x 1000W redundant titanium level power supply .

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® ST4E-90L Storage Server.
    Application Optimized High Performance Expandable Storage Solutions

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG19_icons


The ServerWare® ST4E-90L Specifications



The ServerWare® ST4E-90L is a 4U Rackmount server that features 90x 3.5″ Hot-swap SAS3/SATA3 drive bays for or high-capacity storage. Supports dual Intel® Xeon® E5-2600 v4 / v3 series processor, up to 1.0TB DDR4 ECC 3DS LRDIMM Memory. The ST4E-90L Storage Server is equipped with 4 x 1000W redundant titanium level power supply .

ST4E-90L, Application Optimized High Performance Expandable Storage Solutions

Description Specifications
CPU

  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
    Note:† BIOS version 2.0 or above is required
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes (

  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
Chipset
  • Intel® C612 chipset
SAS
  • 2 Onboard LSI 3008 SAS3 controllers
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Quad LAN with Intel® XL710 10G SFP+
  • SIOM card for multiple IO options
  • 4 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port


Graphics
  • ASPEED AST2400 BMC
USB

  • 2 USB 3.0 ports (rear)
  • 4 USB 2.0 ports (2 rear + 2 via headers)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Form Factor
  • 4U Rackmount
Dimensions
  • 447 x 178 x 906
Front Panel
  • Power On/Off button
  • Unit Identification (UID) button
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System information LED
  • Power fail LED
Expansion Slots
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slots
  • 6 NVMe bays (optional)
Drive Bays
  • 90x 3.5″ Hot-swap SAS3/SATA3 drive bays
  • 2x 2.5″ rear Hot-swap SATA drive bays
Backplane
  • SAS3/SATA3 single expander per backplane
Fans
  • 5x 8cm hot-swap redundant PWM cooling fans
Power Supply 1000W Redundant Power Supplies with PMBus

Total Output Power
  • 800W/1000W
Input
  • 100-127Vac / 9.8 – 7A / 50-60Hz
  • 200-240Vac / 7 – 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
[ Test Report ]
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

Parts List – items included

Part Number Qty Description
 Motherboard / Chassis MBD-X10DSC-TP4S  1 Super X10DSC-TP4S Motherboard
CSE-946E1C-R3KB  1  4U Chassis
 Add-on Card / Module AOM-SAS3-946E90-P  1 90 Bay Server Expander Board, 3 SAS3EXP48. Support 16-PHY to on board HBA for SAS3/SAS2/SATA3/SATA2
 Backplane BPN-SAS3-826TQ-B2B  1 2-Port 12Gbps Backplane for 2×2.5
 Backplane BPN-SAS3-946BA  3 90 Bay vertical-loaded bottom plane, separated to 3 zones, each carries 30 bays,,RoHS/REACH
 Cable 1 CBL-CDAT-0899 1 I2C,1X4F/P2.5 TO 1X4F/P2.5, 65CM,26AWG,BRN/BLK-SHUNT/ORG
 Cable 2 CBL-PWEX-0900  2 PWR EXT,2X4F/P4.2 TO 2X4F/P4.2,CPU 12V,17CM,16AWG
 Cable 3 CBL-SAST-0924  1 SLIMLINE SAS CABLE KIT SC946MB, SET OF 15,RoHS/REACH
 Cable 4 CBL-0303L  1 4 pin to 4 pin power cable, S-RA, 40CM. 20AWG
 Cable 5 CBL-0481L  2 81CM 30AWG SATA S-S cable
 Cable 6 CBL-PWCD-0579  4 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V,HF,RoHS/REACH,PBF
 Cable 7 CBL-PWEX-0751  1 Powerlug to 5.7 Radsok, black 12AWG, 85.5cm for SC946,RoHS/REACH
 Cable 8 CBL-PWEX-0753  1 Powerlug to 5.7 Radsok, yel 12AWG, 63.2cm for SC946,RoHS/REACH
 Cable 9 CBL-PWEX-0754 1 Powerlug to 5.7 Radsok, yel 12AWG, 85.5cm for SC946,RoHS/REACH
 Cable 10 CBL-CDAT-0716  2 4 Pin to 4 Pin I2C cable for JBOD chassis, 25cm, 26AWG,RoHS/REACH
 Cable 11 CBL-PWEX-0749  1 Powerlug to 5.7 Radsok, black 12AWG, 37cm for SC946,RoHS/REACH
 Cable 12 CBL-PWEX-0750  1 Powerlug to 5.7 Radsok, black 12AWG, 63.2cm for SC946,RoHS/REACH
 Cable 13 CBL-PWEX-0760  1 PWR EXT,2X4F/P4.2 TO 2X4F/P4.2,CPU 12V,13CM,16AWG,RoHS/REACH
 Cable 14 CBL-0047L  1 Front ctrl cable 20 PIN TO 20 PIN, PB FREE, 28AWG, 50cm
 Cable 15 CBL-PWEX-0752  1 Powerlug to 5.7 Radsok, yel 12AWG, 37cm for SC946,RoHS/REACH
 Heatsink / Retention SNK-P0058PSC  2 2U Passive CPU Heat Sink for SC946 90-bay Server
 Power Supply PWS-1K04A-1R  4 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)

Optional Part List

Part Number Qty Description
 Global Services & Support OS4HR3/2/1  –  3/2/1-year onsite 24x7x4 service
 OSNBD3/2/1  –  3/2/1-year onsite NBD service
 Software  SFT-OOB-LIC  OOB Management Package (per node license)
 Software SFT-DCMS-Single  DataCenter Management Package (per node license)
 SIOM Network Card(s)  AOC-MGP-I2M  –  SIOM 2-port GbE, Intel i350-AM2
 AOC-MGP-I4M  –  SIOM 4-port GbE, Intel i350-AM4
 AOC-MTGN-I2SM  –  SIOM 2-port 10G SFP+, Intel 82599ES
 AOC-MTG-I4SM  –  SIOM 4-port 10G SFP+, Intel XL710

The ServerWare® Support Plans
Easy Choices. Peace of Mind.

Standard Warranty

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charge
OS Support*
RAID Support
Network Support*
3 Years On-Site

3 Years Product Warranty
3 Years OnSite NBD 9 x 5 Response
Issue Diagnostic
Break Fix Support
Zero Support Charge
OS Support*
RAID Support
Network Support*
5 Years Standard Warranty

3 Years Product Warranty
3 Years Onsite NBD
extended 2 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charge
OS Support*
RAID Support
Network Support*
Only Applicable to new servers.
Mission Critical

3 Years Product Warranty
3 Years OnSite 24 x 7 Response
Issue Diagnostic
Break Fix Support
Zero Support Charge
OS Support*
RAID Support
Network Support*
Increase Your Storage Capacity Without Increasing Servers

Increase Your Storage Capacity Without Increasing Servers
