A Complete Line of ServerWare®
Server Computing

    At ServerWare®, our teams are formed to meet the challenges that each computing needs present. Wheather a call from an Animation Studio, a Data Center, An Analytics Project that requires High Performance Computing and Big Data Storage or even a SMB/SME that just needs a reliable simple server for book keeping. We meld our skills and knowledge to ensure that the right servers will give you, correctly and directly the best end experience.

Experiencing A Specific Task Requires A Specific Server

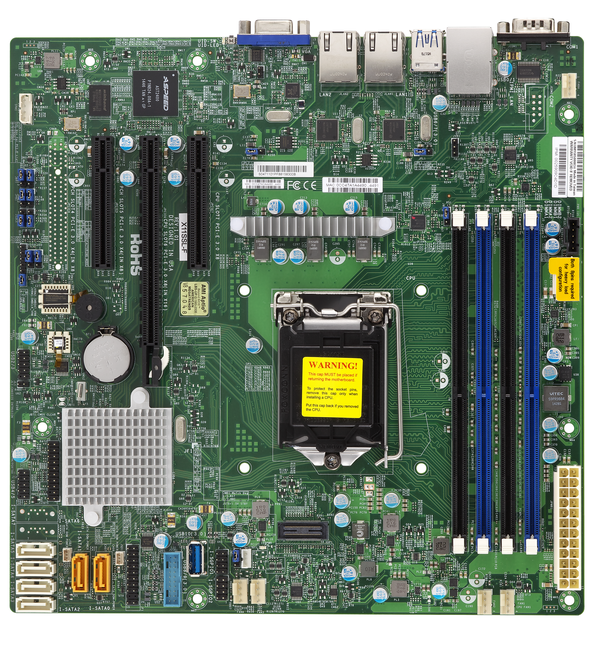

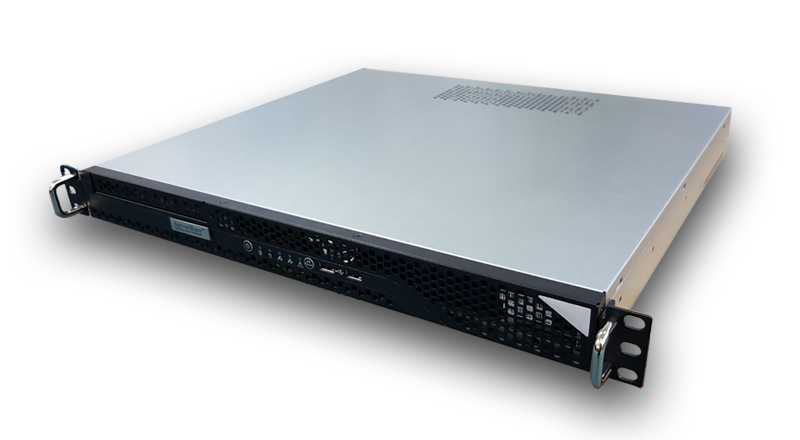

The ServerWare® SG13 1U Server System

    The industry most cost effective data center specific server driven by a dense 1U form factor that you can confidently deploy for virtualization, data base, or web server computing? The ServerWare® SG13 Server delivers a 1U chassis with intel® E3-1200V5 processors delivering an optimal unit that combines high-performance, low energy consumption, improved uptime, and increased confidence.
SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

The ServerWare® SG13 Advantages

    Customers want data center products designed for outstanding performance and reliability that will address their unique needs. With ServerWare® SG13 Server Systems featuring the latest Intel® Xeon® E3-1200V5 processor families you can count on trusted performance, quality and reliability to help solve the most complex business challenges.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SG13. A Versatile Platform to Meet a Range of Business Needs.

    Built With Intel® Xeon® Processor E3-1200v5 Product Family

    SG13_icons


The ServerWare® SG13 Specifications



The ServerWare® SG13 is right-sized for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG13 not only largely cuts cost, but also dramatically saves energy, datacenter floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.


  • Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v5.
  • Intel® C232 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM lots
  • Expansion slots: 1 PCI-E 3.0 x8,
  • Dual GbE LAN with Intel® i210-AT
  • 6x SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
  • I/O: 1x VGA, 1x COM, TPM header

  • 2x SuperDOM with built-in power
  • 5x USB 3.0 (2 rear + 2 via header + 1 Type A),
    6x USB 2.0 (2 rear + 4 via headers)
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • Form Factor  (LxWxH)381 x 482.6 x 44.4 mm
  • 300W Fixed Power Supply Unit
  • 2 x 3.5″ FF HDD Bays Supports SATA3
  • Standard 3 Years Warranty

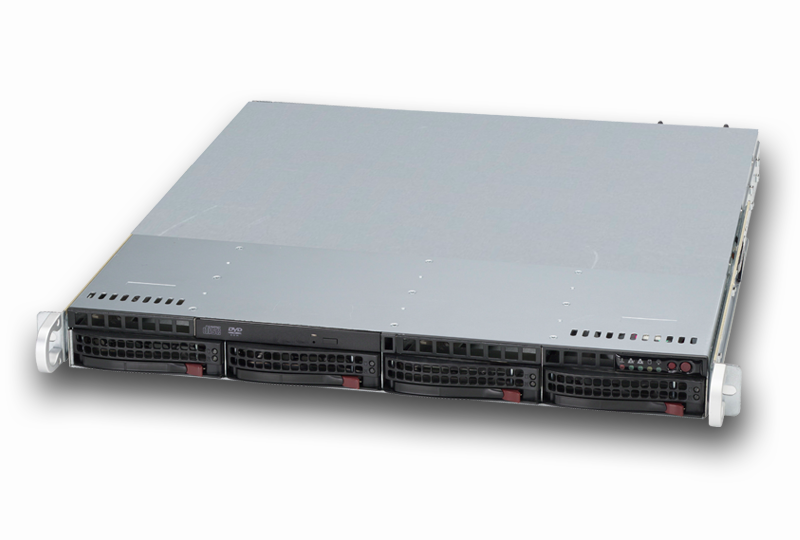

The ServerWare® SG18S 1U Server System

    The features of The ServerWare® SG18S are simplified, tailored to meet the specific needs of small and medium businesses and datacenters. Cable-free, 4 x HotSwap HDD allows for easy change over . Powered by one Intel® Xeon® processor E3-1200V5 product family, supporting up to 35 Watt and 80 Watt TDPs, 64GB of memory, (4) Four 3.5″ Hotswap SAS 6G/12G HDDs, and two GbE RJ45 ports.
SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

One Server. Highly Flexible

    Integrated together with a Raid Controller supporting Raid 0,1,10,10e based on LSI 3008 12G SAS guarantees you the perfect combination of data redundancy. The ServerWare® SG18S provides more flexibility and scalability with one PCIe G2/G3 x8 expansion slot for additional 4 x 1Gbe Intel Network Ports or 10GbE SFP+ capability.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SG18S Providing a Broad Application Platform that is both Powerful and Affordable

    Built With Intel® Xeon® Processor E3-1200v5 Product Family

    SG18S_icons


The ServerWare® SG18S Specifications



The ServerWare® SG18S is a short depth right-sized 1U rack server design for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG18S not only largely cuts cost, but also dramatically saves energy, datacenter floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.


  • Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v5.
  • Intel® C232 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • Expansion slots:
    1 PCI-E 3.0 x8,
  • Dual GbE LAN with Intel® i210-AT
  • 6x SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
  • I/O: 1x VGA, 1x COM, TPM header

    • 2x SuperDOM with built-in power
    • 5x USB 3.0 (2 rear + 2 via header + 1 Type A),
      6x USB 2.0 (2 rear + 4 via headers)
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • Form Factor  (LxWxH)503 x 437 x 43 mm
    • 600W Fixed HE Power Supply Unit
    • 600W Redundant Power Supply Unit 1+1 ( RPS Model)
    • 4 x 3.5″ FF Hotswap HDD Bays Supports SAS12G/SATA3
    • Standard 3 Years Warranty

The ServerWare® SG17D 1U Server System

    The ServerWare® SG17D is  a highly versaltile 1U rack server that packs full features into a short depth form factor. Powered by Intel® Xeon® E5-2600V4 Processor Family, the ServerWare® SG17D 1U Server supports dual Intel® Xeon® Processors, up to 1TB Reg ECC Memories. Comes with LSI® 3108 Hardware 12G Raid Controllers, Dual intel® X540 10GBs Network Port as well as Dual Intel® 1Gbs Network Ports, The ServerWare® SG17D has everything that you need for a powerful server computing.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

Powerful, Versatile and Flexible 2.5″ SSD

    Integrated together with a Raid Controller supporting Raid 0,1,10, 5 and 6 based on LSI® 3108 guarantees you the perfect combination of data redundancy. The ServerWare® SG17D provides more flexibility and scalability with one PCIe G2/G3 x8 expansion slot for additional controllers on top of its already available Dual Intel® X540 10G RJ45 network ports. + dual Intel® 1Gbe Networks Ports. Get 8 x 2.5″ SSD Performance.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SG17D. 2-socket spread-core, rack-optimized system for expansion flexibility supporting maximum compute, memory, and I/O capacity

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG17D_icons


The ServerWare® SG17D Specifications



The ServerWare® SG17D is right-sized for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG17D not only largely cuts cost, but also dramatically saves energy, datacenter floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.


  • Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • Up to 1TB ECC 3DS LRDIMM , up to
  • DDR4- 2400MHz ; 8x DIMM slots
  • 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8
  • Intel® i210 Dual GbE LAN ports
  • Intel® X540 Dual 10GBase-T ports
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 8x SAS3 (12Gbps) via LSI 3108; HW RAID 0, 1, 5, 6, 10, 50, 60. SuperCap Option support

  • 6x SATA3 (6Gbps); RAID 0, 1, 5, 10
  • 4x USB 3.0 (2 rear, 2 via header)
  • 3x USB 2.0 (2 via header, 1 Type A)
  • 2x Super DOM, 1x SATA DOM power connector
  • I/O: 1x VGA, 1x COM, TPM header
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • Form Factor  (LxWxH)507 x 437 x 43 mm
  • 600W Redundant Power Supply Gold Level Certified
  • 3 Years Standard Warranty


The ServerWare® SG18D 1U Server System

    The ServerWare® SG18D is  a highly versaltile 1U rack server that packs full features into a short depth form factor. Powered by Intel® Xeon® E5-2600V4 Processor Family, the ServerWare® SG18D 1U Server supports dual Intel® Xeon® Processors, up to 1TB Reg ECC Memories. Comes with LSI® 3108 Hardware 12G Raid Controllers, Dual intel® X540 10GBs Network Port as well as Dual Intel® 1Gbs Network Ports, The ServerWare® SG18D has everything that you need for a powerful server computing.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

Powerful, Versatile and Flexible 1U

    Integrated together with a Raid Controller supporting Raid 0,1,10, 5 and 6 based on LSI® 3108 guarantees you the perfect combination of data redundancy. The ServerWare® SG18D provides more flexibility and scalability with one PCIe G2/G3 x8 expansion slot for additional controllers on top of its already available Dual Intel® X540 10G RJ45 network ports. + dual Intel® 1Gbe Networks Ports.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SG18D. An Optimal Workload Performance Meets Intelligent Orchestration

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG18D_icons


The ServerWare® SG18D Specifications



The ServerWare® SG18D is right-sized for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG18D not only largely cuts cost, but also dramatically saves energy, datacenter floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.


  • Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • Up to 1TB ECC 3DS LRDIMM , up to
  • DDR4- 2400MHz ; 8x DIMM slots
  • 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8
  • Intel® i210 Dual GbE LAN ports
  • Intel® X540 Dual 10GBase-T ports
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 8x SAS3 (12Gbps) via LSI 3108; HW RAID 0, 1, 5, 6, 10, 50, 60. SuperCap Option support

  • 6x SATA3 (6Gbps); RAID 0, 1, 5, 10
  • 4x USB 3.0 (2 rear, 2 via header)
  • 3x USB 2.0 (2 via header, 1 Type A)
  • 2x Super DOM, 1x SATA DOM power connector
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • Form Factor  (LxWxH)503 x 437 x 43 mm
  • I/O: 1x VGA, 1x COM, TPM header
  • 600W HE Fixed Power Supply Unit
    600W Redundant PSU 1+1 ( RPS Model)
  • 3 Years Standard Warranty


The ServerWare® SG19 1U Server System

        The ServerWare® SG19 is designed with the dual processors multi cores Intel® Xeon® E5-2600v4†/ V3 processors, provides leading edge computing capabilities and expandability. Ideal for mainstream level and servers where efficiency is as critical as performance and reliability. Fully customize your requirements and maximize your return on IT hardware Investment.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

Design to deliver true performance and flexibility

      The ServerWare® SG19 provides flexible I/O scalability for today’s diverse data center application requirements. It features (2) 10Gbe LAN ans (2) x16 expansion slots where users can choose from 1GbE to 56GbE bandwidth, copper or fiber-optic cabling, basic Ethernet function or FCoE and ISCI SAN connectivity. The onboard SAS controller offers a 12G hardware roc raid controller with LSI 3108 and different RAID levels and data transfer bandwidth so customers can tailor the SAS controller for specific application needs.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SG19. An Innovative Technology for Complex Computing Workloads

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG19_icons


The ServerWare® SG19 Specifications



The ServerWare® SG19 is based on Intel® Xeon® Processor E5-2600 v4 Product Family designed for high performance and reliability. With support for dual LGA2011 Xeons and four DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply, The ServerWare® SG19 offer a variety of server features that are ideal for front-end enterprise,

ServerWare® SG19 Flexible 1U Server design for storage and memories

Description Specifications
Form Factor (LxWxH) 1U Rack Server
650mm x 437mm x 43mm
MB Size (WxL) 312mm x 330mm
Processor (2) Intel® Xeon® processor E5-2600v4†/ v3 family
Chipset Intel® C612 Express chipset
Memory 16x 288-pin DDR4 DIMM slots
Up to 2TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz
Drive Bay (4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device AHCI SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
HDD Backplane 1 to 1
PCIe Expansion Slot 2x Full-height Expansion Slots (Riser Card Required)
1x Low-profile Expansion Slot (Riser Card Required)
Network Controllers 2x RJ45 10GBase-T Intel X540 LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Integrated Graphics BMC integrated Aspeed AST2400
Power Supply Unit 700W Redundant HS 1+1
Front I/O (1) Power button
(1) Reset button
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

The ServerWare® SG12 1U Server System

              The ServerWare® SG12 is tailored for hyper-scale datacenters and software defined storage solution, features  hybrid tiered storage architecture  in an ultra dense hot-swappable 1U platform.



              The ServerWare® SG12 is a rackmount server based on Intel® Xeon® processor E5-2600 v3, v4 product family and with  up to 1TB memory capacity. It is equipped with 12x hot-swappable 3.5” disk drives and 4x hot-swappable 2.5” SATA SSD(7mm).
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

Sophisticated Hybrid Architecture

          Caching is a requirement not only in today’s software defined storage solution but also virtualization applications to boost performance and IOPs. ServerWare® is equipped with 4x SSDs in addition to 12x 3.5” high capacity disk drives, such hybrid architecture is ideal for tier storage planning which solid-state drives are required to accelerate IOPs and throughput, and not sacrificing large data storage capacity.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SG12. Ultra Dense 1U High computing storage server

    Built With Intel® Xeon® Processor E5-2600V4 Product Family

    SG12_icons


The ServerWare® SG12 Specifications



The ServerWare® SG12  features 12 hot-swappable 3.5” disk drives and 4 SSDs in a 1U chassis, delivering excellent computing performance using a dual Intel® Xeon® E5-2600 v3, v4 processor architecture. ServerWare® SG12  provides both extreme storage density and computing power to hyper scale cloud data centers which require not only the large storage capacity but also enterprise class computing capability. It helps IT managers to optimize overall rack and data center space. With its innovative hot-swappable drive design, ServerWare®  allows service technicians to service drives with minimum efforts and little to no downtime.

ServerWare® SG12 Hybrid Scale-Out High Computing Storage Server

Description Specifications
Form Factor (LxWxH) 1U Rack Server
881 x 448.2 x 43.2mm
Storage (12) 3.5″/2.5″ hot-plug 12Gb/s SAS or 6Gb/s SATA HDD/SSD
(4) 2.5″ hot-plug 7mm 6Gb/s SATA SSD
(1) Internal SATA DOM
Expansion Slot (1) SAS Mezzanine x8
(1) OCP LAN Mezzanine slot x8
Front I/O (1) USB 2.0 port
Power Supply 700W Platinum PSU, 1+1 redundant power supplies, 100- 240V AC
Fan (6) 40x56mm Dual rotor fan
System Management IPMI v2.0 Compliant, onboard “KVM over IP,” Quanta System Manager (QSM)/Quanta DataCenter Manager(QDCM) (optional)
Processor
Processor Type: Intel® Xeon® processor E5-2600 V3, V4 family
Max. TDP Support: 135W
Number of Processors: 2
Internal Interconnect: 6.4 / 8.0/ 9.6 GT/s
L3 Cache: Up to 45MB
Chipset Intel® C610
Memory
Memory Type : 2400/2133/1866/1600/1333 MHz DDR4 RDIMM
Total Slots : 16
Capacity: Up to 256GB RDIMM
Memory Size : 32 GB, 16GB, 8GB RDIMM
Network Controller
LOM: Intel® I350 dual-port 1 GbE
Dedicated 10/100/1000 management port
Optional NIC (more options refer to the CCL)
Intel® I350 dual-port OCP mezzanine
Intel® X540 dual-port 10GbE BASE-T OCP mezzanine
Intel® 82599ES dual-port 10G SFP+ OCP mezzanine
Mellanox CX3PRO dual-port 10G SFP+ OCP mezzanine
Storage Controller
Onboard: Intel® 610:
(10) SATA 6Gb/s ports; SATA RAID 0, 1, 10
Optional Controller (more options refer to the CCL)
LSI® 3008 12Gb/s SAS mezzanine, RAID 0,1,10 (option)
LSI® 3108 12Gb/s RAID mezzanine, RAID 0, 1, 5, 10. RAID 6 with additional RAID key (option)
OnBoard Storage (1) SataDOM
Video Integrated AST2400 with 8MB DDR3 video memory
Rear IO (2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1GbE RJ45 ports
(1) GbE RJ45 management port
TPM TPM 2.0
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH
Weight (Max. Configuration) 28.5kg

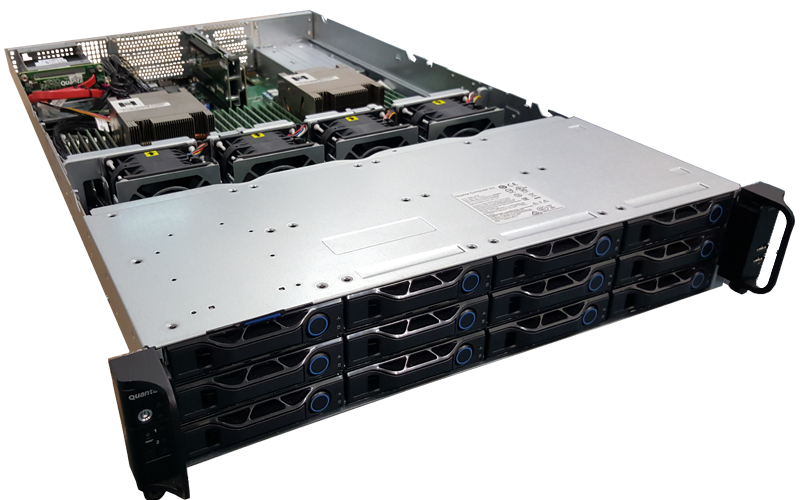

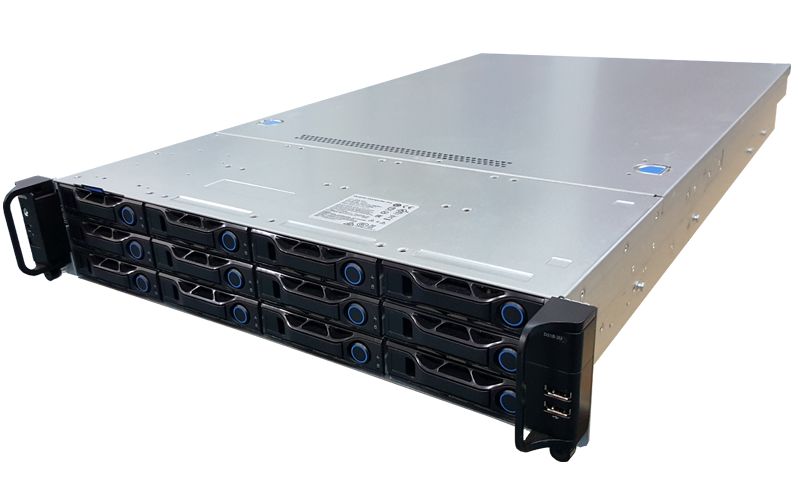

The ServerWare® SG2NV 2U Server System

                      ServerWare® SG2NV provides flexible I/O scalability for today’s diverse data center application requirements. It features OCP LAN mezzanine card solutions in addition to dual GbE or 10GbE LAN on Motherboard (LoM). With various controller vendors and different speed and technology options, customers can choose from GbE to 56GbE bandwidth, copper to fiber-optic cabling, basic Ethernet function to FCoE and ISCI SAN connectivity. The on-board SAS controller offers multiple SAS mezzanine card options, with different RAID levels, and data transfer bandwidth , so customers can tailor the SAS controller for specific application needs.
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

Full-Featured Design for Demanding Storage and Computing Workload

    With 24 dual in-line memory (DIMM) slots, ServerWare® SG2NV offers non-latency support to virtualization environments that require the maximum memory capacity. In addition to twelve 3.5” front-access, hot-swappable HDDs, the D51B-2U also has two 2.5” PCIe (NVMe) SSD bays and two 2.5” SATA HDD bays on the rear side for extra caching or OS support without sacrificing storage capacity.

  • Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

    intel.web.128.128_Xeon_BadgeThe ServerWare® SG2NV. Full-Featured Energy Efficient 2-Socket Server

    Built With Intel® Xeon® Processor E5-2600V4 Product FamilySG2NV_icons


The ServerWare® SG2NV Specifications



ServerWare® SG2NV is a general-purpose rackmount server designed for optimal performance and power efficiency. It supports up to 1.5 TB highly scalable memory capacity and up to twelve 3.5” or twenty-four 2.5” hot-swappable HDD for complex and demanding workloads, such as mail-server, database, e-commerce and high-performance computing (HPC).

Flexible 2U Server design for storage and networking

Description Specifications
Form Factor (LxWxH) 2U Rack Mount
745mm x 447mm x 87.5mm
MB Size (WxL) 244mm x 244mm
Processor (2)Processor Type: Intel® Xeon® processor E5-2600 v4 product family
Max. TDP Support : 145W
Internal Interconnect : 6.4 / 8.0/ 9.6 GT/s
L3 Cache : Up to 45MB
Chipset Intel® C610
SAS Controller SAS3 (12Gbps) via LSI 3108
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory Total Slots
24
Capacity
Up to 768GB RDIMM
Up to 1536GB LRDIMM
Memory Type
2133 MHz DDR4 RDIMM/ LRDIMM
Memory Size
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
Drive Bay (12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) NVMe SSD 2.5″ rear hotswap
(2) SSD SATA/SAS SSD 2.5″
Onboard Storage Device Intel® 610:
10x SATA 6Gb/s ports
SATA RAID 0, 1, 10
Support (2) SATADOM
HDD Backplane (24) 2.5″ hot-plug
(2) rear 2.5″ hot-plug SATA/SAS
(2) rear 2.5″ hot-plug NVMe SSD
PCIe Expansion Slot (1) PCIe Gen3 x16, LP MD-2
(2) PCIe Gen3 x8 FHHL
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
PCI Interface x8 PCI Express* 3.0
Network Controllers Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
IPMI IPMI v2.0 Compliant, onboard “KVM over IP”, Quanta System Manager (QSM)/ Quanta DataCenter Manager(QDCM) (optional) support
Integrated Graphics Integrated AST2400 with 8MB DDR3 video memory
Front I/O (2) USB port
(1) Power button
(1) Reset button
Rear I/O (2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) GbE RJ45 management port
(1) ID LED
(1) Port80 Debug Port (optional)
Power Supply Units 1+1 High efficiency redundant hot-plug PSU
TPM Yes (With TPM 1.2/ 2.0 option)
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH
Weight (Max. Configuration) 24.92 (kg)
54.94 (lbs)
Serverware® is Supermicro® distributor, Server, Storages, Network

A Quick Thought

How Do You Improve Your DataBase Performance



Add A Layer of SSD To To Your Server as Cache
