ServerWare® Accelerating Network Transformation
with SuperMicro®

              At ServerWare®, By fostering collaboration with SuperMiicro® , we seeks to increase ecosystem alignment, leading to the design of world-class solutions. With comprehensive network functions virtualization (NFV) and software defined networking (SDN) greatly in demand,we provide reference architectures, white papers, and solutions briefs to help build and enhance your network infrastructure. To seek the latest trends on network transformation all in one place.

A vibrant ecosystem to lead the network transformation of tomorrow

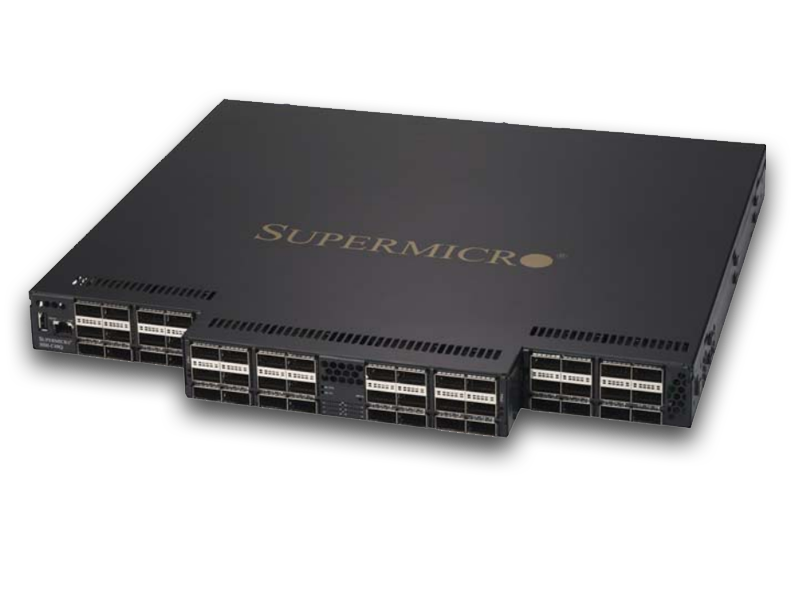

Supermicro Intel® Omni-Path 100Gbps 48-port Switch – 1U 48-port top-of-rack networking switch supports the 100Gbps Intel® Omni-Path Architecture (OPA)
    Supermicro SSH-C48Q 1U 48-port top-of-rack networking switch support the 100Gbps Intel® Omni-Path Architecture (OPA) providing a unique HPC cluster solution offering excellent bandwidth, latency and message rate that is highly scalable and easily serviceable.
    SSH-C48Q 48-port 100Gbps supporting Omni-Path Architecture leverages the Intel Scalable System Framework (SSF) to address evolving demands across high performance data analytics, machine learning, visualization, traditional modeling and simulation workloads. Designed specifically for HPC, the 48-port SSH-C48Q offers 9.6 Tb/s total fabric bandwidth. High scalability with the capability of 27,648 nodes in 2-tier configuration. Supermicro SSH-C48Q is designed to overcome the scaling challenges of large-sized clusters. The enhancements include:
High Message Rate Throughput.
    SSH-C48Q is designed to support high message rate traffic from each node through the fabric. With ever-increasing processing power and core counts in Intel® Xeon® and Intel® Xeon Phi™ processors, that means the fabric has to support high bandwidth as well as high message rate throughput.
48-port Networking Switch ASIC.
    SSH-C48Q 48-port design provides for improved fabric scalability, reduced latency, increased density, and reduced cost and power. SSH-C48Q offers 9.6 Tb/s total fabric bandwidth. High scalability with the capability of 27,648 nodes in 2-tier configuration.
Deterministic Latency.
    Features in Intel OPA will help minimize the negative performance impacts of large Maximum Transfer Units (MTUs) on small messages and help maintain consistent latency for interprocess communication (IPC) messages, such as Message Passing Interface (MPI) messages, when large messages-typically storage-are being simultaneously transmitted in the fabric. This will allow Intel OPA to bypass lower priority large packets to allow higher priority small packets, creating a low and more predictable latency through the fabric.
Enhanced End-to-End Reliability.
    Supermicro SSH-C48Q supporting Intel Omni-Path Architecture will also deliver efficient detection and error correction, which is expected to be much more efficient then forward error correction (FEC) defined in the InfiniBand standard. Enhancements include zero load for detection, and if a correction is required, packets only need to be retransmitted from the last link-not all the way from the sending node-which enables near zero additional latency for a correction.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
The Future of High Performance Networking Fabrics
    Current standards-based high performance fabrics, such as InfiniBand*, were not originally designed for HPC, resulting in performance and scaling weaknesses that are currently impeding the path to Exascale computing. Intel® Omni-Path Architecture is being designed specifically to address these issues and scale cost-effectively from entry level HPC clusters to larger clusters with 10,000 nodes or more. To improve on the InfiniBand specification and design, Intel is using the industry’s best technologies including those acquired from QLogic and Cray alongside Intel® technologies.

  • ServerWare® is SuperMicro® Distributor, Server, Storage, Network,

    Networking, Omni-Path, 100Gb, 100Gb/s, 40Gb, 10Gb, Supermicro,



    The SuperMicro® SSH-C48Q Networking Switch.

    Intel® Omni-Path Architecture
    Enabling Scalable, High Performance Fabrics


The SuperMicro® SSH-C48Q Specification.


High Performance, High Density, Low latency, 100-Gigabit Omni-Path Architecture, Meets the Most Demanding Application for HPC.

DESCRIPTION SPECIFICATIONS
Port Attributes:  – 48x 100 Gb/s ports – QSFP28
– RJ45 1G optional management port
– USB serial console port
Switching  – Switching capacity 9.6 Tb/s total fabric bandwidth
– Optimized high message rate
– Optimized error detection/correction and low latency
– Capability of 27,648 nodes in 2-tier configuration
– Virtual lanes: Configurable from one to eight VLs
plus one management VL
– Configurable MTU size of 2 KB, 4 KB, 8 KB, or 10KB
– Maximum multicast table size: 8192 entries
– Maximum unicast table size: 49151 entries
– Passive copper or active fiber cable
Management  – Out-of-band management card (optional)
– Built-in Fabric Manager
– Subnet Management Agent (SMA)
– Performance Management Agent (PMA)
– Enables Command Line Interface and Chassis
Management GUI through 10/100/1000 Base-T
Ethernet
– Enables Serial Console through USB Serial Port
– Supports Embedded Subnet Manager (ESM) and
Performance Manager (PM)
– Enables Network Time Protocol (NTP),
SNMP/MIBs, and LDAP
– FastFabric Toolset
– Fabric Management GUI
Dimensions  – 17.2″ W x 16.6″ D x 1.72″ H
Weight  – 16 lbs / 7.26 kg
Power  – Redundant hot-pluggable 750W Platinum Level power supplies
– AC Input: 100-127V/200-240 V, 50-60 Hz
– Power consumption:
210 W (Copper)
380 W (All max 3W Optical)
Air Flow – Foward direction
Operating Temperature – 0°C to 40°C (32°F to 104°F)
Manuals – Switch Installation Guide [Download]
– Switch Rack Installation Guide [Download]
– Quick Installation Guide [Download]
– Switch CLI Users Guide [Download]
– Management GUI User Guide [Download]
Firmware – Firmware Upgrade [ Download ]
Standard Parts List (Included in the box)    – Switch
– Power Cord – 2 (US style)
– USB Console Cable
– Mounting flanges (2)
– Miscellaneous screws
– Power supply dummy cover
– Rubber foot-pads
Compatibility – Supermicro Omni-Path Adapter Card AOC-SHFI-i1C

 Parts List

Part Number Quantity Description
SuperSwitch SSH-C48Q 1 Omni-Path Architecture 100G 48-port Switch
Power Supply PWS-750F-1R 2 1U 750W Redundant Power Supply Platinum Level

Optional Parts List

Part Number Description
Management Card AOM-QA338152G Out-of-Band management card including heat sink and mounting bracket
Rail Kit MCP-290-00063-0N Rails kit for rack mount
Copper Cable CBL-NTWK-0892-OPC05
CBL-NTWK-0892-OPC10
CBL-NTWK-0892-OPC15
CBL-NTWK-0892-OPC20
CBL-NTWK-0892-OPC30
Intel Omni-Path Passive Copper Cable QSFP28 30AWG 0.5M
Intel Omni-Path Passive Copper Cable QSFP28 30AWG 1M
Intel Omni-Path Passive Copper Cable QSFP28 26AWG 1.5M
Intel Omni-Path Passive Copper Cable QSFP28 26AWG 2M
Intel Omni-Path Passive Copper Cable QSFP28 26AWG 3M
Fiber Cable CBL-NTWK-0892-OPF30
CBL-NTWK-0892-OPF50
CBL-NTWK-0892-OPF100
CBL-NTWK-0892-OPF150
CBL-NTWK-0892-OPF200
CBL-NTWK-0892-OPF300
CBL-NTWK-0892-OPF400
CBL-NTWK-0892-OPF500
CBL-NTWK-0892-OPF600
Intel Omni-Path Active Fiber Cable QSFP28-MPO 3M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 5M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 10M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 15M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 20M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 30M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 40M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 50M
Intel Omni-Path Active Fiber Cable QSFP28-MPO 60M

Supermicro Layer 2 Ethernet Networking Switches Keep IT Green
      Supermicro extends its “We Keep IT Green®” initiative with a pair of powerful 52-port 1-Gigabit-per-second Energy-Efficient-Ethernet switches. The SSE-G2252 and its companion SSE-G2252P each provide 48 ports of 1-Gbps Ethernet connectivity with RJ45 connections as well as an additional four 1Gbps ports with SFP connectors. The SSE-G2252P model also offers support of IEEE-802.3at-compliant Power-over-Ethernet (PoE) devices with what is perhaps the most flexible power budget allocation in the industry. Up to 30 Watts can be supplied on any RJ45 port (subject to a maximum PoE budget of 400 Watts), thus making the SSE-G2252P capable of supporting the broadest range of commercial PoE devices . Both support the latest Energy Efficient Ethernet standard (IEEE 802.3az).
    These Layer 2 Networking switches offer extremely cost-effective networking in SMB or data center environments. They provide a choice of management interfaces using either a Web-based GUI or an industry compatible command-line-interface. The PoE model makes possible rapid installation of PoE-based wireless access points for conferences and shows, support for VoIP phones, as well as PoE surveillance cameras and a myriad of new PoE devices becoming available on the market.,/ul>
    The SSE-G2252 and SSE-G2252P also offer a full range of popular Ethernet features like Jumbo Frames, Link Aggregation, VLANs, and Quality of Service. All of this is done in a compact 1U form factor for maximum flexibility in rack-mount installation.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

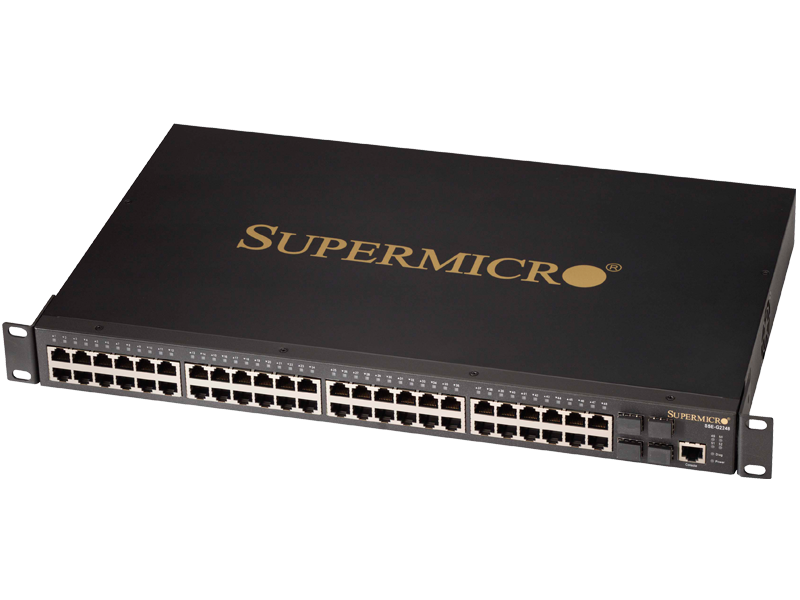

SSE-G2252 (52 ports)

48 RJ45 10/100/1000 ports and
4 SFP 1G ports
Non-blocking connectivity
Standard Layer 2 Features:
IPV4 and IPv6, QoS, 256VLANs
Link Aggregation and Jumbo Frame Support up to 9KB
RJ45 Console Port: Web Management GUI, CLI
Energy Efficient Ethernet (802.3az)
Power supply: 65W (83% efficiency)
1U form factor for flexible installation
Dimensions (W x D x H): 440mm x 379mm x 43mm
Weight: 6.8 lbs / 3.1 kg

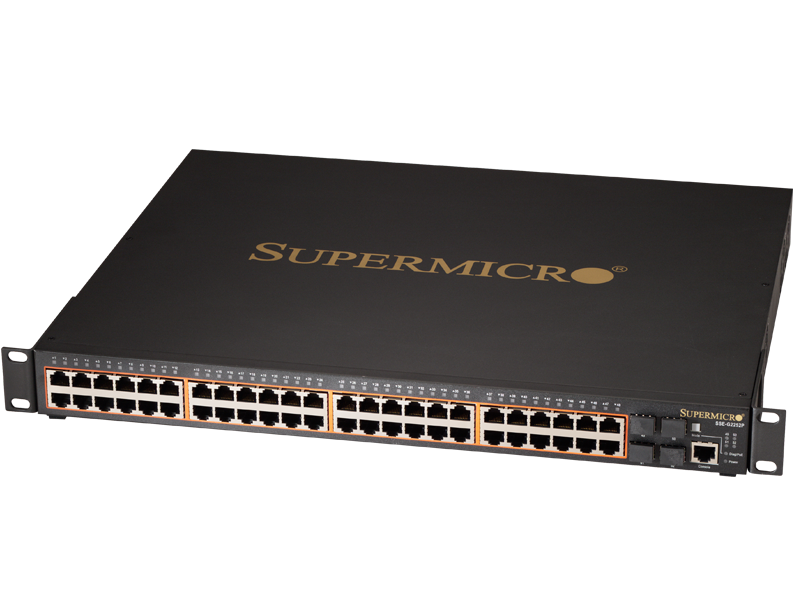

SSE-G2252P (52 ports; 48 w/ Power-over-Ethernet)

8 RJ45 10/100/1000 ports and
4 SFP 1G connectors
Non-blocking connectivity
Standard Layer 2 Features:
IPV4 and IPv6, QoS, 256VLANs
Link Aggregation and Jumbo Frame Support up to 9KB
RJ45 Console Port: Web Management GUI, CLI
Energy Efficient Ethernet (802.3az)
Power-over-Ethernet (802.3at)
– Up to 30W per port / Up to 400W total PoE budget
Power supply: 500W (87% efficiency)
1U form factor for flexible installation
Dimensions (W x D x H): 440mm x 379mm x 43mm
Weight: 11.7 lbs / 5.3 kg

Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

  • ServerWare® is SuperMicro® Distributor, Server, Storage, Network,

    Networking, Omni-Path, 100Gb, 100Gb/s, 40Gb, 10Gb, Supermicro,



    The SuperMicro® SSE-2252/2252P Switches

    Layer 2 Ethernet Switches Keep IT Green


The SuperMicro® SSH-C48Q Specification.


The SSE-G2252 and SSE-G2252P offers a full range of popular Ethernet features like Jumbo Frames, Link Aggregation, VLANs, and Quality of Service. All of this is done in a compact 1U form factor for maximum flexibility in rack-mount installation.

DESCRIPTION SPECIFICATIONS
Model:
SSE-2252
SSE-2252P ( with Power over Ethernet)
Compliance RoHS 6/6
Highlights Layer 2 Switching
Non-blocking connectivity
1U form factor for flexible installation
Summary 48 RJ45 10/100/1000 ports and 4 SFP 1G ports
Non-blocking connectivity
Standard Layer 2 Features:
IPV4 and IPv6, QoS, 256VLANs
Jumbo Frame Support up to 9KB
RJ45 Console Port for CLI: Web Management GUI, CLI
Energy Efficient Ethernet (802.3az)
Power-over-Ethernet (802.3at)
– Up to 30W per port / Up to 400W total PoE budget
Power supply: 500W (87% efficiency)
1U form factor for flexible installation
Dimensions (W x D x H): 440mm x 379mm x 43mm
Weight: 11.7 lbs / 5.3 kg
Switching Features: – 16K MAC address entries
– Auto negotiation on all ports
* Flow Control supported
* Provides IEEE 802.3x for full duplex mode
– 10/100Mbps mode > back pressure flow control half duplex mode
– Storm protection
* Broadcast
* Multicast
– Spanning tree
* IEEE 802.1D spanning tree
* IEEE 802.1s multiple spanning tree (32 instance)
* IEEE 802.1w rapid spanning tree
* Spanning Tree fast forwarding
* Loopback Detection
* Auto edge port
* BPDU filter/guard
* Root Guard
– VLANs support:
* IEEE 802.1Q VLAN
* Port-based VLAN
* MAC-based VLAN
* Protocol-based VLAN
– 16 entries per system
* IP-based VLAN
* 4K VLANs
* Support private VLAN Edge (Traffic Segmentation)
* Voice VLAN
* Guest VLAN
* VLAN Trunking
* GVRP
* Supports Multicast VLAN Registration (MVR)*:
– 5 MVR group
– 256 MVR source group (shared with IPMC table)
– Double tagging:
* IEEE 802.1 Q-in-Q
* IEEE 802.1ad provider bridge
* Unqualified learning and forwarding
– IGMP:
* IGMP snooping v1/v2/v3
* IGMP v1/v2 querier
* IGMP immediate leave
* IGMP filtering/throttling
* IGMP snooping leave proxy
* IGMP v1/v2/v3 proxy
– Link Aggregation
* IEEE 802.3ad with LACP
* Manual trunking
* Up to 12 aggregation groups are supported, and up to 8 ports per group
Security Features:  – Port Security (MAC-binding)
* Static port (MAC-based)
* Dynamic port (MAC-based)
– User/Password protected system management interface
* SNMP
* Web
* Telnet
– Access control list (512 rules)
* L2/L3/L4
* IP-MAC ACL
* Time-based ACL
– Extended IPv6 ACL
– RADIUS (RFC2138)
– TACACS+
– HTTPS/SSL
– SSH v1.5/v2.0
Quality of Service (QoS)  – Provides 4 queues per port
– Priority queue scheduling scheme
* Strict priority
* Deficit weighted round robin
– IPv4/v6 DiffServ
* L2/L3/L4 Traffic Classification / Priority Management
* IEEE 802.1p (COS)
* DSCP/TOS
* TCP/UDP port number
* IP SA/DA
* MAC SA/DA
* IPv6
– Queuing
* Port based CoS
* IEEE 802.1p VLAN information based CoS
* IP ToS/IP precedence based CoS
* DSCP based CoS
* TCP/UDP port base CoS
* QoS marking
– Packet prioritization based on ingress/egress ports’
pre-defined value listed below
* Trusted
* IEEE 802.1p/Q tag
* ToS field tag
* IPv4 DSCP
* Ethernet type field
* TCP and/or UDP port numbers
* SA and/or DA IP address
* ToS Field Tag
– Traffic shaping
* IP based (all ports)
* Port based (all ports)
* Port based shaping QoS aware
– Per port bandwidth management
* Resolution 64KB
– Ingress/Egress metering at 64KB increments
* Ingress/egress policer
* Ingress and egress co-work
– CPU interface filtering
Management Features  – RJ45-type console interface
– Management methods:
* Web-based
* Telnet (4 session)
* SNMP
– Software upgrade/download
– Multiple configuration file upload / download by TFTP and HTTP
– Dual image
– Auto upgrade
– IP address assignment
* Static IP assignment
* BOOTP and DHCP for IP address assignment
– DHCP functions
* DHCP client
* DHCP snooping
* DHCP Option 82 relay agent
* DHCP snooping Option 82
* DHCP dynamic provision option 66, 67
– DNS: Client, Proxy
– Telnet-Server
– SNMP v1/v2c/v3
– RMON
– Port mirroring
– VLAN mirroring
– MAC-based mirroring
POE Features
Model SSE-2252P Only
 – Compliant with IEEE 802.3af-2003
– Compliant with IEEE 802.3at-2009
– PD classification
– PoE on 10/100/1000Base-T ports only (port 1~48)
– Automatic load sensing – power control circuitry automatically
detects power over Ethernet on access point before providing
power
– Power start/stop (remote sense)
– Maximum output power with internal power supply – 400W:
* Simultaneously 48 ports can support max. of 8.5W per port
* Simultaneously 26 ports can support max. of 15.4W per port
* Simultaneously 13 ports can support max. of 30W per port
– Power feeding over 1/2 and 3/6 data twisted pair of Cat. 5
UTP/STP cable
– Independent overload and short-circuit protection for each port
– LED indicators for power status per port
– Per port configuration
* Power on/off
* Port priority configuration
– Support AC disconnect
– Support IEEE 802.3af/IEEE 802.3at MIB for power over
Ethernet function
Operating Conditions  – Operating temperature: 0 to 50°C
Dimension 440x379x43mm
Downloads – User’s Manual [ Download ]
– Installation Guide [ Download ]
Firmware – Firmware Upgrade [ Download ]
Standard Parts List (Included in the box)    – Switch
– Power Cord (US style)
– Console Cable
– CD-ROM with User’s Manuals
– Quick-Install Guide
– Mounting flanges (2)
– Miscellaneous screws
– Rubber foot-pads

Layer 3 Ethernet Switches [ Quick Reference Guide ]

Enterprise-Class Performance with Advanced switching capabilities in a 1U form factor. Highly cost-effective 1/10-Gigabit, 10-Gigabit Ethernet and 10/40-Gigabit Ethernet Networking – Standalone or Top-of-Rack.

    The Supermicro 1/10-Gigabit Layer 3 Ethernet Switches offer aggregation of 24 or 48 ports of 10/100/1000 BASE-T Gigabit Ethernet onto up to four 10-Gigabit Ethernet uplinks. This allows connectivity to 10GE routers, servers, backbones, and data centers. In addition, the 10-Gigabit models provide top-of-rack data-center friendly interconnection for high-speed server and storage systems as well as access to corporate or data center backbone networks. The 10-Gigabit switches provide high-speed connectivity between high-capacity servers and backbone networks. And the latest series of 10/40 Gigabit Ethernet switches take data center networking to a new level of performance.
    The 1U form factor gives users the ability to optimize deployment in wiring closet or top-of-rack environments. A comprehensive routing and protocol software suite ensures optimal performance in even the most demanding enterprise-class networking environments
    It is ideal for organizations with growing and consolidated data centers. Supermicro Blade server customers will further appreciate the common set of features and a management interface that matches those of the Supermicro 1/10G Layer 3 Ethernet Switch for the Blade.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-X3348S / SSE-X3348SR (54 ports)

• 48x ten-Gigabit Ethernet ports
• 4x forty-Gigabit Ethernet ports
• 2x one-Gigabit Ethernet ports
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces



• 48x ten-Gigabit Ethernet ports (RJ45)
• 4x forty-Gigabit Ethernet ports
• 2x one-Gigabit Ethernet ports
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• 1U form factor for flexible installation
• Redundant hot-pluggable power supplies
• CLI and Web GUI Management Interfaces

Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-X24S / SSE-X24SR (24 ports)

• 24x ten Gigabit Ethernet ports
• Switching Capacity: 480Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces



SSE-G24-TG4 (24 ports)

• 24x one Gigabit Ethernet links
– 24 RJ45 Copper ports and
–  4 RJ45/SFP Combo ports
• Switching Capacity: 136Gbps
• Wire-speed Layer 3 Routing
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces

Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-G48-TG4 (48 ports)

• 48x one Gigabit Ethernet links
– 48 RJ45 Copper ports and
–  4 RJ45/SFP Combo ports
• Switching Capacity: 184Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces


  • ServerWare® is SuperMicro® Distributor, Server, Storage, Network,

    Networking, Omni-Path, 100Gb, 100Gb/s, 40Gb, 10Gb, Supermicro,



    The SuperMicro® Layer 2/3 10G
    Enterprise Switches

    Enterprise-Class Performance with Advanced switching capabilities in a 1U form factor. Highly cost-effective 1/10-Gigabit, 10-Gigabit Ethernet and 10/40-Gigabit Ethernet Networking – Standalone or Top-of-Rack.


Supermicro® Advanced SDN Capable Switching – Superior Performance in 1U Top-of-Rack
    Supermicro® embraces the Open Networking arena with its line of “bare metal” Ethernet switches. Open Networking provides customers with the ability to maximize the efficient and flexible use of valuable data center resources while providing an ideal platform for managing and maintaining those resources in a manner in tune with the needs of the organization. Customers can select the “best of breed” hardware to match with their Operating System of choice.


The SuperMicro® SSE-G3648B / SSE-G3648BR. Open Network Switch
    Offering forty-eight 1Gbps RJ45 Ethernet ports and four 10Gbps SFP+ uplinks, the SSE-G3648B switch allows connectivity at 1Gbps to servers while aggregating traffic for high speed connection to high-bandwidth servers, to routers, and/or to other backbone network switches. The compact 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. The included pair of mounting flanges facilitates rack-mounting installation. And a reverse-airflow model, the SSE-G3648BR, is available for use in large data centers with alternating hot and cold equipment aisles. These switches are ideal for deployment in Data Center, Cloud and Enterprise environments with the capability of handling access for the most demanding applications.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-G3648B / SSE-G3648BR (52 ports)
      48x One-Gigabit Ethernet ports (RJ45)
      4x Ten-Gigabit Ethernet ports (SFP+)
      Wire-speed Layer 3 Routing
      1:1 Non-blocking connectivity
      1U form factor for flexible installation
      Data-Center friendly – regular and reverse airflow models
      Hot-pluggable power supplies – Optional Redundancy
      Bare metal – ONIE Installed
    Cumulus Linux Capable

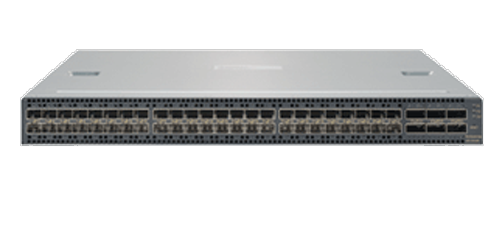

The SuperMicro® SSE-G3648S / SSE-G3648SR. Open Network Switch
    For higher performance the SSE-X3648S extends the product line – providing forty-eight 10-Gigabit Ethernet ports, thus allowing connectivity to 10GEservers, routers, and backbones. It also offers six ports operating at 40Gbps for access to high-speed backbone networks or storage servers. Also featuring a 1U form factor, an included rail kit, and a reverse-airflow model (the SSE-X3648SR), this switch is ideal for use in large data centers with alternating hot and cold equipment aisles. These switches are ideal for deployment in Data Center, Cloud and Enterprise environments with the capability of handling access for the most demanding applications.


SSE-X3648S / SSE-X3648SR (54 ports)
      48x Ten-Gigabit Ethernet ports
      6x Forty-Gigabit Ethernet ports
      Switching Capacity: 1284Gbps
      Wire-speed Layer 3 Routing
      1:1 Non-blocking connectivity
      1U form factor for flexible installation
      Redundant hot-pluggable power supplies
      Bare metal
    Cumulus Linux Capable
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

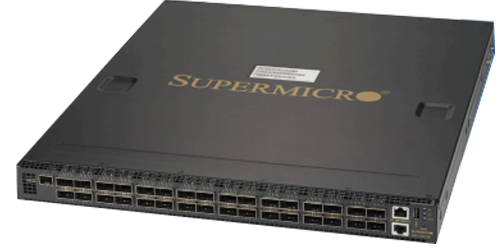

The SuperMicro® SSE-G3632S / SSE-G3632SR. Open Network Switch
    At the top of the Supermicro bare metal switch line is the powerful SSE-C3632S. With thirty-two Ethernet ports that can be configured at either 40Gbps or 100Gbps, this switch enables a robust layer-3 IP fabric for flexible layer-2 overlay in an optimized Ethernet architecture. For modern scale-out, leaf-and-spine data center network deployments, it is well-suited to provide the high-speed spine layer, giving scalable bi-sectional fabric bandwidth for leaf layer switches like the SSE-X3648S or even the SSE-G3648B. The ability to configure the physical Ethernet QSFP28 as either 40Gbps or 100Gbps port, gives optimum flexibility in high-speed physical connectivity between the spine and leaf layers in the data center Ethernet fabric. This switch also comes in a 1U form factor with an included rail kit and is available in a reverse-airflow model, the SSE-C3632SR.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-C3632S / SSE-C3632SR (32 ports)
      32x One-Hundred-Gigabit Ethernet ports
      -(Each optionally configured for forty-gigabit or 4x twenty-five gigabit)
      Wire-speed Layer 3 Routing
      1:1 Non-blocking connectivity
      1U form factor for flexible installation
      Data-Center friendly – regular and reverse airflow models
      Redundant hot-pluggable power supplies
      Bare metal – ONIE Installed
    Cumulus Linux Capable


    Pre-loaded with the Open Network Install Environment (ONIE), all three of these “bare metal” switches are ready for your networking operating system of choice. Supermicro recommends the use of Cumulus Linux – these switches are all listed on the Hardware Compatibility List of Cumulus Networks. Cumulus Linux is an OS for open networking incorporating a true Linux distribution with extensive networking features plus hardware acceleration of routing and switching functions. By using many of the same tools employed for servers, Cumulus Linux enables affordable scalability with clear CapEx savings and even greater OpEx savings; it unleashes rapid innovation via custom, open source or commercial Linux tools and applications. The embedded X86 Linux-based controller is particularly well suited for running the provisioning tools which are typically used for servers. Contact Cumulus Networks (www.cumulusnetworks.com) for more details and ordering information.

  • ServerWare® is SuperMicro® Distributor, Server, Storage, Network,

    Networking, Omni-Path, 100Gb, 100Gb/s, 40Gb, 10Gb, Supermicro,



    Supermicro® Advanced SDN Capable Switching

    Superior Performance in 1U Top-of-Rack


AOC-S25G-m2S
AOC-S25G-m2S (Coming Soon)

• Standard Low-Profile Dual-port 25GbE adapter
• Interface: 1 PCI-E 3.0 x8
• Port: 2 SFP28 ports
• Speed: 25Gbps per port
• Controller: Mellanox® ConnectX-4 Lx EN

AOC-SHFI-i1C
AOC-SHFI-i1C

• Standard Low-Profile Host Fabric adapter
• Interface: PCI-E 3.0 x16
• Port: 1 QSFP28 port
• Speed: 100G/port
• Controller: Intel® Omni-Path HFI ASIC

AOC-STG-b4S
AOC-STG-b4S

• Standard Low-profile 10GbE LAN card
• Interface: PCI-E 3.0 x8 (8GT/s)
• Port: 4 SPF+ ports
• Speed: 10Gbps
• Controller: Broadcom® BCM57840S

Networking, Omni-Path, 100Gb, 100Gb/s, 40Gb, 10Gb, Supermicro,
AOC-E10GSFPSR

• SFP+ Transceiver 1000Base-SX/10GBase-SR plug-in module
• Cabling Type: MMF 62.5/50µm
• Products Supported: 10Gb Ethernet Controller with SFP+

AOC-QLE2562
AOC-QLE2562

• Standard Low-profile QLogic 8Gb Fibre Channel card
with 2x SFP+ ports
• Interface: PCI-E 2.0 x8
• Port: 2 SFP+ ports
• Speed: 8Gbps per port

AOC-QLE2672
AOC-QLE2672

• Standard Low-profile QLogic 16Gb Fibre Channel card
with 2x SFP+ ports
• Interface: PCI-E 3.0 x4 and PCI-E 2.0 x8 (x8 physical connector)
• Port: 2 SFP+ ports
• Speed: 16Gbps per port

AOC-LPE12000M8
AOC-LPE12000M8

• Standard Low-profile Emulex 8Gb Fibre Channel card with 1x SFP+ port
• Interface: PCI-E 2.0 x8
• Port: 1 SFP+ port
• Speed: 8Gbps per port (FC)

AOC-LPE16000B-M6
AOC-LPE16000B-M6

• Standard Low-profile Emulex 16Gb Fibre Channel card with 1x SFP+ port
• Interface: PCI-E 3.0 x8
• Port: 1 SFP+ port
• Speed: 16Gbps per port (FC)

AOC-MCX353A-FCBT
AOC-MCX353A-FCBT

• Standard Low-profile Mellanox 56Gb/s FDR IB and 40GbE card
with 1x QSFP port
• Interface: PCI-E 3.0 x8
• Port: 1 QSFP port
• Speed: 56Gb IB or 40GbE/port

AOC-MCX354A-FCBT
AOC-QLE2562

• Standard Low-profile Mellanox 56Gb/s FDR IB and 40GbE card
with 2x QSFP ports
• Interface: PCI-E 3.0 x8
• Port: 2 QSFP ports
• Speed: 56Gb IB or 40GbE/port


Introduction To SuperMicro's High Performance Networking Switches

Introduction To SuperMicro’s High Performance Networking Switches
