High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise.
    SSE-X3348S and its companion SSE-X3348SR Layer 3 Ethernet Switch both offer forty-eight 10-Gigabit Ethernet ports allowing data center friendly connectivity to 10GE routers, servers, backbones. They also offer four ports running at 40Gbps for access to high-speed backbone networks or storage servers. The 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. An optional rail kit facilitates rack-mounting installations. And the SSE-X3348SR model provides a data-center-friendly reverse air-flow for improved cooling when installed in the rear of a rack.
    A comprehensive routing and protocol software suite ensures optimal performance in even the most demanding enterprise-class networking environments. These switches are ideal for organizations with growing and consolidated data centers.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

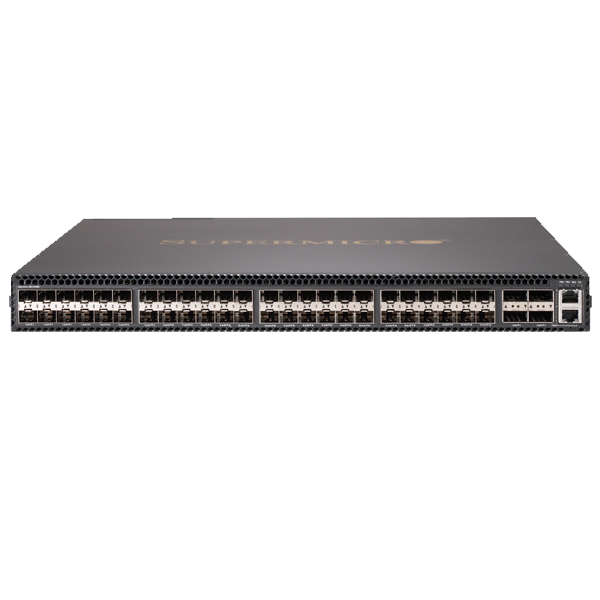

SSE-X3348S / SSE-X3348SR (54 ports)

• 48x ten-Gigabit Ethernet ports
• 4x forty-Gigabit Ethernet ports
• 2x one-Gigabit Ethernet ports
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces



The SuperMicro® SSE-X3348S / SSE-X3348SR (54 ports) Specification.


High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise

DESCRIPTION SPECIFICATIONS
Compliance RoHS 5/6
Manuals – Quick Reference Guide [ Download ]
– Standards Supported [ Download ]
– CLI Manual [ Download ]
– Switch User’s Manual [ Download ]
– 40G-to-10G Port Split Guide [ Download ]
– Rack Installation Manual [ Download ]
– Switch Installation Guide [ Download ]
Config. Guides – MLAG Config. Guide [ Download ]
– LLDP Config. Guide [ Download ]
– IPv6 Config. Guide [ Download ]
– ACL Guide [ Download ]
– System Config. Guide [ Download ]
– PIM Config. Guide [ Download ]
– IGMP Snooping Config. Guide [ Download ]
– SNMP Config. Guide [ Download ]
– Link Aggregation Config. Guide [ Download]
– VLAN Config. Guide [ Download ]
– Spanning Tree Config. Guide [ Download ]
– Quick Config. Guide for CLI [ Download ]
– Quick Config. Guide for Web GUI [Download ]
– Switches IP Config. Guide [ Download ]
– IGMP Config. Guide [ Download ]
– QoS Config. Guide [ Download ]
– RMON Config. Guide [ Download ]
SNMP MIB Files – SNMP MIB Files [ Download ]
Firmware – Firmware [ Download ]
Switching Features  – Link Aggregation – 24 groups w/ 8 members per group
– LACP Support
– MLAG Support
– Link Layer Discovery Protocol (802.1AB)
– Jumbo Frame Support
– Port Mirroring – N to 1. Tx & Rx Configurable
210 W (Copper)
380 W (All max 3W Optical)
Routing Features  – Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 & BGP
– IPv4 and IPv6 Routing
– VRRP (Virtual Router Redundancy Protocol)
– DVMRP (Distance Vector Multicast Routing Protocol
Port Attributes  – 48 Ten Gigabit Ethernet ports – SFP+ Connectors
– 4 Forty-Gigabit Ethernet ports – QSFP Connectors
– 2 One-Gigabit Ethernet ports – RJ45 Connectors
– Out-of-band RS-232 Management port
Performance – Switching capacity: 1284 Gbps
Availability  – Spanning Tree (802.1D)
– Rapid Spanning Tree (802.1w)
– Multiple Spanning Trees (802.1s)
– Virtual Redundant Routing Protocol (VRRP)
VLAN    – Switch
– 802.1Q tagging, port and protocol based
– 4K VLANs
– Dynamic VLAN Support (GVRP)
Quality of Service and DiffServ  – 8 priority queues per port
– Adjusted WRR and Strict Priority Scheduling
– Layer 2 / 3 / 4 Prioritization
– Marking
– Metering / Rate limiting
Multicast  – IGMP Snooping v1/ v2/ v3
– IGMP v1/ v2/ v3
– PIM SM, PIM DM
– PIM SMv6
Security  – 802.1x Port Based Authentication
– Switch access password protection
– Layer 2 / 3 / 4 Access control Lists
– RADIUS and TACACS+ Authentication
– SSH / SSL Encryption
Management  – Web-based management interface
– HTTP, HTTPS
– Telnet (4 sessions)
– Industry standard CLI with telnet, SSH or
local management port
– Scripting capability
– Command completion
– Context sensitive “Help”
– Multiple levels of user privileges (CLI and Web UI)
– SNMP v1/v2/v3
– Four RMON Groups – (1, 2, 3 and 9)
– Logging – syslog
– Dual firmware images
– Configuration file – upload / download
Dimensions  – 17.3″ W x 18.6″ D x 1.7″ H
(440mm W x 473mm D x 43mm H)
Weight  – 18.1 lbs / 8.18 kg
Power  – Dual 400W Hot-swap Redundant Power Supplies
– Power Consumption of 326W
Operating Temperature – 0°C to 40°C
Standard Parts List (Included in the box)    – Switch
– Power Cords – 2 (US style)
– Console Cable
– Mounting flanges (2)
– Miscellaneous screws
– Rubber foot-pads
Optional Accessories    – SFP+ Direct Attach Cables
• CBL-0347L – One-Meter length
• CBL-0348L – Three-Meter length
• CBL-0349L – Five-Meter length

 Parts List

PART NUMBER QUANTITY DESCRIPTION
Layer 3 10G
Ethernet Switch
SSE-X3348S 1 Regular Airflow (front to back)
SSE-X3348SR 1 Reverse Airflow (back to front)

Optional Parts List

PART NUMBER DESCRIPTION
SFP+ Cable CBL-0347L 39.37″ (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-0456L 78.74″ (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-0348L 118.11″ (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-0349L 196.85″ (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable
QSFP Cable CBL-0417L 39.37″ (100cm) QSFP+ to QSFP+
QSFP Cable CBL-0325L 78.74″ (200cm) QSFP+ to QSFP+
QSFP Cable CBL-0419L 98.43¡¨(250 cm) QSFP+ to QSFP+
QSFP Cable CBL-0446L 118.11″ (300cm) QSFP+ to QSFP+
QSFP Cable CBL-0422L 196.85″ (500cm) QSFP+ to QSFP+
Rails Kit CSE-PT52L Rails Kit for Rack Mount
SFP+ Transceiver AOC-E10GSFPSR SFP+ Transceiver for use with fiber cable connections

High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise
      SSE-X3348T and its companion SSE-X3348TR Layer 3 Ethernet Switch both offer forty-eight 10-Gigabit Ethernet ports using the popular new 10GBase-T connection option allowing even more flexibility in providing data center friendly connectivity to 10GE routers, servers, backbones. They also offer four ports running at 40Gbps for access to high-speed backbone networks or storage servers. The 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. An optional rail kit facilitates rack-mounting installations. And the SSE-X3348TR model provides a data-center-friendly reverse air-flow for improved cooling when installed in the rear of a rack.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-X3348T / SSE-X3348TR (54 ports)

• 48x ten-Gigabit Ethernet ports (RJ45)
• 4x forty-Gigabit Ethernet ports
• 2x one-Gigabit Ethernet ports
• Switching Capacity: 1284Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• 1U form factor for flexible installation
• Redundant hot-pluggable power supplies
• CLI and Web GUI Management Interfaces



The SuperMicro® SSE-X3348T / SSE-X3348TR Specification.


High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise

DESCRIPTION SPECIFICATIONS
Compliance RoHS 5/6
Manuals – Quick Reference Guide [ Download ]
– Standards Supported [ Download ]
– CLI Manual [ Download ]
– Switch User’s Manual [ Download ]
– 40G-to-10G Port Split Guide [ Download ]
– Switch Installation Guide [ Download ]
Config. Guides – MLAG Config. Guide [ Download ]
– LLDP Config. Guide [ Download ]
– IPv6 Config. Guide [ Download ]
– ACL Guide [ Download ]
– System Config. Guide [ Download ]
– PIM Config. Guide [ Download ]
– IGMP Snooping Config. Guide [ Download ]
– SNMP Config. Guide [ Download ]
– Link Aggregation Config. Guide [ Download]
– VLAN Config. Guide [ Download ]
– Spanning Tree Config. Guide [ Download ]
– Quick Config. Guide for CLI [ Download ]
– Quick Config. Guide for Web GUI [Download ]
– Switches IP Config. Guide [ Download ]
– IGMP Config. Guide [ Download ]
– QoS Config. Guide [ Download ]
– RMON Config. Guide [ Download ]
SNMP MIB Files – SNMP MIB Files [ Download ]
Firmware – Firmware [ Download ]
Switching Features  – Link Aggregation – 24 groups w/ 8 members per group
– LACP Support
– MLAG Support
– Link Layer Discovery Protocol (802.1AB)
– Jumbo Frame Support
– Port Mirroring – N to 1. Tx & Rx Configurable
Routing Features  – Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 & BGP
– IPv4 and IPv6 Routing
– VRRP (Virtual Router Redundancy Protocol)
– DVMRP (Distance Vector Multicast Routing Protocol
Port Attributes  – 48 10GBase-T Ten-Gigabit Ethernet ports – RJ45 Connectors
* Energy Efficient Ethernet (IEEE 802.3az)
– 4 Forty-Gigabit Ethernet ports -QSFP Connectors
– 2 One-Gigabit Ethernet ports -RJ45 Connectors
– Out-of-band RS-232 Management port
Performance – Switching capacity: 1284 Gbps
Availability  – Spanning Tree (802.1D)
– Rapid Spanning Tree (802.1w)
– Multiple Spanning Trees (802.1s)
– Virtual Redundant Routing Protocol (VRRP)
VLAN  – 802.1Q tagging, port and protocol based
– 4K VLANs
– Dynamic VLAN Support (GVRP)
Quality of Service and DiffServ  – 8 priority queues per port
– Adjusted WRR and Strict Priority Scheduling
– Layer 2 / 3 / 4 Prioritization
– Marking
– Metering / Rate limiting
Multicast  – IGMP Snooping v1/ v2/ v3
– IGMP v1/ v2/ v3
– PIM SM, PIM DM
– PIM SMv6
Security  – 802.1x Port Based Authentication
– Switch access password protection
– Layer 2 / 3 / 4 Access control Lists
– RADIUS and TACACS+ Authentication
– SSH / SSL Encryption
Management  – Web-based management interface
– HTTP, HTTPS
– Telnet (4 sessions)
– Industry standard CLI with telnet, SSH or
local management port
– Scripting capability
– Command completion
– Context sensitive “Help”
– Multiple levels of user privileges (CLI and Web UI)
– SNMP v1/v2/v3
– Four RMON Groups – (1, 2, 3 and 9)
– Logging – syslog
– Dual firmware images
– Configuration file – upload / download
Dimensions  – 17.3″ W x 18.6″ D x 1.7″ H
(440mm W x 473mm D x 43mm H)
Weight – 20.3 lbs / 9.22 kg
Power  – Dual 400W Hot-swap Redundant Power Supplies
– Power Consumption of 375W
Operating Temperature – – 0° to 45°
Standard Parts List (Included in the box)    – Switch
– Power Cords – 2 (US style)
– Console Cable
– Mounting flanges (2)
– Miscellaneous screws
– Rubber foot-pads
Optional Accessories    – Rails Kit for Rack Mount
• CSE-PT52L – Rails set

 Parts List

PART NUMBER QUANTITY DESCRIPTION
Layer 3 10G
Ethernet Switch
SSE-X3348T 1 Regular Airflow (front to back)
SSE-X3348TR 1 Reverse Airflow (back to front)
QSFP Cable  CBL-0325L  78.74″ (200cm) QSFP+ to QSFP+
QSFP Cable  CBL-0417L  39.37″ (100cm) QSFP+ to QSFP+
QSFP Cable  CBL-0419L  98.43″ (250 cm) QSFP+ to QSFP+
QSFP Cable  CBL-0446L  118.11″ (300cm) QSFP+ to QSFP+
QSFP Cable  CBL-0422L  196.85″ (500cm) QSFP+ to QSFP+

Optional Parts List

PART NUMBER DESCRIPTION
Rails Kit CSE-PT52L Rails Kit for Rack Mount

High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise
    SSE-X24S and its companion SSE-X24SR Layer 3 Ethernet Switch both offer twenty-four 10-Gigabit Ethernet ports allowing connectivity to 10GE routers, servers, backbones, and data centers. The 1U form factor gives users the ability to optimize deployment in wiring closet or top-of-rack environments. An optional rail kit facilitates rack-mounting installations. And the SSE-X24SR model provides a data-center-friendly reverse air-flow for improved cooling when installed in the rear of a rack.
    A comprehensive routing and protocol software suite ensures optimal performance in even the most demanding enterprise-class networking environments. These switches are ideal for organizations with growing and consolidated data centers.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-X24S / SSE-X24SR (24 ports)

• 24x ten Gigabit Ethernet ports
• Switching Capacity: 480Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces



The SuperMicro® SSE-X24S / SSE-X24SR Specification.


High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise

DESCRIPTION SPECIFICATIONS
Compliance RoHS 5/6
Manuals – Quick Reference Guide [ Download ]
– Standards Supported [ Download ]
– CLI Manual [ Download ]
– Switch User’s Manual [ Download ]
– 40G-to-10G Port Split Guide [ Download ]
– Rack Installation Manual [ Download ]
Config. Guides – MLAG Config. Guide [ Download ]
– LLDP Config. Guide [ Download ]
– IPv6 Config. Guide [ Download ]
– ACL Guide [ Download ]
– System Config. Guide [ Download ]
– PIM Config. Guide [ Download ]
– IGMP Snooping Config. Guide [ Download ]
– SNMP Config. Guide [ Download ]
– Link Aggregation Config. Guide [ Download]
– VLAN Config. Guide [ Download ]
– Spanning Tree Config. Guide [ Download ]
– Quick Config. Guide for CLI [ Download ]
– Quick Config. Guide for Web GUI [Download ]
– Switches IP Config. Guide [ Download ]
– IGMP Config. Guide [ Download ]
– QoS Config. Guide [ Download ]
– RMON Config. Guide [ Download ]
SNMP MIB Files – SNMP MIB Files [ Download ]
Firmware – Firmware [ Download ]
Switching Features  – Link Aggregation – 24 groups with 8 members per group
– LACP Support
– MLAG Support
– Link Layer Discovery Protocol (802.1AB)
– Jumbo Frame Support
– Port Mirroring – N to 1. Tx & Rx Configurable
Routing Features – Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 & BGP
– IPv4 and IPv6 Routing
– VRRP (Virtual Router Redundancy Protocol)
– DVMRP (Distance Vector Multicast Routing Protocol)
Port Attributes – 24 Ten Gigabit Ethernet ports – SFP+ Connectors
– Out-of-band RS-232 Management port
Performance  – Switching capacity: 480 Gbps
Availability  – Spanning Tree (802.1D)
– Rapid Spanning Tree (802.1w)
– Multiple Spanning Trees (802.1s)
– Virtual Redundant Routing Protocol (VRRP)
VLAN – 802.1Q tagging, port and protocol based
– 4K VLANs
– Dynamic VLAN Support (GVRP)
Quality of Service and DiffServ – 8 priority queues per port
– Adjusted WRR and Strict Priority Scheduling
– Layer 2 / 3 / 4 Prioritization
– Marking
– Metering / Rate limiting
Multicast – IGMP Snooping v1/ v2/ v3
– IGMP v1/ v2/ v3
– PIM SM, PIM DM
– PIM SMv6
Security  – 802.1x Port Based Authentication
– Switch access password protection
– Layer 2 / 3 / 4 Access control Lists
– RADIUS and TACACS+ Authentication
– SSH / SSL Encryption
Management  – Web-based management interface
– HTTP, HTTPS
– Industry standard CLI with telnet, SSH or
local management port
– Scripting capability
– Command completion
– Context sensitive “Help”
– Multiple levels of user privileges (CLI and Web UI)
– SNMP v1/v2/v3
– Four RMON Groups – (1, 2, 3 and 9)
– Logging – syslog
– Dual firmware images
– Configuration file – upload / download
Dimensions  – 17.3″ W x 15.2″ D x 1.7″ H
(440mm W x 386mm D x 43mm H)
Weight  – 16.7 lbs / 7.58 kg
Power – Dual 300W Hot-swap Redundant Power Supplies
– Power Consumption of 176W
Operating Temperature  – 0° to 40°
Standard Parts List (Included in the box) – Switch
– Power Cords – 2 (US style)
– Console Cable
– CD-ROM with User’s Manuals
– Mounting flanges (2)
– Miscellaneous screws
– Rubber foot-pads
Optional Accessories – SFP+ Direct Attach Cables
• CBL-0347L – One-Meter length
• CBL-0348L – Three-Meter length
• CBL-0349L – Five-Meter length

– Rails Kit for Rack Mount
• CSE-PT52L – Rails set

– SFP+ Transceiver
• AOC-E10GSFPSR – SFP+ Transceiver for use with fiber
cable connections

 Parts List

PART NUMBER QUANTITY DESCRIPTION
Layer 3 10G
Ethernet Switch
SSE-X24S 1 Regular Airflow (front to back)
SSE-X24SR 1 Reverse Airflow (back to front)

Optional Parts List

PART NUMBER DESCRIPTION
SFP+ Cable  CBL-0347L  39.37″ (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0456L  78.74″ (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0348L  118.11″ (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0349L  196.85″ (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable

Enterprise-Class Performance with Advanced Switching Capabilities in a 1U Form Factor for 1/10-Gigabit Ethernet Networking

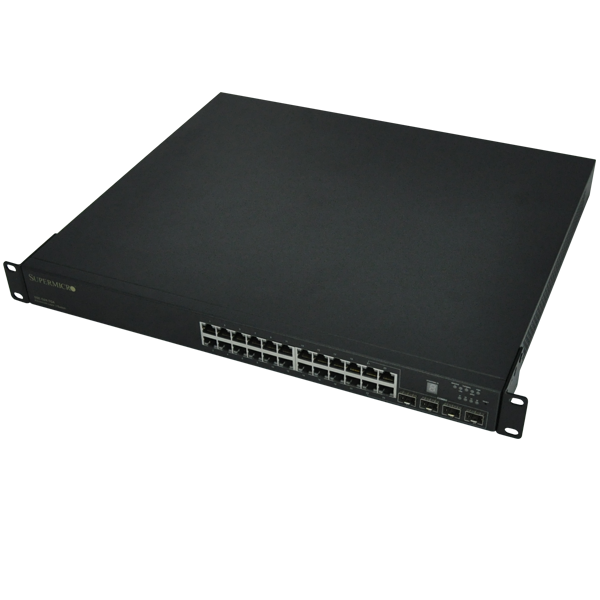

    SSE-G24-TG4 The new SSE-G24-TG4 from Supermicro is a standalone 24-port Layer 2/Layer 3 1/10-Gigabit Ethernet switch. It offers a full suite of advanced Ethernet switching features – the same as in the new Ethernet switch for the Supermicro SuperBlade® server systems. In addition to the 24 ports at 1-gigabit per second, the SSE-G24-TG4 offers up to four 10-gigabit per second “uplink ports”. These uplink ports can be used to connect to 10-Gigabit Ethernet backbone networks or servers with 10-Gigabit Ethernet connectivity – or they can be “stacked” together to create an even larger capacity switch. Fiber or copper wiring options are available for the 10-Gigabit connections.
    Offered in a 1U form factor, the SSE-G24-TG4 switch is ideal for use as a wiring closet aggregation switch, as a top-of-rack aggregation switch, or even as a core switch for a small business or branch office. A comprehensive set of management tools are available through either a Command Line Interface or through a Browser-based GUI.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-G24-TG4 (24 ports)

• 24x one Gigabit Ethernet links
– 24 RJ45 Copper ports and
– 4 RJ45/SFP Combo ports
• Switching Capacity: 136Gbps
• Wire-speed Layer 3 Routing
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces



The SuperMicro® SSE-G24-TG4 Specification.


Enterprise-Class Performance with Advanced Switching Capabilities in a 1U Form Factor for 1/10-Gigabit Ethernet Networking

DESCRIPTION SPECIFICATIONS
Highlights
  • Wire-speed Layer 3 Routing
  • 1:1 Non-blocking connectivity
  • 1U form factor for flexible installation
Manuals – Quick Reference Guide [ Download ]
– Standards Supported [ Download ]
– CLI Manual [ Download ]
– Switch User’s Manual [ Download ]
– 40G-to-10G Port Split Guide [ Download ]
Config. Guides – LLDP Config. Guide [ Download ]
– IPv6 Config. Guide [ Download ]
– ACL Guide [ Download ]
– System Config. Guide [ Download ]
– PIM Config. Guide [ Download ]
– IGMP Snooping Config. Guide [ Download ]
– SNMP Config. Guide [ Download ]
– Link Aggregation Config. Guide [ Download]
– VLAN Config. Guide [ Download ]
– Spanning Tree Config. Guide [ Download ]
– Quick Config. Guide for CLI [ Download ]
– Quick Config. Guide for Web GUI [Download ]
– Switches IP Config. Guide [ Download ]
– IGMP Config. Guide [ Download ]
– QoS Config. Guide [ Download ]
– RMON Config. Guide [ Download ]
SNMP MIB Files – SNMP MIB Files [ Download ]
Firmware – Firmware Upgrade [ Download ]
Port Attributes   – 24 one Gigabit Ethernet ports
* 24 RJ45 Copper ports
* Four fiber SFP combo ports
* Two or four 10 Gigabit Ethernet uplink ports
(requires Add-On-Module(s) for choice of connector
type – see “Optional Accessories” below)
* Up to two stacking ports
(requires AOM-SSE-X2C accessory)
– Out-of-band RS-232 Management port
Performance – Switching capacity: 136 Gbps
– Stacking performance – up to 48 Gbps
– Forwarding rate: 95 Mpps
Availability – Spanning Tree (802.1D)
– Rapid Spanning Tree (802.1w)
– Multiple Spanning Trees (802.1s)
– Virtual Redundant Routing Protocol (VRRP)
VLAN – 802.1Q tagging, port and protocol based
– 1024 VLANs
– Dynamic VLAN Support (GVRP)
Quality of Service and DiffServ – 8 priority queues per port
– Adjusted WRR and Strict Priority Scheduling
– Layer 2 / 3 / 4 Prioritization
– Marking
– Metering / Rate limiting
Switching Features  – Link Aggregation – 24 groups w/ 8 members per group
– LACP Support
– Link Layer Discovery Protocol (802.1AB)
– Jumbo Frame Support
– Port Mirroring – N to 1. Tx & Rx Configurable
Routing Features  – Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3, BGP
– IPv4 and IPv6 Routing
– VRRP (Virtual Router Redundancy Protocol)
– DVMRP (Distance Vector Multicast Routing Protocol)
Multicast  – IGMP Snooping v1/v2/v3
– IGMP v1/v2/v3
– PIM SM, PIM DM
– PIM SMv6
Security  – 802.1x Port Based Authentication
– Switch access password protection
– Layer 2 / 3 / 4 Access control Lists
– RADIUS and TACACS+ Authentication
– SSH / SSL Encryption
Management  – Web-basd management interface – HTTP, HTTPS
– Industry standard CLI with telnet, SSH or local
management port
– Scripting capability
– Command completion
– Context sensitive “Help”
– Multiple levels of user privileges (CLI and Web UI)
– SNMP v1/v2/v3
– Four RMON Groups – (1, 2, 3 and 9)
– Logging – syslog
– Dual firmware images
– Configuration file – upload / download
Dimensions  – 17.3″ W x 15.2″ D x 1.7″ H
(440mm W x 387mm D x 43mm H)
Weight w/o modules: 12.2 lbs (5.54 kg)
w/ modules: 12.6 lbs (5.70 kg
Options  – AOM-SSE-X2C: Two-port CX4 Connector Module
for copper connections
AOM-SSE-X2F: Two-port XFP Connector Module
for Fiber connections
AOM-SSE-X2S: Two-port SFP+ Connector Module
for Copper or Fiber connections
Operating Temperature – Operating temperature: 0 to 40°C
– Power Consumption: 105 W
Standard Parts List (Included in the box) – Switch
– Power Cord (US style)
– Console Cable
– CD-ROM with User’s Manuals
– Mounting flanges (2)
– Miscellaneous screws
– Rubber foot-pads
Optional Accessories
   CX4 Cables – For Stacking or 10GE Interconnect
– CBL-0474L – One Meter Length
– CBL-0389L-01 – Three Meter Length
SFP+ Direct Attach Cables
– CBL-0347L – One Meter Length
– CBL-0348L – Three Meter Length
– CBL-0349L – Five Meter Length
SFP+ Transceiver
AOC-E10GSFPSR – SFP+ Transceiver for use with fiber cable connections
Add-on Modules
– AOM-SSE-X2C – Dual-port CX-4 Copper interface module
– AOM-SSE-X2F – Dual-port XFP fiber interface module
– AOM-SSE-X2S – Dual-port SFP+ interface module for
copper or fiber connections
AOM-SSE-X2C , AOM-SSE-X2F, AOM-SSE-X2S

 Parts List

PART NUMBER QUANTITY DESCRIPTION
Ethernet Switch SSE-G24-TG4 1 Layer 3 1/10Gigabit Ethernet Switch

Optional Parts List

PART NUMBER DESCRIPTION
SFP+ Cable  CBL-0347L  39.37″ (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0456L  78.74″ (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0348L  118.11″ (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0349L  196.85″ (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable
CX4 Cable CBL-0474L 39.37″ (100cm) CX4 to CX4 for blades switches
CX4 Cable CBL-0475L 472.44″ (1200cm) CX4 to CX4 for blades switches
Add-on Module AOM-SSE-X2C Two-port CX4 Connector Module for copper connections
Add-on Module AOM-SSE-X2F Two-port XFP Connector Module for Fiber connections
Add-on Module AOM-SSE-X2S Two-port SFP+ Connector Module for Copper or Fiber connections

Enterprise-Class Performance with Advanced Switching Capabilities in a 1U Form Factor for 1/10-Gigabit Ethernet Networking

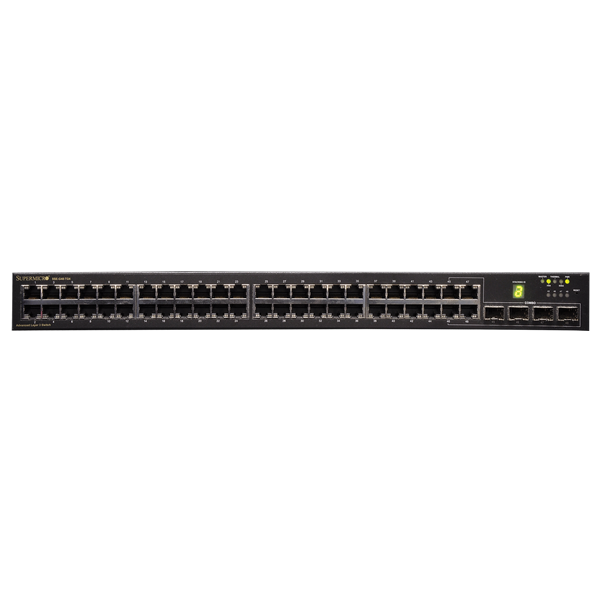

    SSE-G48-TG4 The new SSE-G48-TG4 from Supermicro is a standalone 48-port Layer 2/Layer 3 1/10-Gigabit Ethernet switch. It offers a full suite of advanced Ethernet switching features – the same as in the new Ethernet switch for the Supermicro SuperBlade® server systems. In addition to the 48 ports at 1-gigabit per second, the SSE-G48-TG4 offers up to four 10-gigabit per second “uplink ports”. These uplink ports can be used to connect to 10-Gigabit Ethernet backbone networks or servers with 10-Gigabit Ethernet connectivity – or they can be “stacked” together to create an even larger capacity switch. Fiber or copper wiring options are available for the 10-Gigabit connections.
    Offered in a 1U form factor, the SSE-G48-TG4 switch is ideal for use as a wiring closet aggregation switch, as a top-of-rack aggregation switch, or even as a core switch for a small business or branch office. A comprehensive set of management tools are available through either a Command Line Interface or through a Browser-based GUI.


Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management
SSE-G48-TG4 (48Ports))

• 48x one Gigabit Ethernet links
– 48 RJ45 Copper ports and
–  4 RJ45/SFP Combo ports
• Switching Capacity: 184Gbps
• Wire-speed Layer 3 Routing
• 1:1 Non-blocking connectivity
• Link Aggregation and Jumbo Frame Support
• 1U form factor for flexible installation
• CLI and Web GUI Management Interfaces



The SuperMicro® SSE-G48-TG4 (48Ports) Specification.


Enterprise-Class Performance with Advanced Switching Capabilities
in a 1U Form Factor for 1/10-Gigabit Ethernet Networking

DESCRIPTION SPECIFICATIONS
Highlights
  • Wire-speed Layer 3 Routing
  • 1:1 Non-blocking connectivity
  • 1U form factor for flexible installation
Manuals – Quick Reference Guide [ Download ]
– Standards Supported [ Download ]
– CLI Manual [ Download ]
– Switch User’s Manual [ Download ]
– 40G-to-10G Port Split Guide [ Download ]
Config. Guides – LLDP Config. Guide [ Download ]
– IPv6 Config. Guide [ Download ]
– ACL Guide [ Download ]
– System Config. Guide [ Download ]
– PIM Config. Guide [ Download ]
– IGMP Snooping Config. Guide [ Download ]
– SNMP Config. Guide [ Download ]
– Link Aggregation Config. Guide [ Download]
– VLAN Config. Guide [ Download ]
– Spanning Tree Config. Guide [ Download ]
– Quick Config. Guide for CLI [ Download ]
– Quick Config. Guide for Web GUI [Download ]
– Switches IP Config. Guide [ Download ]
– IGMP Config. Guide [ Download ]
– QoS Config. Guide [ Download ]
– RMON Config. Guide [ Download ]
SNMP MIB Files SNMP MIB Files [ Download ]
Firmware – Firmware Upgrade [ Download ]
Port Attributes  – 48 one Gigabit Ethernet ports
* 48 RJ45 Copper ports
* Four fiber SFP combo ports
* Two or four 10 Gigabit Ethernet uplink ports
(requires Add-On-Module(s) for choice of connector
type – see “Optional Accessories” below)
* Up to two stacking ports
(requires AOM-SSE-X2C accessory)
– Out-of-band RS-232 Management port
Performance  – Switching capacity: 184 Gbps
– Stacking performance – up to 48 Gbps
– Forwarding rate: 131 Mpps
Availability  – Spanning Tree (802.1D)
– Rapid Spanning Tree (802.1w)
– Multiple Spanning Trees (802.1s)
– Virtual Redundant Routing Protocol (VRRP)
VLAN  – 802.1Q tagging, port and protocol based
– 1024 VLANs
– Dynamic VLAN Support (GVRP)
Quality of Service and DiffServ  – 8 priority queues per port
– Adjusted WRR and Strict Priority Scheduling
– Layer 2 / 3 / 4 Prioritization
– Marking
– Metering / Rate limiting
Switching Features  – Link Aggregation – 24 groups w/ 8 members per group
– LACP Support
– Link Layer Discovery Protocol (802.1AB)
– Jumbo Frame Support
– Port Mirroring – N to 1. Tx & Rx Configurable
Routing Features  – Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3, BGP
– IPv4 and IPv6 Routing
– VRRP (Virtual Router Redundancy Protocol)
– DVMRP (Distance Vector Multicast Routing Protocol)
Multicast  – IGMP Snooping v1/v2/v3
– IGMP v1/v2/v3
– PIM SM, PIM DM
– PIM SMv6
Security  – 802.1x Port Based Authentication
– Switch access password protection
– Layer 2 / 3 / 4 Access control Lists
– RADIUS and TACACS+ Authentication
– SSH / SSL Encryption
Management  – Web-basd management interface – HTTP, HTTPS
– Industry standard CLI with telnet, SSH or local
management port
– Scripting capability
– Command completion
– Context sensitive “Help”
– Multiple levels of user privileges (CLI and Web UI)
– SNMP v1/v2/v3
– Four RMON Groups – (1, 2, 3 and 9)
– Logging – syslog
– Dual firmware images
– Configuration file – upload / download
Dimensions  – 17.3″ W x 15.2″ D x 1.7″ H
(440mm W x 387mm D x 43mm H)
Weight w/o modules: 13.4 lbs (6.06 kg)
w/ modules: 13.7 lbs (6.20 kg)
Options  – AOM-SSE-X2C: Two-port CX4 Connector Module
for copper connections
AOM-SSE-X2F: Two-port XFP Connector Module
for Fiber connections
AOM-SSE-X2S: Two-port SFP+ Connector Module
for Copper or Fiber connections
Operating Temperature – Operating temperature: 0 to 40°C
– Power Consumption: 105 W
Standard Parts List (Included in the box) – Switch
– Power Cord (US style)
– Console Cable
– CD-ROM with User’s Manuals
– Mounting flanges (2)
– Miscellaneous screws
– Rubber foot-pads
Optional Accessories
   CX4 Cables – For Stacking or 10GE Interconnect
– CBL-0474L – One Meter Length
– CBL-0389L-01 – Three Meter Length
SFP+ Direct Attach Cables
– CBL-0347L – One Meter Length
– CBL-0348L – Three Meter Length
– CBL-0349L – Five Meter Length
SFP+ Transceiver
AOC-E10GSFPSR – SFP+ Transceiver for use with fiber cable connections
Add-on Modules
– AOM-SSE-X2C – Dual-port CX-4 Copper interface module
– AOM-SSE-X2F – Dual-port XFP fiber interface module
– AOM-SSE-X2S – Dual-port SFP+ interface module for
copper or fiber connections
AOM-SSE-X2C , AOM-SSE-X2F, AOM-SSE-X2S

 Parts List

PART NUMBER QUANTITY DESCRIPTION
Ethernet Switch SSE-G24-TG4 1 Layer 3 1/10Gigabit Ethernet Switch

Optional Parts List

PART NUMBER DESCRIPTION
SFP+ Cable  CBL-0347L  39.37″ (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0456L  78.74″ (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0348L  118.11″ (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable  CBL-0349L  196.85″ (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable
CX4 Cable CBL-0474L 39.37″ (100cm) CX4 to CX4 for blades switches
CX4 Cable CBL-0475L 472.44″ (1200cm) CX4 to CX4 for blades switches
Add-on Module AOM-SSE-X2C Two-port CX4 Connector Module for copper connections
Add-on Module AOM-SSE-X2F Two-port XFP Connector Module for Fiber connections
Add-on Module AOM-SSE-X2S Two-port SFP+ Connector Module for Copper or Fiber connections
Serverware, SuperMicro, server, supermicro server, supermicro servers, computer server, blade server, cloud server, supermicro, small business server, rack server, tower server, business server, server management

A Quick Thought.

How Do You Speed Up Your DataBase Performance

Add A Layer of SSD Caching to your servers.
