Complete Line of AMD Platform Servers

The ServerWare® SG11-A 1U Server System

Transforming The World Of Server Computing with AMD EPYC™

The ServerWare® SG1-A Server brings the performance and advanced intelligence into a dense, low-power system. With enhanced reliability, availability, and serviceability features; platform storage extensions; and built-in hardware virtualization.

Powered byAMD EPYC™ optimize a variety of workloads and infrastructure for mid range routers, network appliances, security appliances, wireless base stations, embedded midrange Internet of Things (IoT) devices, entry networking, midrange storage area network (SAN) and network attached storage (NAS) appliances, warm cloud storage, and more

AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec
AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec
AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec
AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec

serverware

Superior Compute Performance with Low Power Consumption

The ServerWare® SG11 Server System Features an AMD EPYC™ processor delivering an optimal unit that combines high-performance, extreme low energy consumption at 45W, improved uptime, and increased confidence for a 1U rack servers system. It provides an innovative and exceptional reliable server for appliances, data center cloud deployments as well as business IT uses.

Superior Compute Performance with Low Power Consumption Large Capacity Memory and Storage Enablement

Design with high memory capacity the ServerWare® SG11 supports up to 512GB DDR4 RDDIMM Memories , combining storage performance and storage flexibility, the SG11-A server is a great choice for enterprises of all sizes.

Offering a broad selection of drive and slot configurations for high performance features that industries such as finance, healthcare and telco need.

serverware, Intel, Xeon

Superior Compute Performance with Low Power Consumption Extreme Networking Flexibility

To safeguard your business and customers, Integrated as a standard with 4 x 1Gbe Network Port for superior networking capabilities that offers industry-leading protection, scalability and efficiency. The ServerWare® SG11A Server delivers flexible networking  performance  and exceptional reliable server for appliances, data center cloud deployments as well as business IT uses.

The ServerWare® SG11-A Specification

The ServerWare® SG11-A is a short depth right-sized 1U rack server design for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG11-A not only largely cuts cost, but also dramatically saves energy, data center floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.

The ServerWare® SG11-A

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rack Server
428mm x 25m x 43mm

MB Size (WxL)

170mm x 170mm

Processor

AMD EPYC™ 3151 SoC Processor,
4 Core/8 Thread, 45W

Chipset

System on Chip

SAS Controller

Not Applicable

Memory

Supports up to 512GB Registered ECC DDR4 2666MHz SDRAM in 4 DIMMs
2-channel memory bus

Drive Bay

(2) internal 3.5″ HDD 6G SATA3 Bays with RV Protection or (2) internal 2.5″ HDD/SSD

Onboard Storage Device

SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
4 SATA3 (6Gbps) port

HDD Backplane

None

Expansion Slot

1 PCI-E 3.0 x16
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key

PCI Interface

PCI Express* 3.0

Network Controllers

4x 1GbE with Inte® I350-AM4
1 Realtek RTL8211E PHY (dedicated IPMI)

IPMI

support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Integrated Graphics

ASPEED AST2500 BMC

I/O

(1) Power button
(1) Reset button
(2) USB 2.0 ports (2 Front)
(2) USB 3.0 ports (2 rear)
(1) VGA Port
(1) TPM Header
(1)1 COM Port (1 header)

Power Supply Unit

300W Fixed PSU

Operating Environment

Operating temperature: 5°C to 35°C (41°F to 95°F)

Non-operating temperature: -40°C to 65°C (-40°F to 149°F)

Operating relative humidity: 50% to 85%RH

Non-operating relative humidity: 20% to 90%RH

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

The ServerWare® SG16-A 1U Server System

Industry most versatile and highly affordable 1U server system

The industry most cost effective data center specific server driven by a dense 1U form factor that you can confidently deploy for virtualization, data base, or web server computing? The ServerWare® SG16-A Server delivers a 1U chassis with Single AMD EPYC™ 7001/7002* Series Processor Up to 32 Cores processors delivering an optimal unit that combines high-performance, low energy consumption, improved up-time, and increased confidence.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

serverware

Powered by the latestSingle AMD EPYC™ Series Processor

The ServerWare® SG16-A 1U Server System built on the latest Single AMD EPYC™ 7001/7002* Series Processor, Up to 32 Cores to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generations.

Increase IOPS Performance with high capacity memories, cache and storage in 1U

Design to be flexible for total iops performance configurations, ServerWare® SG16 provides for easy configuration of both memories upgrade to 2TB DDR4 RDIMM as well as up to (4) four SSDs as caching and (4) Hostswap HDDs for storages.

SERVERWARE

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Quad M.2 SATA SSDs enable top performance or data redundancy in RAID mode In performance-maximizing RAID 0 and 1 configurations with quad M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

The ServerWare® SG16-A Specifications

The ServerWare® SG16-A is right-sized for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG16-A not only largely cuts cost, but also dramatically saves energy, datacenter floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.
The ServerWare® SG16-A

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rack Server
555mm x 425mm x 43mm

MB Size (WxL)

305mm X 244mm

Processor

Single AMD EPYC™ 7001/7002* Series Processor
Up to 64 Cores

Chipset

System on Chip

SAS Controller

Optional
LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory

1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)

Drive Bay

(4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(4) internal 2.5″ HDD 6G/12G Bays with RV Protection

Onboard Storage Device

16 SATA3 (6 Gbps) ports

HDD Backplane

1 x 4-port 12Gb SAS backplane

PCIe Expansion Slot

1 PCI-E 3.0 x16
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key

PCI Interface

PCI Express* 3.0

Network Controllers

2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500

Integrated Graphics

BMC integrated Aspeed AST2500

 I/O

(1) Power button
(1) Reset button
2 x USB 3.0 port (Front)
2 x USB 3.0 port (Rear)
1 x TPM Header
1 x VGA Port

Power Supply Unit

500W Fixed PSU

Operating Environment

Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

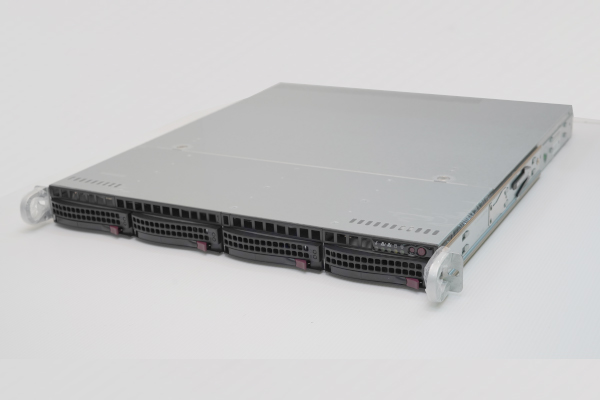

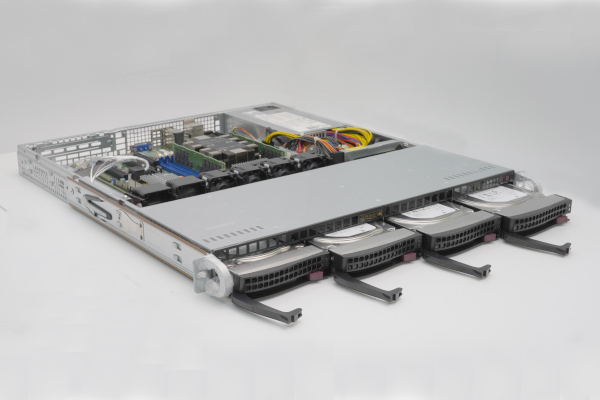

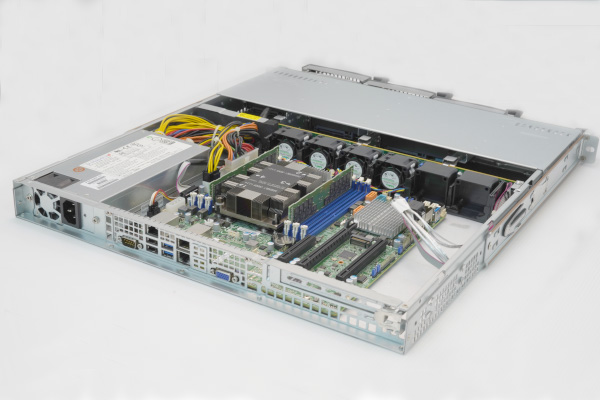

The ServerWare® SG18-A 1U Server System

A Truly Versatile Platform Meeting Flexible Server Computing Needs

TheServerWare® SG18-A Server provides you with the choice to scale as you grow. A single socket system, based on theSingle AMD EPYC™ 7001/7002* Series Processor, Up to 32 Cores delivers peak performance for small businesses that need a robust and cost effective server.

Realize reliability, durability and performance that make this server ideal for versatile needs in a  datacenter, cloud, SMB, embedded, and storage & security appliance applications.

AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec
AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec
NVIDIA® Quadro®, Tesla®, ServerWare® is SuperMicro® distributor, Asus® Server Distributor, Intel®, supermicro®,LIS, Adaptec, Mellanox,

serverware

Broad Application Platform that is both Powerful and Affordable

ServerWare® SG18-A is simplified, tailored to meet the specific needs of small and medium businesses and datacenters. Cable-free, 8 x HotSwap HDD allows for easy change over . Single AMD EPYC™ 7001/7002* Series Processor
Up to 32 Cores
 , 512TB of memory, (4)Eight 3.5″ Hotswap SATA/SAS 6G/12G SSDs, two GbE RJ45 ports and redundant power supply

SERVERWARE

Mainstream Application Optimized

The Mainstream Application Optimized ServerWare® SG18-A 1U server  is designed for entry level or volume selections. Enterprise IT Managers can choose the exact model for their applications, with a precise set of integrated features needed for their applications.

serverware

Innovative and designed for data centers

Data Center Optimized. Designed to align with complex requirements of floorspace and energy in order to achieve lower Total Cost of Ownership (TCO). Improved Thermal Architecture and High Efficiency Power Supplies for Data Center Operation and Short-Depth Design for Server Deployments Where Space and Power are at a Premium.

The ServerWare® SG18-A Specifications

The ServerWare® SG18-A is a single/dual socket right sizing 1U rack server design for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG18-A is a flexible data center server that provides you the flexibility to scale as you need from compute power to memory capacity and storage IOPs and Capacity Management.
The ServerWare® SG18-A

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rack Server
503mm x 437mm x 43 mm

MB Size (WxL)

305mm X 244mm

Processor

Single AMD EPYC™ 7001/7002* Series Processor
Up to 64 Cores

Chipset

System on Chip

SAS Controller

Optional
LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory

1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)

Drive Bay

(4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection

Onboard Storage Device

16 SATA3 (6 Gbps) ports

HDD Backplane

4-port SATA3 backplane

PCIe Expansion Slot

1 PCI-E 3.0 x16
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key

PCI Interface

PCI Express* 3.0

Network Controllers

2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500

Integrated Graphics

BMC integrated Aspeed AST2500

 I/O

(1) Power button
(1) Reset button
2 x USB 3.0 port (Rear)
1 x TPM Header
1 x VGA Port

Power Supply Unit

500W Fixed PSU

Operating Environment

Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

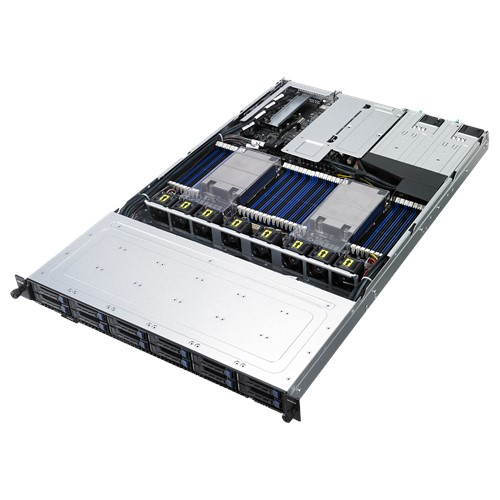

The ServerWare® SG12A-A 1U Server System

Flexible  application usage for enterprise applications, datacenter deployment, virtualization, software defined storage, and general purpose server workloads

The ServerWare® SG12A-A built on the brand-new AMD EPYC™ 7002 platform to deliver incredible server performance. With up to 64 cores per CPU and up to 128 threads in a single 1U server, packs incredible power in minimal space. 32 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

serverware

High expandability for storage and communication

built on the brand-new AMD EPYC™ platform to deliver incredible server performance. With up to 32 cores per CPU and up to 128 threads in a single 1U server

serverware

Best-in-class memory bandwidth and capacity

supports up to 32 DDR4-2666 DIMMs for up to 4TB of RAM. An integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

serverware

High expandability for storage and communication.

12 2.5-inch storage drives in a compact 1U form factor. With support for multiple drive configurations, including eight NVMe and four SATA drives, four NVMe and eight SATA drives, or four NVME and eight SAS drives with an optional ASUS PIKE II card, RS700A-E9-RS12 provides storage flexibility for a wide range of applications.

The ServerWare® SG12A-A Specifications

Release the power of brand new AMD EPYC™ processor

The ServerWare® SG12A-A built on the brand-new AMD EPYC™ platform to deliver incredible server performance. With up to 32 cores per CPU and up to 128 threads in a single 1U server,packs incredible power in minimal space. 32 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

The ServerWare® SG12A -A

SG12A-A  System Specifications

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) 1U Rack Server
686mm x 444mm x 44mm
MB Size (WxL) N/A
Processor AMD EPYC™ 7000 Series
Chipset System On Chip
SAS Controller SAS Controller :
3008 8-port SAS HBA card(Optional)
3108 8-port SAS HW RAID card(Optional)
12G SAS Support
Memory Total Slots : 32 (8-channel per CPU, 16 DIMM per CPU)
Capacity : Maximum up to 4096GB LR-DIMM 3DS
Memory Type :
DDR4 2666/2400 /2133 RDIMM
DDR4 2666/2400 /2133 LRDIMM
DDR4 2666/2400 /2133 LR-DIMM 3DS
Memory Size :
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
128GB LR-DIMM 3DS
Drive Bay 12 x 2.5″ hot-swap drive bays
– (4 x NVMe+ 4 x SATA/SAS/NVMe + 4 x SATA/SAS)
2 x M.2 (22110, 2280, 2260, 2242)
Onboard Storage Device SATA Controller :
24 x SATA3 6Gb/s ports
2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link)
HDD Backplane 1 x 12-port 12Gb SAS backplane
PCIe Expansion Slot 1 x PCI-E x16 (Gen3 x16 link), FH, HL (Optional for NVME4-OCuLink Card)
1 x PCI-E x16 (Gen3 x8 link), LP
1 x PCI-E x8 (Gen3 x8 link), LP (Default for NVME2-OCuLink Card)
1 x OCP Mezzanine 2.0 (Gen3 x16 link)
PCI Interface x8 PCI Express* 3.0
Network Controllers 1 x Dual Port Intel Ethernet Controller i350-AM2
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500
Integrated Graphics Aspeed AST2500 with 64MB VRAM
I/O Rear Switch/LED:
1 x Power switch
1 x Q-Code/Port 80 LED
1 x Location LED
1 x Message LED
1 x Storage device LED
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port

Front Switch/LED:
1 x Power switch/LED
1 x Location LED
1 x Message LED
1 x Storage device LED
LAN 1-2 LED

Power Supply Unit 1+1 Redundant 800W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240Vac,9.4A/4.72A ,50/60Hz Class I
Operating Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% (Non condensing)
Warranty Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

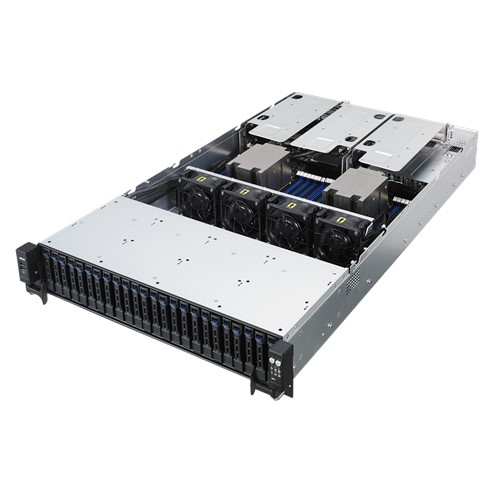

The ServerWare® SG22A-A 1U Server System

Flexible  application usage for enterprise applications, datacenter deployment, virtualization, software defined storage, and general purpose server workloads

The ServerWare® SG22A-A built on the brand-new AMD EPYC™ 7002 platform to deliver incredible server performance. With up to 64 cores per CPU and up to 128 threads in a single 2U server, packs incredible power in minimal space. 32 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

NVIDIA® Quadro®, Tesla®, ServerWare® is SuperMicro® distributor, Asus® Server Distributor, Intel®, supermicro®,

serverware

8 + 1 expansion slots

 features seven full-height PCIe 3.0 x16 slots (x8 mode). Six of these slots can be paired together to enable three PCIe 3.0 x16 mode configurations. RS720A-E9-RS24V2 also comes with one low-profile PCIe 3.0 x16 slot (x16 mode) and one OCP Mezzanine 2.0 slot (x16 mode) for OCP LAN cards. With its flexible expandability, RS720A-E9-RS24V2 fits a wide range of storage and networking applications, and provides high scalability in a 2U server.

serverware

Best-in-class memory bandwidth and capacity

supports up to 32 DDR4-2666 DIMMs for up to 4TB of RAM. An integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

serverware

High expandability for storage and communication.

24 2.5-inch storage drives in a compact 2U form factor. With support for multiple drive configurations, including eight NVMe and four SATA drives, four NVMe and eight SATA drives, or four NVME and eight SAS drives with an optional ASUS PIKE II card, Provides storage flexibility for a wide range of applications.

The ServerWare® SG22A-A Specifications

Release the power of brand new AMD EPYC™ processor

The ServerWare® SG22A-A features seven full-height PCIe 3.0 x16 slots (x8 mode). Six of these slots can be paired together to enable three PCIe 3.0 x16 mode configurations. Comes with one low-profile PCIe 3.0 x16 slot (x16 mode) and one OCP Mezzanine 2.0 slot (x16 mode) for OCP LAN cards. With its flexible expandability,  fits a wide range of storage and networking applications, and provides high scalability in a 2U server.

The ServerWare® SG22A -A

System Specifications ST4E – Intel® Xeon® E platform

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) 2U Rack Server
750 mm x 444 mm x 88 mm
MB Size (WxL) N/A
Processor AMD EPYC™ 7000 Series
Chipset System On Chip
SAS Controller SAS Controller :
3008 8-port SAS HBA card(Optional)
3108 8-port SAS HW RAID card(Optional)
12G SAS Support
Memory Total Slots : 32 (8-channel per CPU, 16 DIMM per CPU)
Capacity : Maximum up to 4096GB LR-DIMM 3DS
Memory Type :
DDR4 3200/2933/2666 RDIMM
DDR4 3200/2933/2666 LRDIMM
DDR4 3200/2933/2666 LR-DIMM 3DS
Drive Bay 24 x 2.5″ Hot-swap Storage Bays
(24 x SATA/SAS support via HBA/RAID Card)
Onboard Storage Device SATA Controller :
24 x SATA3 6Gb/s ports
2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link)
HDD Backplane 1 x 12-port 12Gb SAS backplane
PCIe Expansion Slot 6 x PCI-E x16 (Gen3 x8 link) , FH, HL
1 x PCI-E x16 (Gen3 x16 link), LP
1 x PCI-E x16 (Gen3 x8 link), FH, HL
1 x OCP Mezz. 2.0 Slot (x16 Link)
PCI Interface x8 PCI Express* 3.0
Network Controllers 1 x Dual Port Intel Ethernet Controller i350-AM2
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500
Integrated Graphics Aspeed AST2500 with 64MB VRAM
I/O Rear Switch/LED:
1 x Power switch
1 x Q-Code/Port 80 LED
1 x Location LED
1 x Message LED
1 x Storage device LED
2 x USB 3.1 Gen 1 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port

Front Switch/LED:
1 x Power switch/LED
1 x Location LED
1 x Message LED
1 x Storage device LED
LAN 1-2 LED

Power Supply Unit 1+1 Redundant 800W/1200W 80 PLUS Platinum Power Supply
Rating: 100-120/200-240Vac, 9.4A/4.72A (x2), 50/60Hz Class I
(240Vdc, 4.6A only for China)
Rating: 100-127/200-240Vac, 10A/8A (x2), 50/60Hz Class I
Operating Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% (Non condensing)
Warranty Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

The ServerWare® ST2E-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

The ServerWare® ST2E-A Server provides you with the choice to scale as you grow. A single socket system, based onAMD EPYC™ 7001/7002* Series Processor
Up to 32 Cores delivers peak performance for data centers that need a robust, flexible and cost effective computing needs..

Realize reliability, durability and performance that make this server ideal for versatile needs in a  datacenter, cloud, SMB, embedded, and storage & security appliance applications.

AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec
Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, biqmind
Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, biqmind
AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec

serverware

Powered by the latest 2nd Gen Intel Xeon Scalable processors

The ServerWare® ST2E Server System built on theAMD EPYC™ 7001/7002* Series Processor Up to 32 Cores to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generations.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Enable latency reduction and increased bandwidth, while reducing power consumption.In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster.

Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

serverware

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2E-A features a 12 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes.  HW RAID SAS 12G and Intel® Xeon®  processors with support for up to 512GB of DDR4 memory, dual 1Gbe and  four free PCI Express expansion slots, the ST2E-A has the ability to support the maximum amount of expansion cards while still offering a very small 2U form factor.

The ServerWare® SG2E-A Specifications

The ServerWare® ST2E-A is based onAMD EPYC™ 7001/7002* Series Processor
Up to 32 Cores designed for high performance and reliability. With support for eight  DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST2E-A  delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2E -A

System Specifications

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) 2U Rack Server
645mm x 483mm x 88mm
MB Size (WxL) 305mm x 244mm
Processor Single AMD EPYC™ 7001/7002* Series Processor
Up to 64 Cores
Chipset System On Chip
SAS Controller LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay (12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device 16 SATA3 (6 Gbps) ports
HDD Backplane 1 x 12-port 12Gb SAS backplane expander
PCIe Expansion Slot 3 PCI-E 3.0 x16
3 PCI-E 3.0 x8
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
PCI Interface PCI Express* 3.0
Network Controllers 2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500
Integrated Graphics BMC integrated Aspeed AST2500
Front I/O (1) Power button
(1) Reset button
(1) USB3
Power Supply Unit 800W 1+1 redundant PSU 80+ Platinum
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH
Warranty Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

The ServerWare® ST3E-A 3U Server System

The Very Defintion of a Mainstream Storage Server Meeting the Needs of Cloud Storage

The ServerWare® ST3E-A is a 3U storage server that features 16 hot-swap hard drive bays for data storage and 2 additional rear bays for the OS drives. The ST3E-A features an integrated LSI 3108 SAS 12G HW ROC Raid Controller and AMD EPYC™ 7001/7002* Series Processor Up to 32 Cores. With support for up to 512GB of DDR4 memory, dual 10GbE and dual 1GbE LAN ports, three PCI Express 3.0 expansion slots, and 16 HDD in only 3U of space,

serverware Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, biqmind
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, biqmind

serverware

Single large scale storage servers for scaling up and scaling out

The ServerWare® ST3E Server System provides for 16 HDD bays allowing you to build a massive capacities of up to 256TB raw data space.
Comes with an option of a LSI Hardware RAID controller to manage redundancy of data or a Zero RAID controller to manage data through software defined.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Enable latency reduction and increased bandwidth, while reducing power consumption.In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster.

serverware

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST3E features a 16 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes.  HW RAID SAS 12G and Intel® Xeon®  processors with support for up to 1TB of DDR4 memory, quad 1Gbe and  four free PCI Express expansion slots, the ST3E has the ability to support the maximum amount of expansion cards while still offering a very small 3U form factor.

The ServerWare® ST3E-A Specifications

The ServerWare® ST3E-A is based onAMD EPYC™ 7001/7002* Series Processor Up to 32 Cores designed for high performance and reliability. eight  DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST3E-A  delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST3E -A

System Specifications

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) 3U Rack Server
645mm x 483mm x 132mm
MB Size (WxL) 305mm x 244mm
Processor Single AMD EPYC™ 7001/7002* Series Processor
Up to 64 Cores
Chipset System On Chip
SAS Controller LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay (16) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device 16 SATA3 (6 Gbps) ports
HDD Backplane 1 x 16-port 12Gb SAS backplane expander
PCIe Expansion Slot 3 PCI-E 3.0 x16
3 PCI-E 3.0 x8
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
PCI Interface PCI Express* 3.0
Network Controllers 2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500
Integrated Graphics BMC integrated Aspeed AST2500
Front I/O (1) Power button
(1) Reset button
(2) USB3
Power Supply Unit 800W 1+1 redundant PSU 80+ Platinum
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH
Warranty Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

The ServerWare® ST4E-A 2U Server System

Redefining Server Computing Needs Challenges.Balancing performance between Compute and Storages

The ServerWare® ST4E-A Server provides you with the choice to scale as you grow. A single socket system, based on AMD EPYC™ 7001/7002* Series Processor
Up to 32 Cores delivers peak performance for data centers that need a robust, flexible and cost effective computing needs..

Realize reliability, durability and performance that make this server ideal for versatile needs in a  datacenter, cloud, SMB, embedded, and storage & security appliance applications.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
serverware Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

serverware

Powered by the latest 2nd Gen Intel Xeon Scalable processors

The ServerWare® ST2E Server System built on theAMD EPYC™ 7001/7002* Series Processor Up to 32 Cores to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generations.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Enable latency reduction and increased bandwidth, while reducing power consumption.In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster.

Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

serverware

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2E-A features a 12 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes.  HW RAID SAS 12G and Intel® Xeon®  processors with support for up to 512GB of DDR4 memory, dual 1Gbe and  four free PCI Express expansion slots, the ST2E-A has the ability to support the maximum amount of expansion cards while still offering a very small 2U form factor.

The ServerWare® ST4E-A Specifications

The ServerWare® ST4E-A is based onAMD EPYC™ 7001/7002* Series Processor
Up to 32 Cores designed for high performance and reliability. With support for eight  DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST4E-A  delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST4E -A

System Specifications

DESCRIPTION SPECIFICATIONS
Form Factor (LxWxH) 4U Rack Server
645mm x 483mm x 176mm
MB Size (WxL) 305mm x 244mm
Processor Single AMD EPYC™ 7001/7002* Series Processor
Up to 64 Cores
Chipset System On Chip
SAS Controller LSI 3108 SAS3 (12G) controller 2GB cache
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Drive Bay (24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device 16 SATA3 (6 Gbps) ports
HDD Backplane 1 x 24-port 12Gb SAS backplane expander
PCIe Expansion Slot 3 PCI-E 3.0 x16
3 PCI-E 3.0 x8
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
PCI Interface PCI Express* 3.0
Network Controllers 2x RJ45 Gigabit I210 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500
Integrated Graphics BMC integrated Aspeed AST2500
Front I/O (1) Power button
(1) Reset button
(2) USB3
Power Supply Unit 1200W 1+1 redundant PSU 80+ Platinum
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH
Warranty Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support
